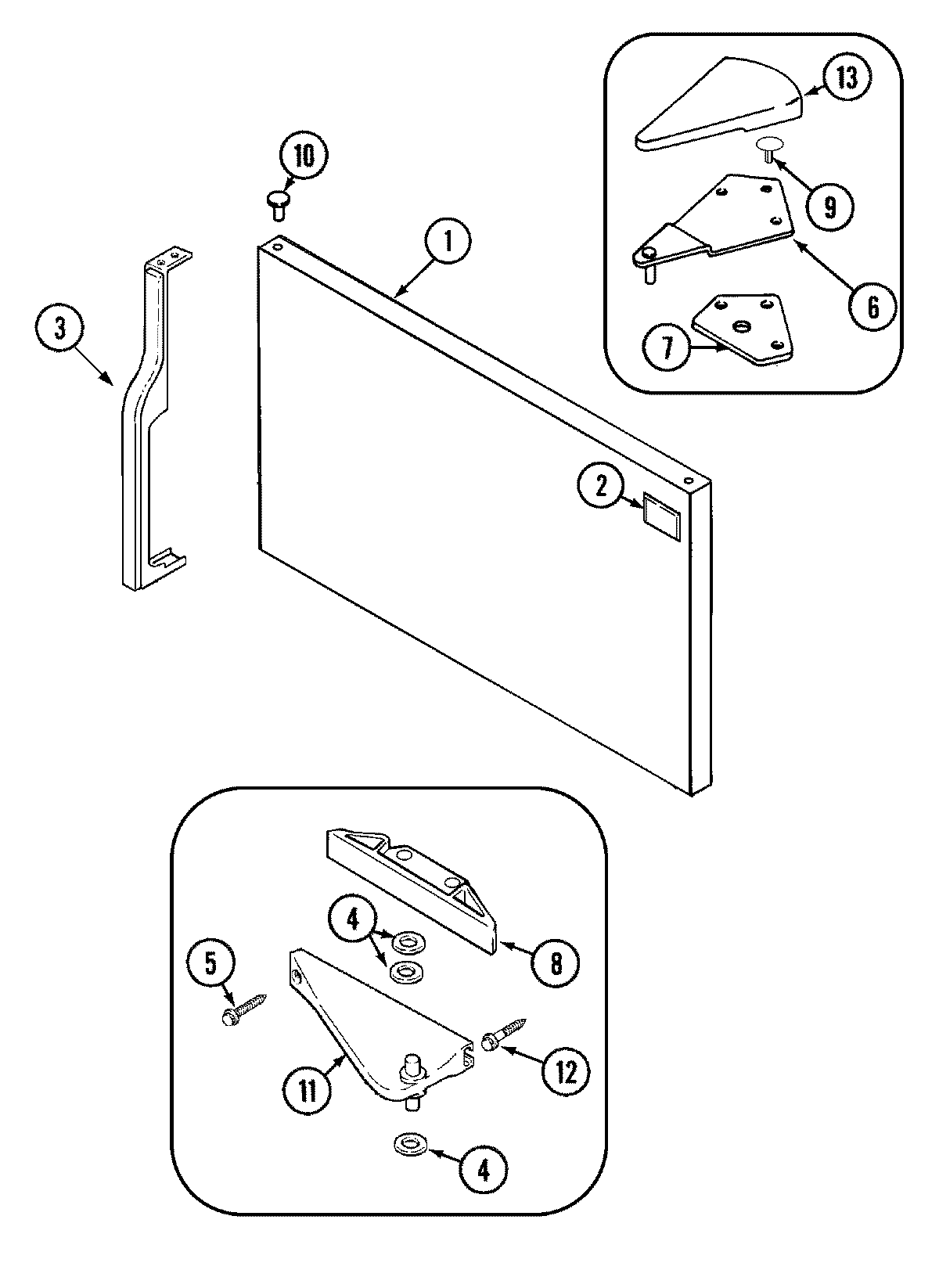

CTF2125GRW 07 – FREEZER OUTER DOOR (REV.12)

CTF2125GRW 07 – FREEZER OUTER DOOR (REV.12)

Written by

in

CTF2125GRW 07 – FREEZER OUTER DOOR (REV.12)

Products

PositionProduct
1MAY 61005741
1MAY 61002552
2MAY 66982-31
361005399 Whirlpool Refrigerator White Door Handle
3MAY 61001795
4WP61002231 Whirlpool Refrigerator Washer Hinge
6MAY 61004896
63400112 Whirlpool Refrigerator Screw
7MAY 61001922
8MAY 61004481
8W10856122 Whirlpool Refrigerator Screw
9MAY 61001923
10MAY 61001908
11MAY 61001920
12MAY 61002025
13MAY 61002076
