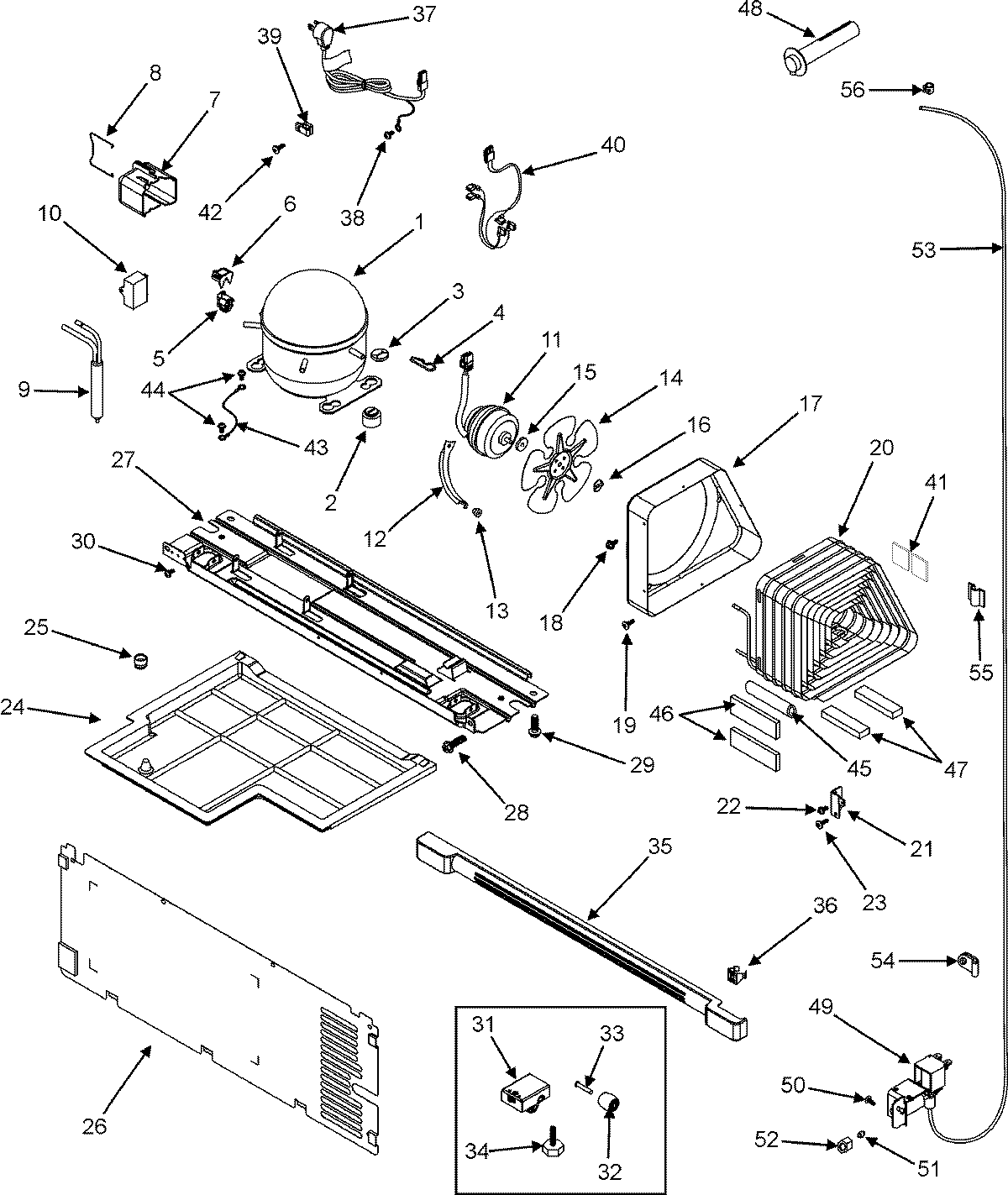

CTF2126ARB 01 – COMPRESSOR

Products

Position	Product
1	W10309989 Whirlpool Refrigerator Compressor
2	MAY 63001006
3	MAY 63001007
4	MAY 63001008
7	MAY 63001013
8	MAY 63001014
9	WPW10143759 Whirlpool Dryer Filter
10	MAY 63001005
11	MAY 63001575
12	MAY 63001020
12	MAY 63001092
13	MAY 63001017
14	MAY 63001018
15	MAY 63001576
16	MAY 63001577
17	MAY 63001015
18	MAY 63001094
19	MAY 63001093
20	MAY 63001778
21	MAY 63001023
24	MAY 63001573
25	MAY 63001022
26	MAY 63001574
26	MAY 63001099
27	SEE NOTE GROUND WIRE, GREEN
28	MAY 63001251
29	MAY 63001252
31	MAY 63001443
31	MAY 56001210
32	MAY 63001001
33	MAY 63001002
34	MAY 63001025
35	MAY 63001658
36	MAY 63001351
37	MAY 63001570
38	MAY 63001571
39	MAY 63001346
40	MAY 63001012
41	MAY 63001427
42	MAY 63001572
43	MAY 63001011
44	MAY 63001091
45	MAY 63001424
46	MAY 63001425
47	MAY 63001426
48	MAY 61005940
49	WP61005273 Whirlpool Refrigerator Inlet Valve
50	MAY 61002819
51	WP487627 Whirlpool Refrigerator Sleeve
52	WP245183 Whirlpool Nut
53	MAY 67579-26
54	W10833902 Whirlpool Refrigerator Clamp
55	MAY 61004913
56	WPM0114003 Whirlpool Microwave Speed Clip Clamp
