CTF21EBDR 1

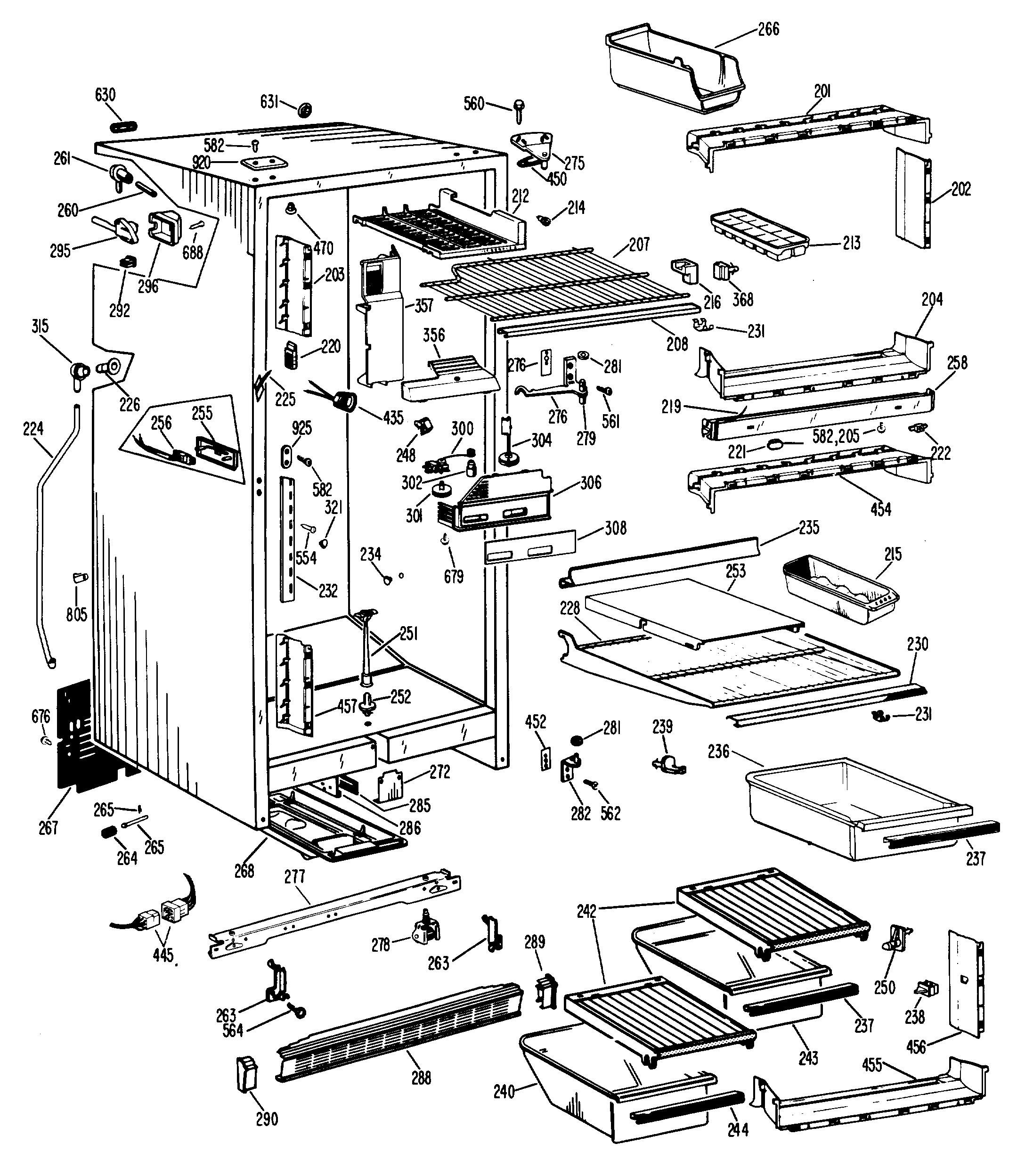

Products

Position	Product
201	BREAKER STRIP-TOP-FRZ.
201	GASKET CORNER
202	BRKR STRIP R SIDE FRZ RH
203	BRKR. STRIP L. SIDE-FRZ.
204	CLIP (EXPANSION) – BRKR.
204	BREAKER STRIP BTM.-FRZ.
205	SCREW MULLION 10-16X3/8
207	GEN WR71X5890
208	GEN WR38X5213
213	WR30X311 GE Refrigerator Ice Tray
214	GEN WR02X6110
215	BUCKET EGG
216	GEN WR02X6264
219	GEN WR51X5199
221	GEN WR02X4922
222	GROMMET DOOR STOP
224	GEN WR17X1400
225	HEAT CASE
226	GEN WR02X4516
230	TRIM SHELF
231	GEN WR02X3440
232	GEN WR72X0063
234	PLUG BUTTON-LNR. SIDE (.
235	CIIP – TRIM
235	GEN WR38X5211
236	GEN WR32X5253
237	GEN WR17X6004
238	SWITCH LIGHT
239	SUPPORT-REAR-VEG. PANS
240	GEN WR32X5254
242	GEN WR32X0604
243	GEN WR32X5255
244	GEN WR02X7045
244	GEN WR17X6003
248	SUPPORT-REAR
250	SUPPORT COVER
251	GEN WR02X4899
252	SUPPORT POST
253	GEN WR32X0681
255	GEN WR04X5062
256	SWITCH POWER SAVER
256	GEN WR02X4677
258	MULLION X-PCS.
260	TUBE WATER FILL (2.5")
261	GROMMET-O.C. WATER FILL
263	GEN WR02X4098
263	GEN WR02X4099
264	WR2X3594 GE Refrigerator Wheel
265	GEN WR02X3595
265	GEN WR02X3598
266	GEN WR30X5105
267	COVER ACCESS ASM
268	PAN WATER DISPOSAL ASM
272	COVER
275	HINGE TOP & PIN ASM
276	GEN WR13X5133
276	NUTSTRIP TOP HINGE
276	GEN WR02X6281
277	RAIL MACH MTG FRT
278	WHEEL ASM FRT
279	GEN WR02X7063
281	GEN WR01X1600
281	WASHER
282	GEN WR13X0519
285	BAFFLE AIR EXTN BTM
286	BAFFLE AIR COND FAN
288	GRILLE O.CASE(BRN)
289	GEN WR02X6383
290	CAP GRILLE L. SIDE
292	GEN WR01X1326
295	GEN WR23X0162
296	PLUG BUTTON FILL TUBE
296	COVER IM RECEPTACLE
300	CONTROL TEMP
301	SLEEVE-CONTROL BULB
301	GEN WR02X4510
302	GEN WR02X3613
304	KNOB & SHAFT DAMPER
306	GEN WR17X1211
308	INSERT CONT HOUSING
315	GEN WR02X4626
321	GEN WR02X4532
356	GRILLE-FRZ. OUTLET
357	GEN WR17X5661
368	GEN WR02X6263
435	SOCKET LAMP
445	R-E-D SERVICE PKG.
450	GEN WR02X4194
452	GEN WR02X7011
452	SHIM HINGE BTM.
454	BREAKER STRIP-TOP-FF
455	BREAKER STRIP-BTM.-FF
456	BREAKER STRIP R. SIDE FF
457	BRKR. STRIP-L. SIDE-FF-R
470	WR2X3139 GE Refrigerator Plug Button
554	GEN WR01X1483
560	GEN WR01X1249
561	SCR 12-24 HXW 7/8 S PP
562	SCR 12-24 TT HXW 1 3/64S
564	GEN WR01X1194
582	GEN WR01X1571
630	WR2X4097 GE Button Plug
631	SHIM HINGE BTM.
