CTF21GAD 1

CTF21GAD 1

Written by

in

CTF21GAD 1

Products

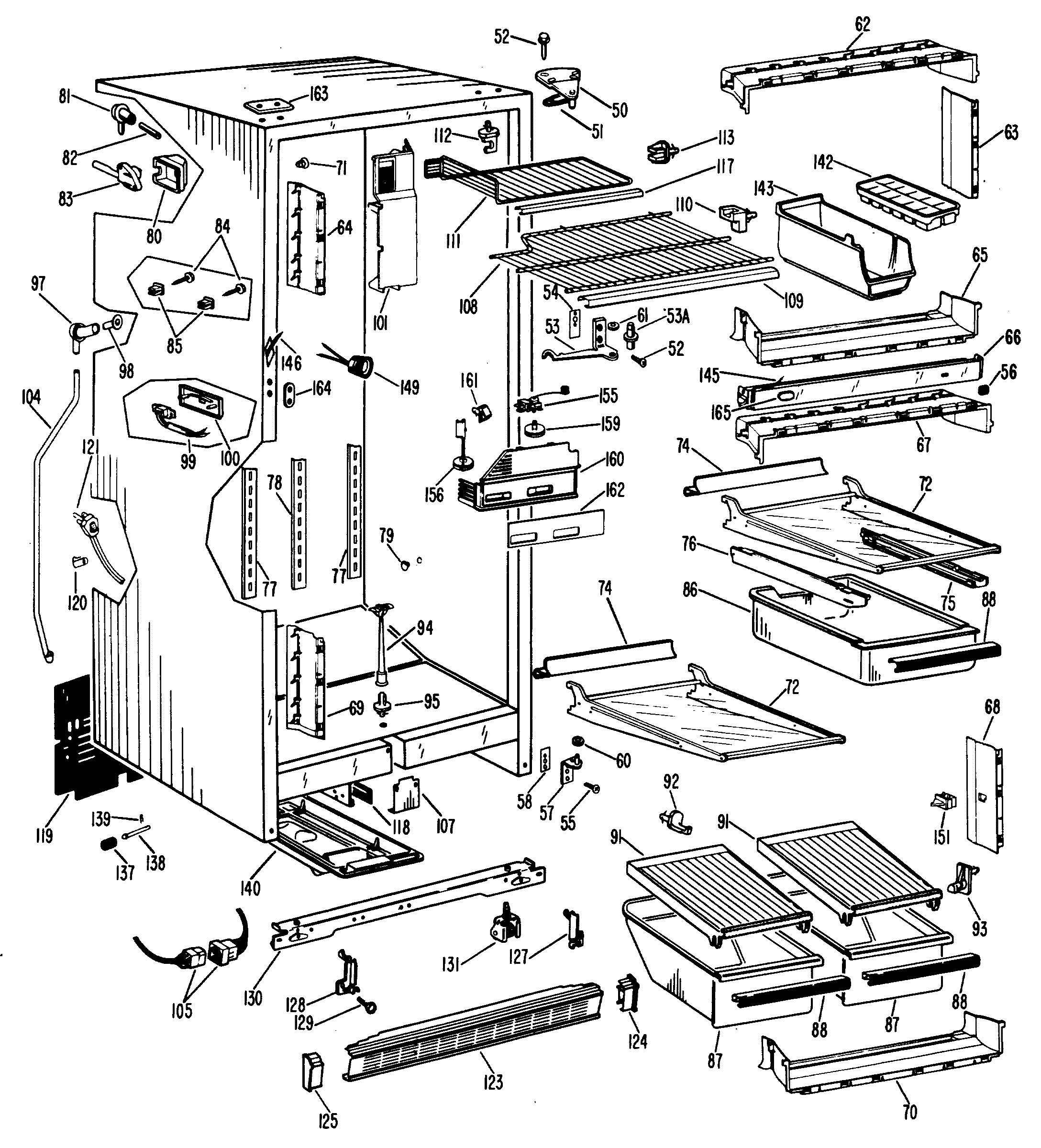

PositionProduct
11GEN WR02X6288
50HINGE TOP & PIN ASM
50NUTSTRIP TOP HINGE
51GEN WR02X4194
52GEN WR01X1249
53GEN WR02X6280
53GEN WR01X4400
53GEN WR13X5133
54GEN WR02X6281
55SCR 12-24 TT HXW 1 3/64S
56GROMMET DOOR STOP
57POP RIVET
57GEN WR13X0519
57NUT STRIP
58GEN WR02X7011
60GEN WR01X1114
60WASHER
62GASKET CORNER
62BREAKER STRIP-TOP-FRZ.
63BRKR STRIP R SIDE FRZ RH
64BRKR. STRIP L. SIDE-FRZ.
65BREAKER STRIP BTM.-FRZ.
66BRACKET-MULLION
66SCREW MULLION 10-16X3/8
66GASKET-MULLION
66MULLION X-PCS.
66RIVET POP
67CLIP (EXPANSION) – BRKR.
67BREAKER STRIP-TOP-FF
68BREAKER STRIP R. SIDE FF
68CLIP-SUCTION LINE
69BRKR. STRIP-L. SIDE-FF-R
70BREAKER STRIP-BTM.-FF
71WR2X3139 GE Refrigerator Plug Button
72GEN WR71X5881
74GEN WR38X5263
75GEN WR17X1515
76GEN WR17X1516
77GEN WR72X0063
78GEN WR01X1483
78TRACK-CENTER
79PLUG BUTTON-LNR. SIDE (.
80GEN WR02X1326
80COVER IM RECEPTACLE
80SCR 8-15 A PA 3/4 SS
81GEN WR02X3248
81GROMMET-O.C. WATER FILL
82TUBE WATER FILL (2.5")
83WZ4X241D GE Screw Package
83GEN WR23X0162
84GEN WZ04X0244
86GEN WR32X5238
87GEN WR32X5228
88HANDLE PAN
91GEN WR32X0604
92SUPPORT-REAR-VEG. PANS
93SUPPORT COVER
94GEN WR02X4899
95SUPPORT POST
97GEN WR02X4628
97GEN WR02X4626
98DRAIN SPOUT-CN-C
99SWITCH POWER SAVER
100GEN WR04X5062
100GEN WR02X4990
101GEN WR45X5044
101GEN WR17X5661
101GEN WR01X1326
101SCR 8-18 BAT TR 3/4SSPLW
104GEN WR02X4516
104GEN WR17X1400
105R-E-D SERVICE PKG.
107SCR 8-18 AB TR 5/8SS PLW
107COVER
108GEN WR71X5890
109GEN WR02X3440
109GEN WR38X5213
109GEN WR02X6110
110GEN WR02X6264
110GEN WR02X6263
112GEN WR02X6259
113SUPPORT SHELF
117CIIP – TRIM
117GEN WR38X5214
118BAFFLE AIR EXTN BTM
118GEN WR02X3863
118BAFFLE AIR COND FAN
119COVER ACCESS ASM
119GEN WR01X5427
119WD2X5166 GE Dishwasher Screw
120WR1X5278 GE Refrigerator Cable Clamp
121WR23X10300 GE Refrigerator Power Cord Assembly
123GEN WR79
