CTM1521GRW 11 – OPTIONAL ICE MAKER KIT-UKI1500AXX

CTM1521GRW 11 – OPTIONAL ICE MAKER KIT-UKI1500AXX

Written by

in

CTM1521GRW 11 – OPTIONAL ICE MAKER KIT-UKI1500AXX

Products

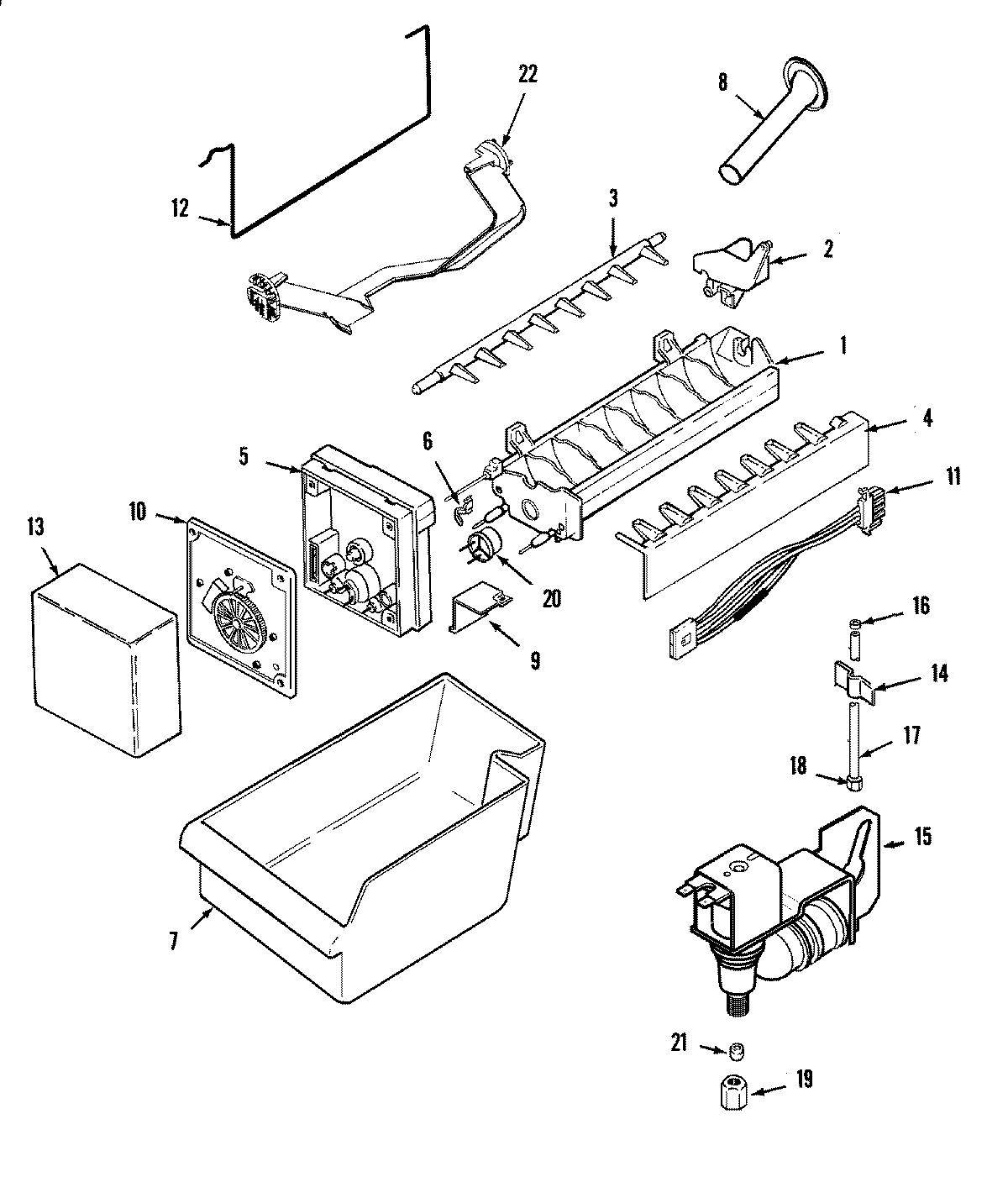

PositionProduct
1D7824706Q Whirlpool Refrigerator Ice Maker Assembly
1WP99003172 Whirlpool Silicone L
2WP628356 Whirlpool Refrigerator Fill Cup
3WP627843 Whirlpool Refrigerator Ejector Arm
4WP2182124 Whirlpool Refrigerator Stripper Arm
5WP2195914 Whirlpool Refrigerator Ice Maker Housing
5SCREW
6WP2315522 Whirlpool Refrigerator Clip
7MAY 61001886
8MAY 61001888
9BRACKET, MODULE & HEATER
9MAY 95108-1
10MAY 400021-1
10MAY 95109-1
11MAY 61001882
12MAY 61005175
12MAY 61005173
13MAY 61004594
14MAY 61004913
14W10833902 Whirlpool Refrigerator Clamp
14SCREW
15WP61005273 Whirlpool Refrigerator Inlet Valve
15MAY 61002819
16WPM0114003 Whirlpool Microwave Speed Clip Clamp
17MAY 61003021
18WP627018 Whirlpool Refrigerator Nut
19WP245183 Whirlpool Nut
20WP627985 Whirlpool Icemaker Cycling Thermostat
20MAY 95093-1
21WP487627 Whirlpool Refrigerator Sleeve
22MAY 61005174
