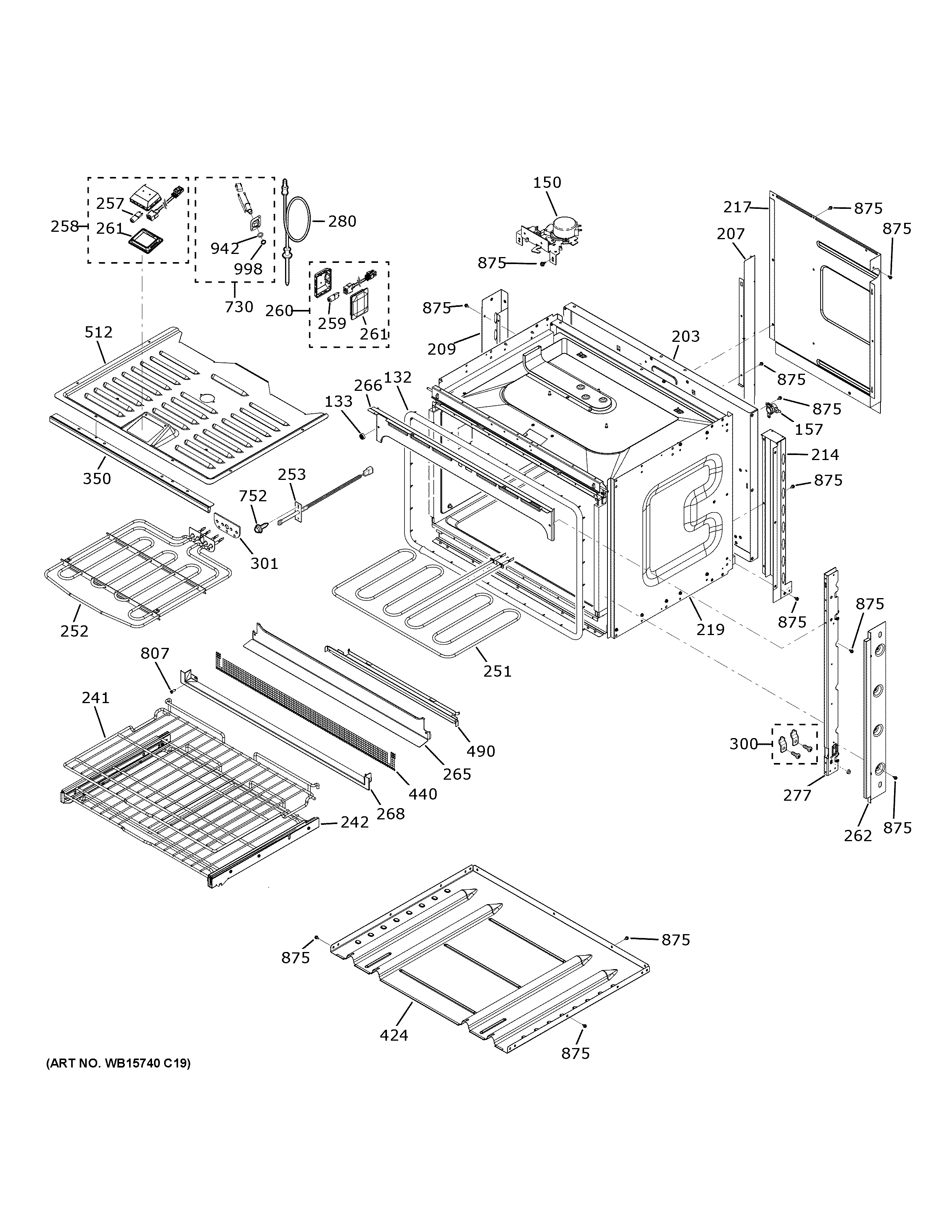

CTS70DP2N5S1 BODY PARTS

Products

PositionProduct
132WB35X32825 GE Oven Door Gasket
133WB03T10341 GE Oven Door Bumper
150LATCH ASM
157HIGH LIMIT SWITCH
203WB34X40468 GE Insulation Retainer – Rear
207WB34T10134 GE Center Air Divider
209CHANNEL REAR
214WB55X10971 GE Rear Channel
217WB34T10136 GE Upper Rear Duct Cover
219WB34X21913 GE Side Insulation Retainer
241WB48X31582 GE Oven Rack
242WB48X38086 GE Oven Rack Slide Assembly
251HIDDEN BAKE ELEMENT
252BROIL ELEMENT
253SENSOR ASM
257WB25T10102 GE Oven Top-Mounted Halogen Bulb G9
258WB25X31221 GE Oven Halogen Lamp Assembly
259WB25T10101 GE Oven Halogen Lamp Bulb G9
260WB25X31222 GE Halogen Lamp Assembly
261WB34X31317 GE Oven Light Lens
262STAINLESS TRIM VERT SIDE (SWO)
265WB07X21187 GE Oven Lower Vent Trim
266WB07X32831 GE Upper Trim Vent
268WB07T10786 GE Oven Bottom Cabinet Trim
277WB07T10754 GE Oven Vertical Right Brace Black
277WB07X35692 GE Left Vertical Brace
280WB20T10024 GE Oven Thermistor Probe
300WB49X21652 GE Oven Hinge Bracket Assembly
301WB35X21972 GE Broil Element Gasket
350GEN WB07T10787
424WB56X43352 GE Air Duct Bottom Cover
440SCREEN SUPPORT
490WB55T10197 GE Oven Hidden Bake Cover
512WB37T10024 GE Oven Top Plate
730WB18X23585 GE Oven Meat Probe and Harness
752WB01X21742 GE Screw
807WB01X32746 GE Oven Screw ST 8A8 X .625 TR NI
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
998WB1X5572 GE Oven Nut
