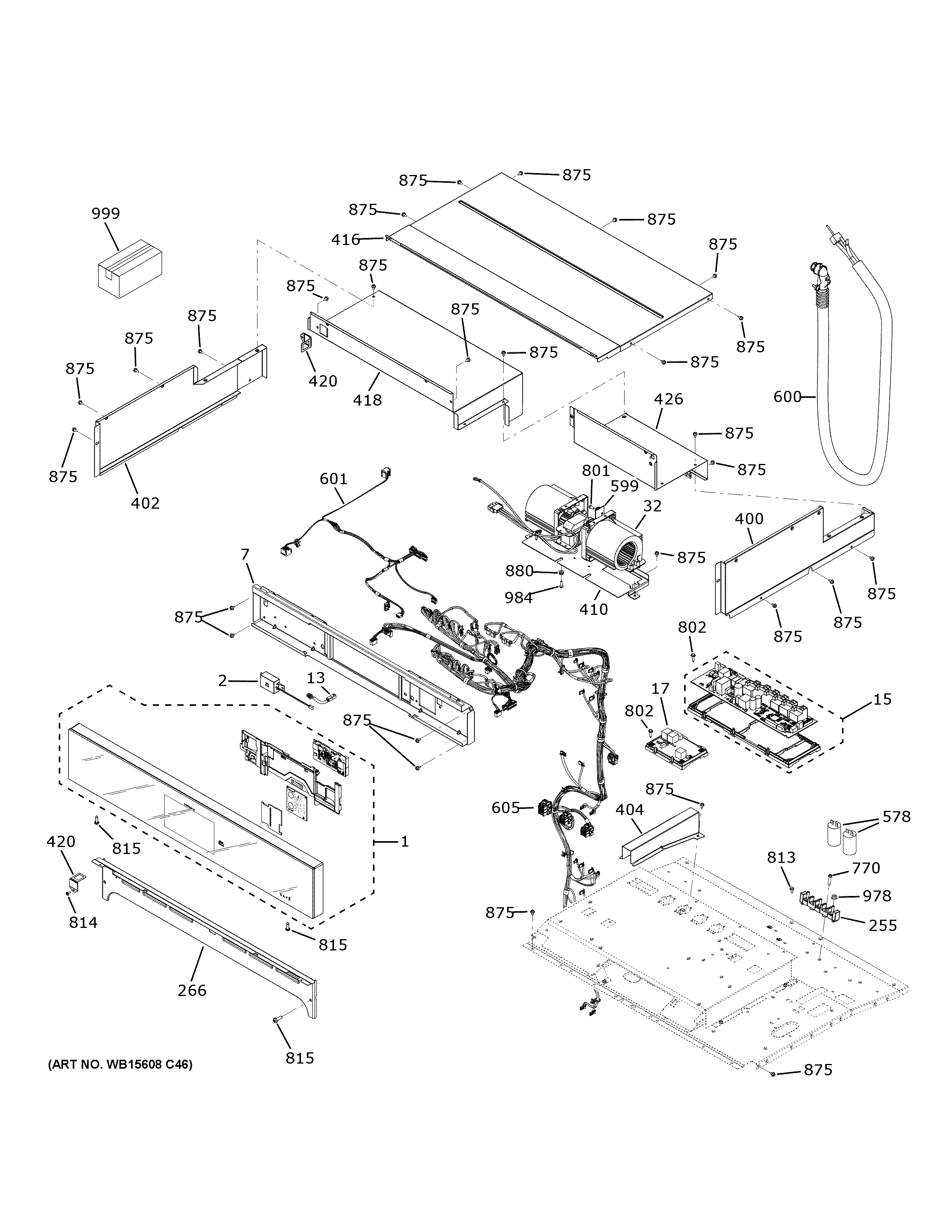

CTS90DM2N4S5 CONTROL PANEL

Written by

Products

Position	Product
1	CONTROL PANEL – STAINLESS
2	WB27X33354 GE Speaker 70C 3W
7	WB07X32471 GE Oven Control Panel Mounting BRack
13	WB18X30704 GE Jumper
15	RC17 CONTROL – FLASHED
17	WB27X34728 GE Frame and Relay Board
32	WB26X31060 GE Oven Blower Fan
255	WB17K10001 GE Oven Block Terminal
266	TRIM VENT UPPER
400	COVER TOP RIGHT EDGE
402	WB44T10126 GE Oven Top Left Edge Cover
404	WB34T10150 GE Upper Air Vent Channel
410	WB37T10026 GE Oven Upper Fan Mount Bracket
416	WB34X28390 GE Oven Front Cover Housing
418	WB24X32772 GE Top Rear Cover
420	WB24X33028 GE RJ45 Bracket
426	WB35T10273 GE Oven Rear Wire Cover
578	WB27T10662 GE Oven Capacitor
599	WB27T11463 GE Oven Fan Sensor Board
600	WB18X35246 GE Conduit Wire SWO
600	WB18T10578 GE Oven Optional 6 ft Conduit
601	UI COM AND RJ45 HARNESS
605	HARNESS MAIN
770	WB1K5072 GE Oven Screw
801	WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
802	WB01T10120 GE Screw 8-18 x 0.750 (Nickel)
813	WS02X10087 GE Screws 10-32 GX HXW 7/16 S
814	WB01T10012 GE Oven Screw
815	WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
875	WH2X930 GE Screw
880	WB01T10128 GE Grommet
978	WB1X1259 GE Hex Nut
984	WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999	PM OWNERS MANUAL
999	PM MINI MANUAL AND WIRING
999	PM INSERT INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM INSTALL INSTRUCTIONS
999	PM QUICK OWNERS MANUAL
999	PM INSERT INSTRUCTIONS
999	INSTRUCTION INSTALL
999	PM INSERT INSTRUCTIONS
999	WB02T10303 GE Cleaner Lubricant
999	PM INSERT INSTRUCTIONS
