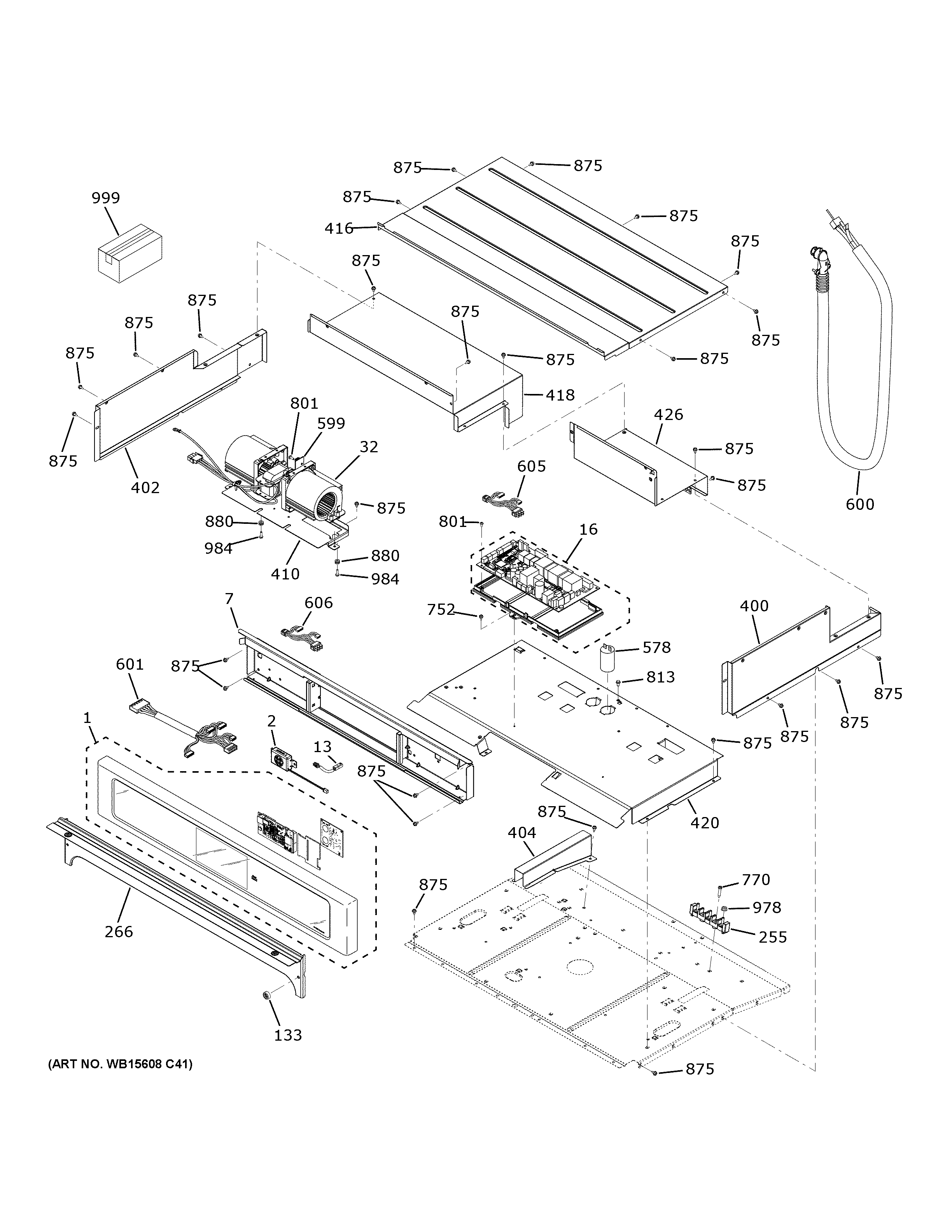

CTS90DP2N1S1 CONTROL PANELadmin2025-04-26T08:37:58+00:00CTS90DP2N1S1 CONTROL PANEL ProductsPositionProduct1WB27X40426 GE Stainless UI LCD Control2WB27X33354 GE Speaker 70C 3W7WB07X32471 GE Oven Control Panel Mounting BRack13WB18X30704 GE Jumper16WB27X43216 GE Control RC17 (Flashed)32WB26X31060 GE Oven Blower Fan133WB03T10341 GE Oven Door Bumper255WB17K10001 GE Oven Block Terminal266WB07X32831 GE Upper Trim Vent400COVER TOP RIGHT EDGE402WB44T10126 GE Oven Top Left Edge Cover404WB34T10150 GE Upper Air Vent Channel410WB37T10026 GE Oven Upper Fan Mount Bracket416WB34X28390 GE Oven Front Cover Housing418WB24X32772 GE Top Rear Cover420WB24X33028 GE RJ45 Bracket426WB35T10273 GE Oven Rear Wire Cover578WB27T10662 GE Oven Capacitor599WB27T11463 GE Oven Fan Sensor Board600WB18X35246 GE Conduit Wire SWO600WB18T10578 GE Oven Optional 6 ft Conduit601WB18X32919 GE COM Wire Harness605WB18X32920 GE Wire Main Harness606LATCH COM WIRE HARNESS752WB01X21742 GE Screw770WB1K5072 GE Oven Screw801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"813WS02X10087 GE Screws 10-32 GX HXW 7/16 S875WH2X930 GE Screw880WB01T10128 GE Grommet978WB1X1259 GE Hex Nut984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN999PM INSTALL INSTRUCTIONS999PM QUICK OWNERS MANUAL999PM OWNERS MANUAL999INSTRUCTION INSTALL999PM MINI MANUAL AND WIRING999MANUAL U&C TIP SHEET999PM INSTALL INSTRUCTIONS999WB02T10303 GE Cleaner Lubricant999PM INSTALL INSTRUCTIONS999PM INSTALL INSTRUCTIONS
