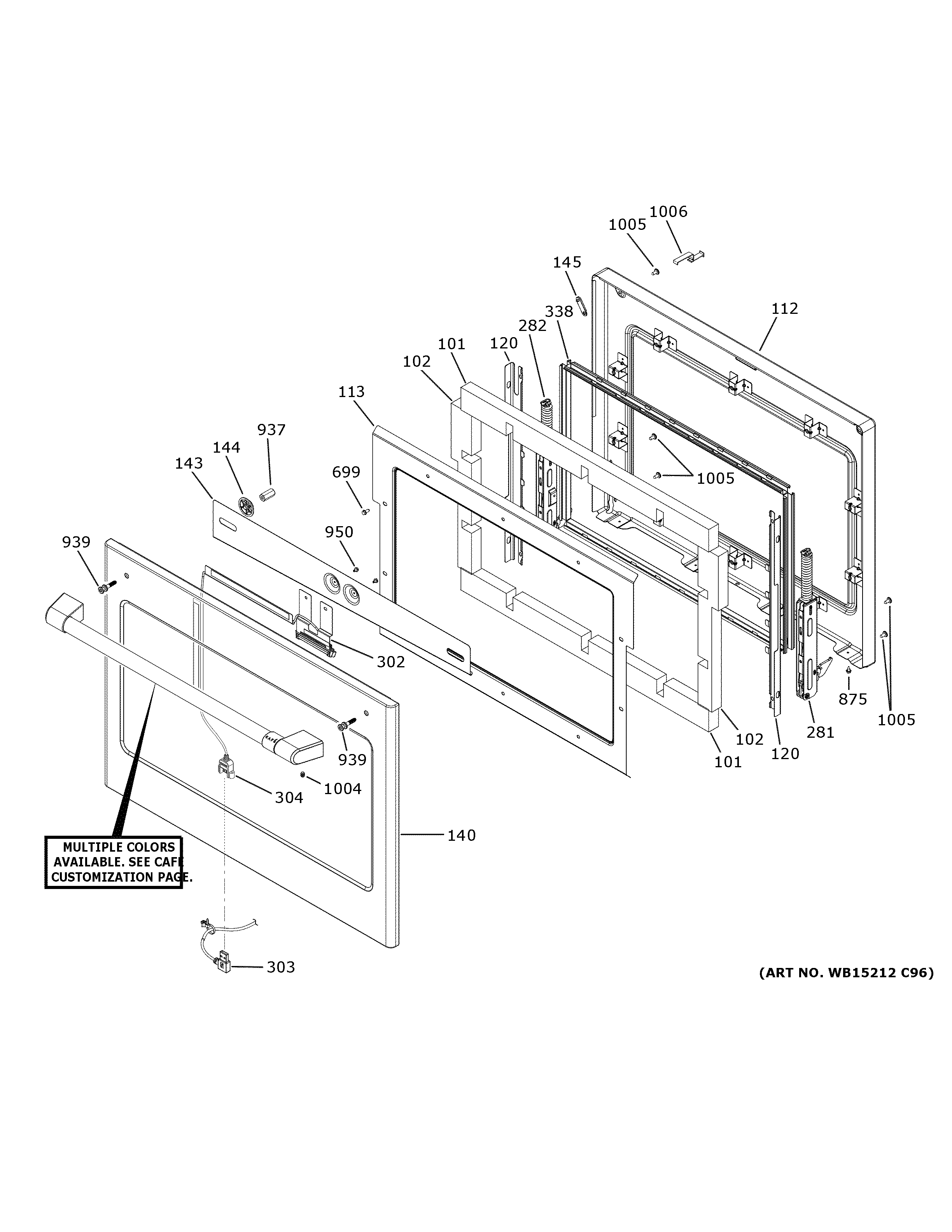

CTS90DP3N1D1 DOOR

Products

Position	Product
101	INSULATION DR TOP
102	WB35X31513 GE Door Side Insulation
112	WB63X32569 GE Oven Assembly Door Liner
113	WB34X31516 GE Door Insulation Retainer
120	LINER SUPPORT
140	OUTER DOOR ASSEMBLY
143	WB34X37051 GE Outer Door Glass Deflector
144	WB02T10524 GE Oven Door Handle Spacer
145	WB02X32816 GE Oven Door Liner Plug
281	WB10X37066 GE Right Door Soft Close Hinge
282	WB10X37049 GE Dishwasher Soft Close Hinge Left Door
302	WB34X34990 GE Camera Assembly
303	WB18X35000 GE Camera Wire Harness
304	WB18X35646 GE Door Wire Harness for Camera
338	WB56X27662 GE Window Pack Assembly
699	WB1M1 GE Oven Screw
875	WH2X930 GE Screw
937	WB01X31717 GE Oven Reinforcement Spacer
939	WB01X31573 GE Mounting Stud
950	GEN WB01X1178
1004	WR01X20424 GE Refrigerator Screw
1005	WB01T10008 GE Oven Screw 10-32
1006	WB01X41366 GE Dehydrate Door Stop
