CTS90FP3N2D1 CONTROL PANEL

CTS90FP3N2D1 CONTROL PANEL

Written by

in

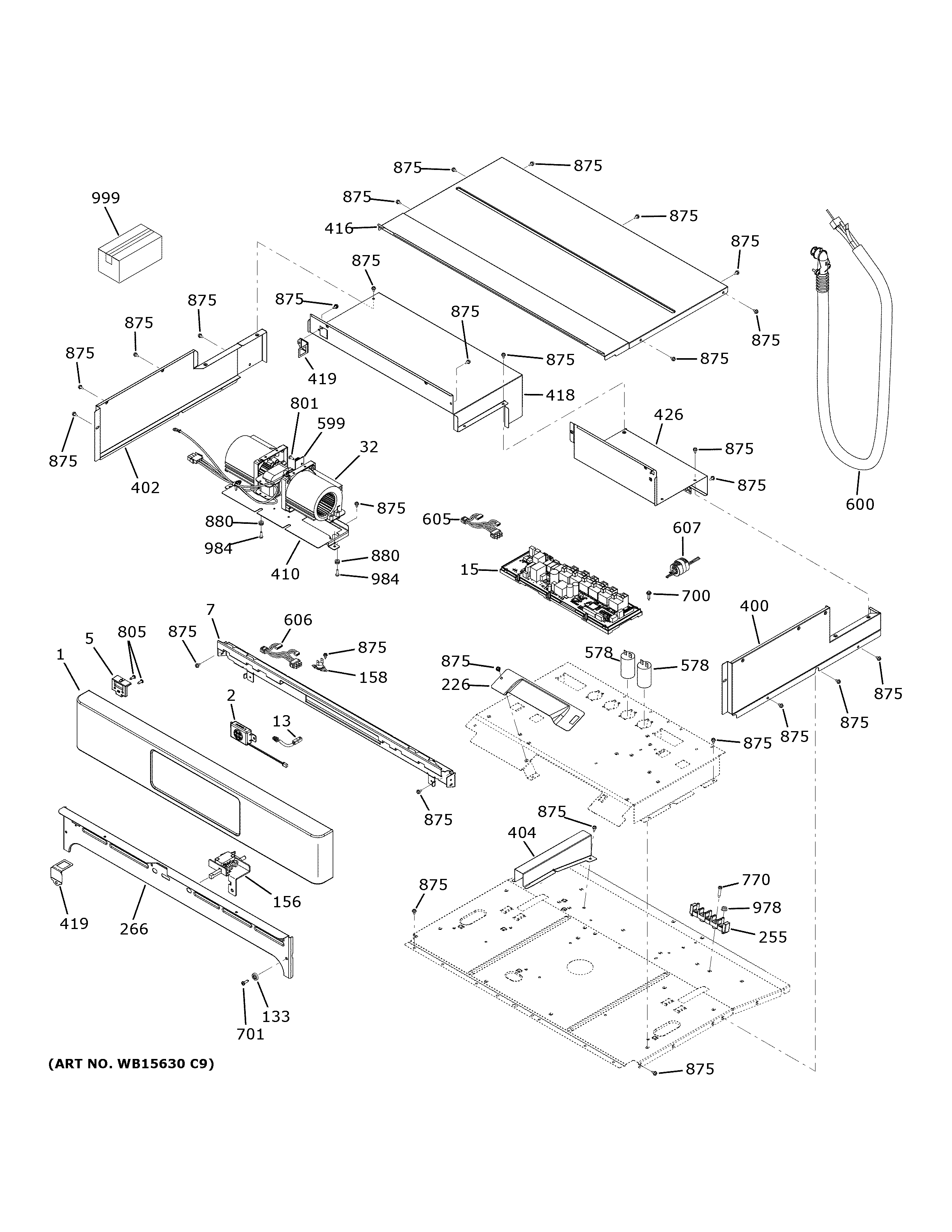

CTS90FP3N2D1 CONTROL PANEL

Products

PositionProduct
1WB56X40079 GE Control Panel
2WB27X33354 GE Speaker 70C 3W
5WB34X29268 GE Oven Control Panel Support Bracket
7WB34X28389 GE Oven Bracket Control Panel Mounting
13WB18X30704 GE Jumper
15WB27X43213 GE Control Assembly RC17 Flashed
32WB26X31060 GE Oven Blower Fan
133WB03T10341 GE Oven Door Bumper
156WB24X23760 GE Oven Switch Plate Assembly
158WB24X35587 GE Limit Switch
226COVER LATCH ACCESS
255WB17K10001 GE Oven Block Terminal
266TRIM VENT UPPER
400COVER TOP RIGHT EDGE
402WB44T10126 GE Oven Top Left Edge Cover
404WB34T10150 GE Upper Air Vent Channel
410WB37T10026 GE Oven Upper Fan Mount Bracket
416WB34X28390 GE Oven Front Cover Housing
418WB24X32772 GE Top Rear Cover
419WB24X33028 GE RJ45 Bracket
426WB35T10273 GE Oven Rear Wire Cover
578WB27T10662 GE Oven Capacitor
599WB27T11463 GE Oven Fan Sensor Board
600WB18X35246 GE Conduit Wire SWO
600WB18T10578 GE Oven Optional 6 ft Conduit
605WB18X32920 GE Wire Main Harness
606WB18X46488 GE Latch Wire Harness
607WB18X32919 GE COM Wire Harness
700WZ4X416 GE WZ04X0408
701WB01X21650 GE Screw 8-18 AB TRT20NBS 5/8
770WB1K5072 GE Oven Screw
801WD02X10129 GE Dishwasher Screw 8-18 AB HW 1/2"
805WB1K5062 GE Oven Screw
875WH2X930 GE Screw
880WB01T10128 GE Grommet
978WB1X1259 GE Hex Nut
984WB01T10130 GE Screw 7-19 1/4 HEX 1/2 IN
999PM MINI MANUAL AND WIRING
999PM INSTRUCTIONS INSTALL
999PM INSTALL INSTRUCTIONS
999PM OWNERS MANUAL
999PM INSTALL INSTRUCTIONS
999PM INSTRUCTIONS INSTALL
999WB02T10303 GE Cleaner Lubricant
999PM QUICK OWNERS MANUAL
