CTS92DM2N1S5 UPPER OVEN

CTS92DM2N1S5 UPPER OVEN

Written by

in

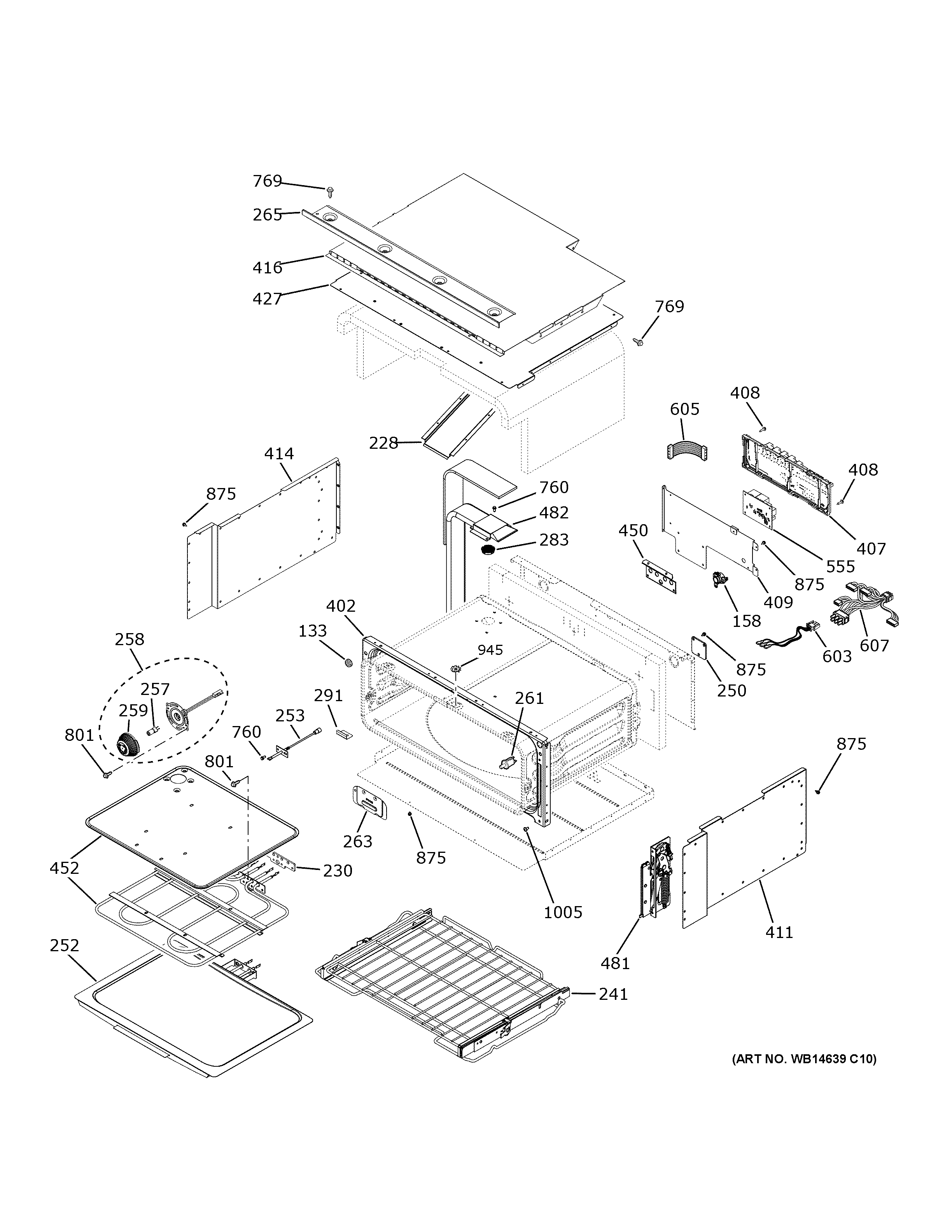

CTS92DM2N1S5 UPPER OVEN

Products

PositionProduct
133WB01T10022 GE Oven Door Bumper
158WB24X40646 GE High Limit Switch
228RETAINER LATCH
230GASKET INNER GLASS FIBER
241WB48X34693 GE Oven Rack Slide Assembly
250GASKET BACK LAMP
252HIDDEN BAKE ELEMENT 1700W
253WB21X22134 GE Oven Sensor Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X40248 GE Assembly Halogen Lamp
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
263PLATE BLACK COVER
265WB07T10650 GE Top Cabinet Trim (Black)
283WB38X33647 GE Smoke Eliminator
291GEN WB02X9152
402FRONT FRAME UPR
407WB27X43221 GE Control RC17 (Flashed)
408WZ4X416 GE WZ04X0408
409BRACKET RELAY BOARD
411RETAINER INSLN UPR SIDE
414RETAINER INSLN UPR SIDE
416COVER TOP
427RETAINER INSN UPR ASM
450WB02T10436 GE Upper Broil Back Plate
452WB44T10089 GE Oven Broil Shield Assembly
481WB10K10030 GE Hinge Assembly
481WB10K10031 GE Oven Hinge Assembly
482TUBE VENT ASM UPR
555WB27X29201 GE Oven Relay Board Daughter
603HARNESS WIRE PLUNGER
605WB18X34837 GE Upper Signal Harness
607HARNESS WIRE MAIN UPPER
760WB1X536 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB01M10002 GE Oven Screw
875WH2X930 GE Screw
945WB1K5046 GE Oven Washer
1005WB01T10008 GE Oven Screw 10-32
