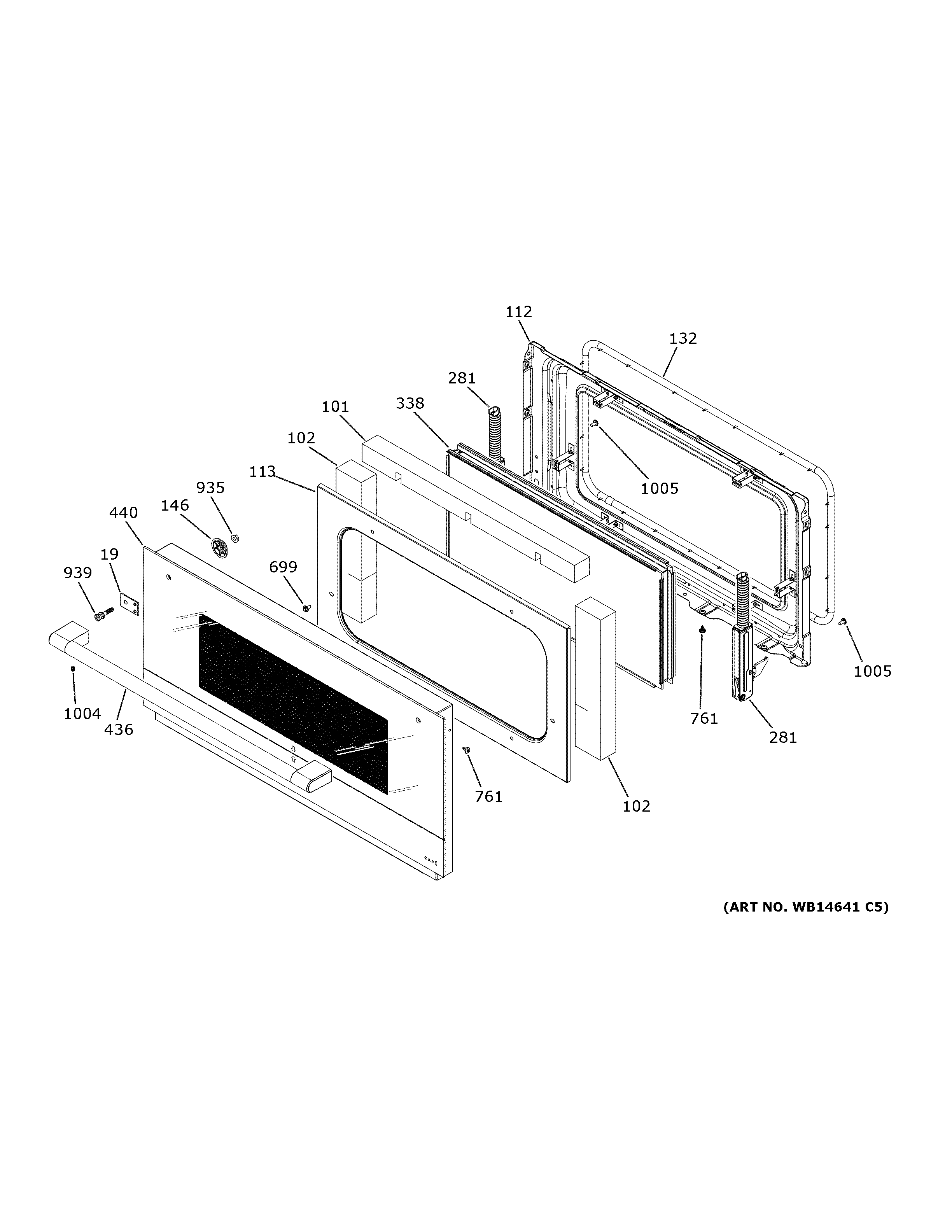

CTS92DM2N2S5 LOWER DOOR

CTS92DM2N2S5 LOWER DOOR

Written by

in

CTS92DM2N2S5 LOWER DOOR

Products

PositionProduct
19SPACER HANDLE
101WB35T10167 GE Oven Door Top Insulation Up
102WB35T10198 GE Oven Side Insulation
112WB56X27915 GE Oven Lower Door Liner Assembly
113WB02T10442 GE Oven Bottom Door Insulation Retainer
132WB35X27918 GE Oven Door Gasket
146SPACER DOOR HANDLE
281WB10X30497 GE Oven Left Door Hinge
281WB10X30496 GE Door Hinge Right
338WB56X27914 GE Window Pack Assembly
436STAINLESS HANDLE
440GLASS DOOR AND FRAME
699WB1M1 GE Oven Screw
761WB01T10110 GE Oven Screw 8-18 x .450 AB FLT20 S
935HEX NUT 1/4-20
939WB01X31573 GE Mounting Stud
1004WR01X11014 GE Refrigerator Set Screw
1005WB01T10008 GE Oven Screw 10-32
