CTS92DM2N2S5 LOWER OVEN

CTS92DM2N2S5 LOWER OVEN

Written by

in

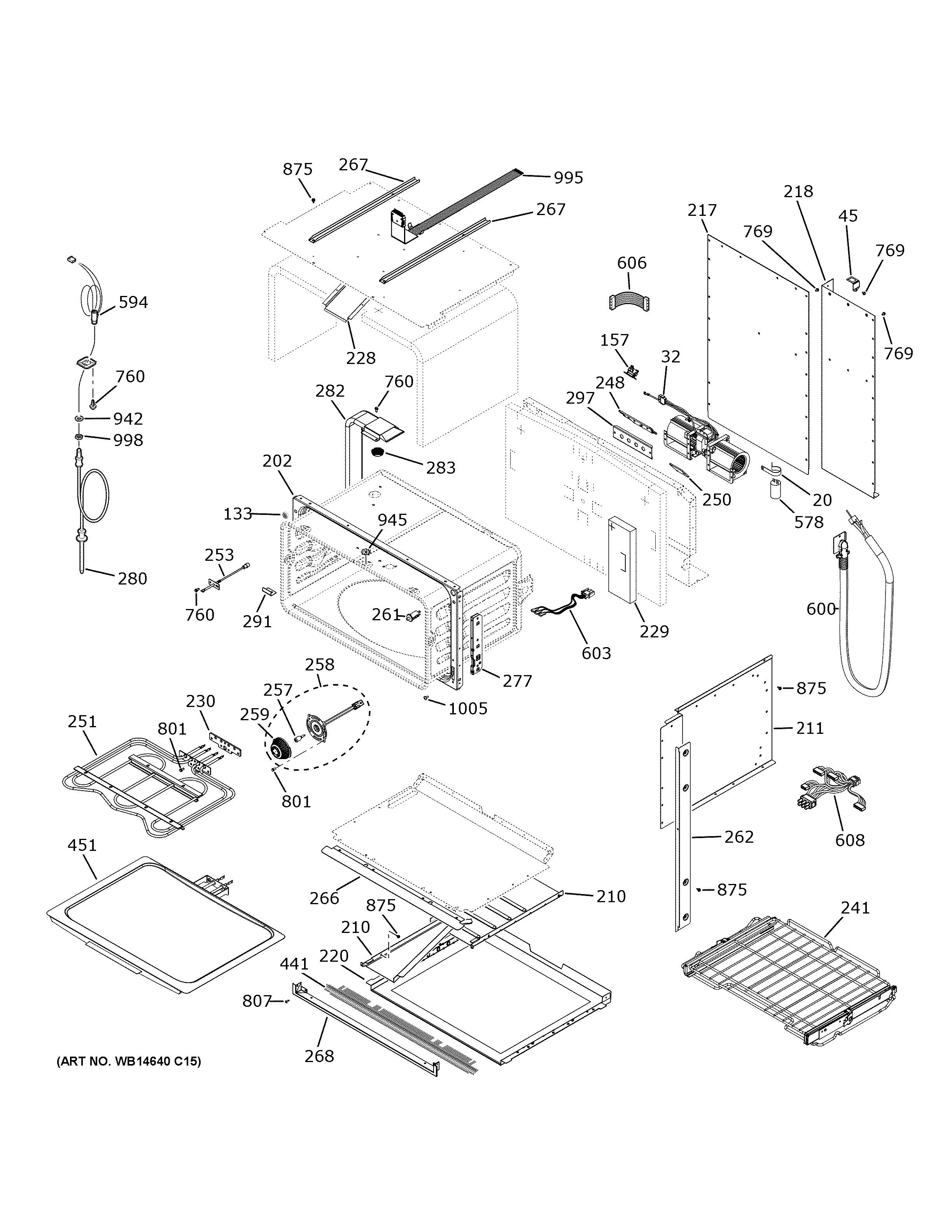

CTS92DM2N2S5 LOWER OVEN

Products

PositionProduct
20WB02T10152 GE Oven Motor Capacitor Bracket
32WB26X31060 GE Oven Blower Fan
45WB24X33028 GE RJ45 Bracket
133WB01T10022 GE Oven Door Bumper
157WB24T10161 GE Oven High Limit Switch
202FRONT FRAME LOWER
210RAIL BTM VENTURI SUPT
211RETAINER INSULATION LOWER SIDE
217WB34X33914 GE Relay Board Cover
218COVER BACK
220GEN WB02T10422
228RETAINER LATCH
229WB35T10208 GE Lower Back Insulation
230GASKET INNER GLASS FIBER
241WB48X34693 GE Oven Rack Slide Assembly
248PLATE BACK BROIL LWR
250GASKET BACK LAMP
251BROIL ELEMENT
253WB21X22134 GE Oven Sensor Assembly
257WB08T10045 GE Oven G9 Halogen Lamp
258WB25X40248 GE Assembly Halogen Lamp
259OV LAMP LENS LWR
261WB24T10160 GE Oven High AMP SPDT Switch
262GEN WB07T10644
262TRIM VERT SDE (LT)
266DIVIDER AIR
267WB63T10141 GE Support Rail
268WB07T10647 GE Oven Bottom Trim Assembly
277HINGE RECEIVER
280WB20T10024 GE Oven Thermistor Probe
282TUBE VENT ASM LWR
283WB38X33647 GE Smoke Eliminator
291GEN WB02X9152
297PLATE BACK CONVX
441SCREEN SUPPORT
451HIDDEN BAKE ELEMENT 2200W
578WB27T10662 GE Oven Capacitor
594WB18X25985 GE Meat Probe with Harness Receiver
600OPTIONAL 6' CONDUIT WIRE ASM
600CONDUIT WIRE ASM
603HARNESS WIRE PLUNGER
606HARNESS SIGNAL LOWER
608WB18X34736 GE Wire Harness Main Lower
760WB1X536 GE Oven Screw
769WB1X500D GE Oven Screw Package
801WB01M10002 GE Oven Screw
807WB1K5165 GE Oven Black Screw
875WH2X930 GE Screw
942WB1X5573 GE Oven Washer
945WB1K5046 GE Oven Washer
995WB18T10419 GE Oven Connector Ribbon Assembly
998WB1X5572 GE Oven Nut
1005WB01T10008 GE Oven Screw 10-32
