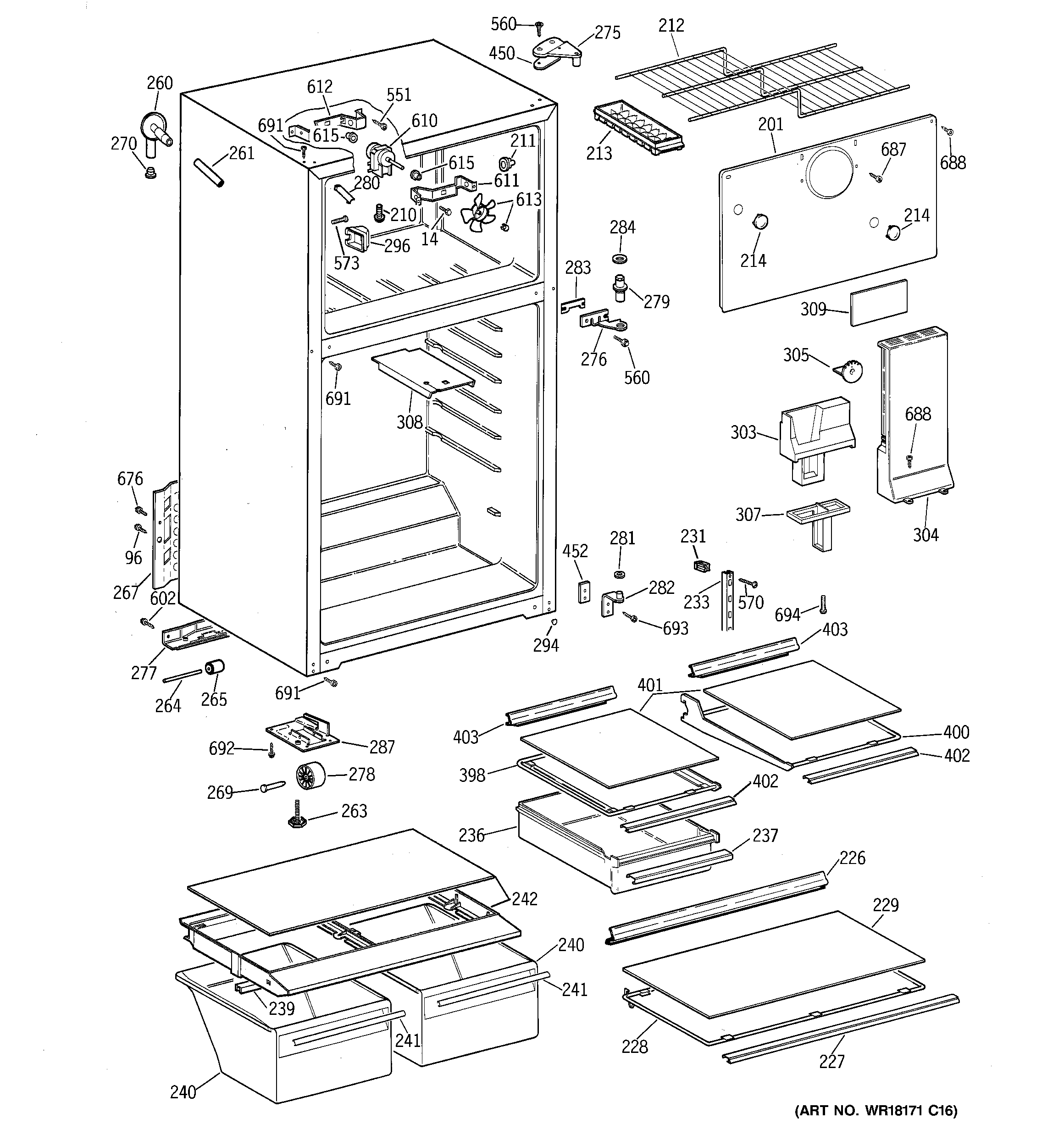

CTX16HABBRAA CABINET

CTX16HABBRAA CABINET

Written by

in

CTX16HABBRAA CABINET

Products

PositionProduct
14SCREW FAN MTR/BRKT
96GEN WR01X2009
201GEN WR17X2628
210GEN WR02X8999
211WR2X8429 GE Refrigerator Support
212WR71X2086 GE Refrigerator Freezer Shelf Assembly
213WR30X311 GE Refrigerator Ice Tray
214WR02X11760 GE Refrigerator Plug Button
226GEN WR38X2145
227GEN WR38X2143
228SHELF FULL GLASS
229SHELF CONT GLASS
231GEN WR02X7018
233GEN WR72X0142
236WR32X1448 GE Refrigerator Meat Pan
237GEN WR38X2036
239GEN WR17X3164
240WR32X10340 GE Refrigerator Lower Twin Vegetable Crisper Pan
241GEN WR38X2016
242WR32X10500 GE Refrigerator Vegetable Pan Cover with Glass
242GEN WR32X1497
260WR2X9223 GE Donut Gasket
260WR02X10967 GE Refrigerator Gasket and Grommet Assembly
261GEN WR02X6087
263WR2X7877 GE Refrigerator Slider Adjuster
264GEN WR02X8214
265GEN WR02X8245
267GEN WR82X0322
269GEN WR02X8949
270WR2X8247 GE Refrigerator Plug Button
275HINGE TOP & SHIM ASM
276HINGE CTR & SHIM ASM
277GEN WR17X3188
278WHEEL MOBILITY FRT
279GEN WR02X8232
280GEN WR02X8466
281WR1X1797D GE Refrigerator Washer Package
282GEN WR13X0596
283GEN WR02X8240
284WR1X1794 GE Refrigerator Door Spacer
287GEN WR02X8708
287GEN WR02X8709
294GEN WR02X9148
296GEN WR02X9159
303WR02X10701 GE Refrigerator Foam Duct Assembly
304GEN WR17X2629
305GEN WR02X9218
307GEN WR02X8463
308GEN WR02X8248
309GEN WR02X8246
398GEN WR71X10088
400GEN WR71X10089
401SHELF CONT GLASS
402GEN WR38X2142
403GEN WR38X2144
450GEN WR02X8871
452GEN WR02X8870
551GEN WZ04X0244
560GEN WR01X1249
570WR01X10626 GE Refrigerator Screw 8-18 AB HXW 5/4 S
573GEN WZ04X0254
602WR1X1591 GE Refrigerator Screw
610GEN WR60X203
611GEN WR02X8216
612GEN WR02X8217
613WR60X114 GE Refrigerator Evaporator Motor Fan Blade
615GEN WR02X7391
676WD2X5166 GE Dishwasher Screw
687GEN WZ06X0096
688WR01X10448 GE Refrigerator Screw 8-19 HI/LO TRP 1" S
691SCREW 12-24
692SCREW
693WR1X1754D GE Refrigerator Screw Package
694GEN WR01X1792
