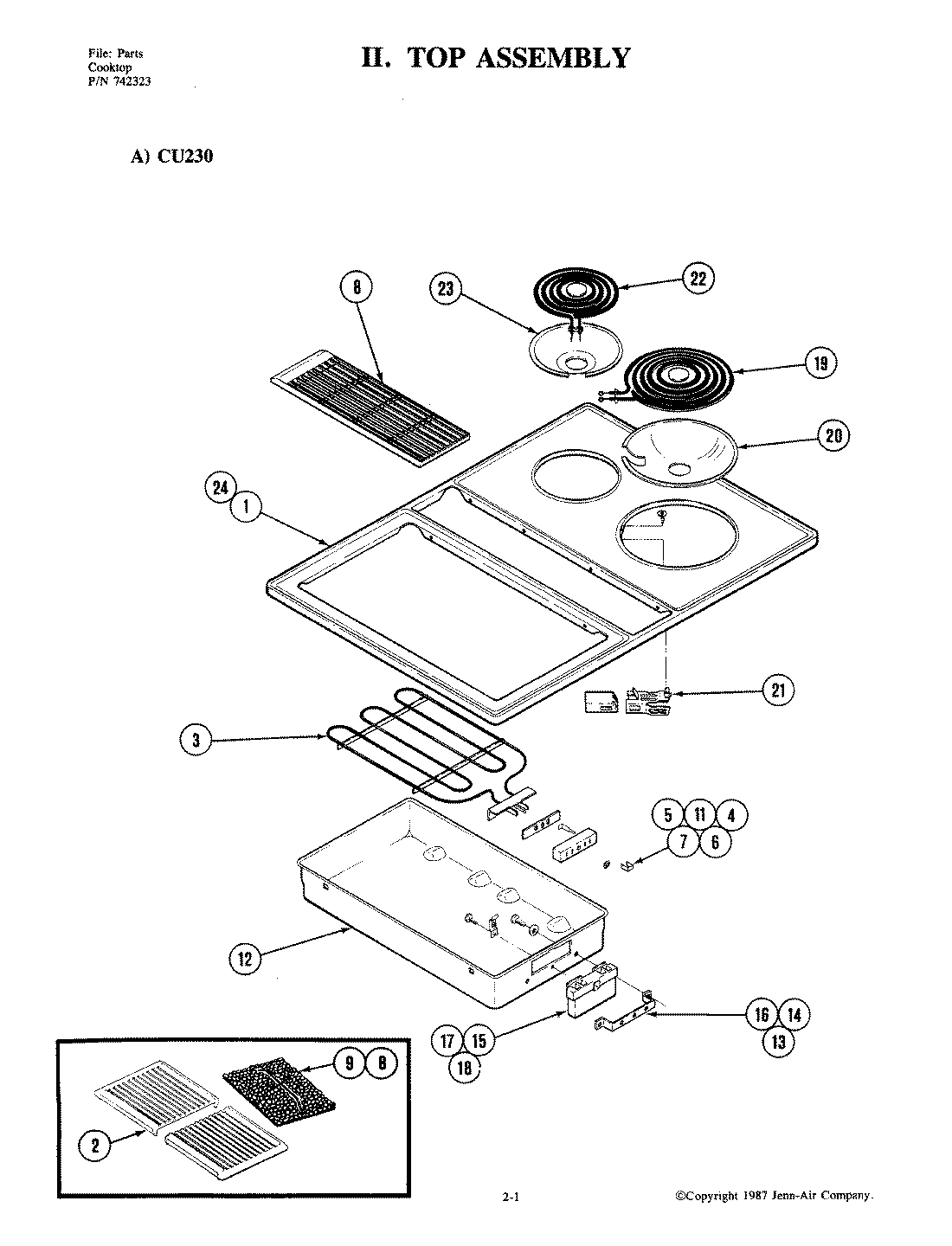

CU230 04 – TOP ASSEMBLY
Written by
in
CU230 04 – TOP ASSEMBLY
Products
Position
Product
NI
700819 Whirlpool Oven Element Support
1
MAY 704170
2
MAY 703905
3
MAY 703943
4
MAY Y700449
5
WPY708730 Whirlpool Terminal Block
6
Y708862 Whirlpool Speed Nut
7
MAY Y700450
8
MAY 703926
9
MAY 708929
11
MAY Y704166
12
MAY 712354
12
MAY 712356
12
MAY 712147
12
MAY Y712200
12
MAY 701955
12
MAY Y712203
13
MAY Y707172
14
MAY Y707664
15
MAY 704168
16
MAY Y702698
17
MAY Y702699
18
MAY Y707341
19
MAY Y703421
20
715878 Whirlpool Range 8" Chrome Drip Pan
21
MAY Y712361
22
MAY Y703422
23
715877 Whirlpool Electric Range 6" Chrome Drip Pan
24
MAY Y707347
←
YACQ068MP0 03 – CABINET PARTS, OPTIONAL PARTS (NOT INCLUDED)
YWED94HEAC0 01 – TOP AND CONSOLE PARTS
→
