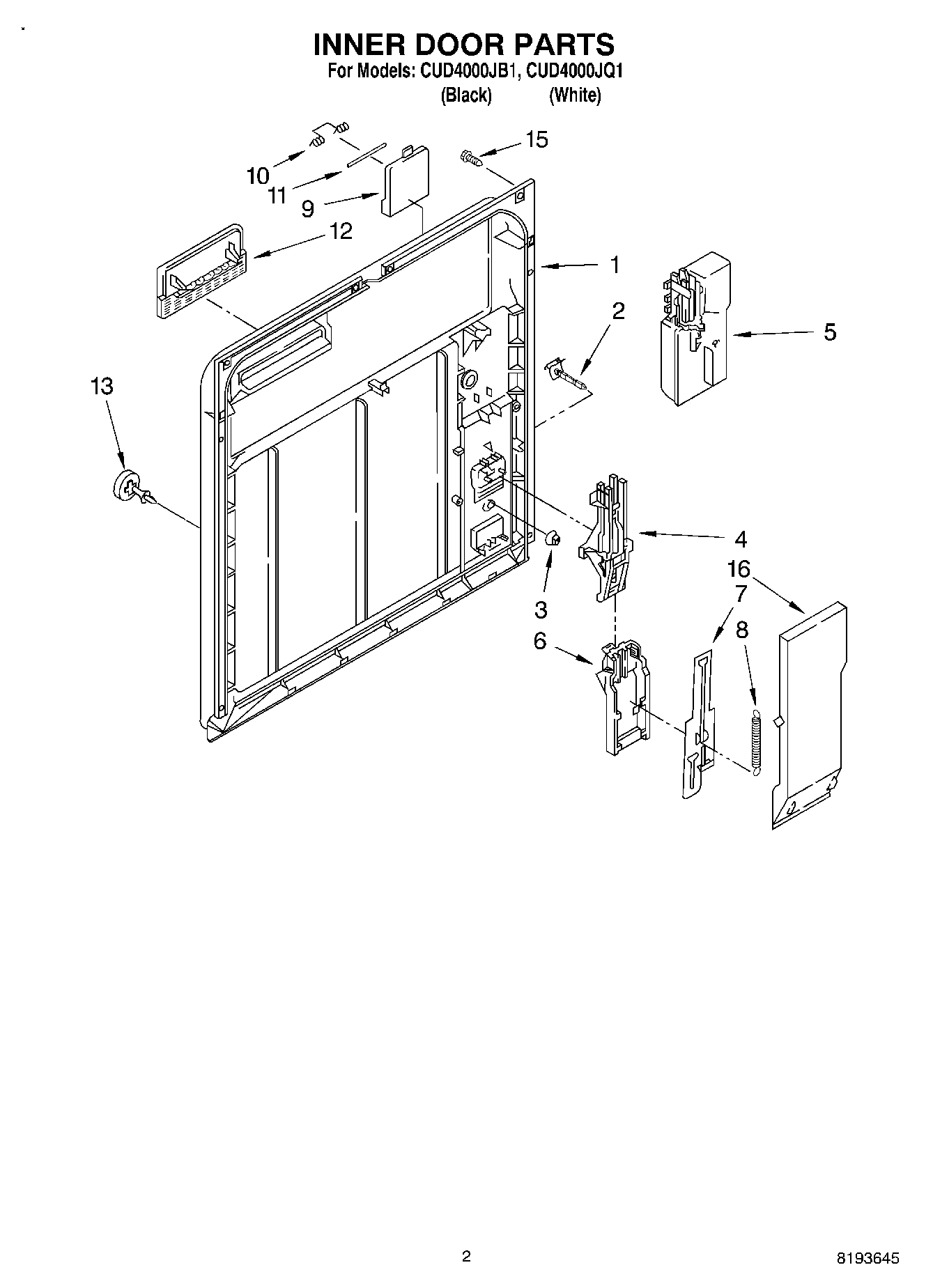

CUD4000JB1 02 – INNER DOOR

CUD4000JB1 02 – INNER DOOR

Written by

in

CUD4000JB1 02 – INNER DOOR

Products

PositionProduct
1WP8528310 Whirlpool Dishwasher Inner Door
3LATCH KIT
5WP8052027 Whirlpool Dishwasher Dispenser
6Draw Bar, (Upper Dispenser)
78193646 Whirlpool Dishwasher Lower Detergent Dispenser Actuator Kit
8WP3368999 Whirlpool Dishwasher Spring
9WP3378138 Whirlpool Cover Assembly
10WP8066018 Whirlpool Spring Assembly
11WP3372028 Whirlpool Hinge Pin
12WP3371710 Whirlpool Dishwasher Screen
13WP3378134 Whirlpool Dishwasher Cap
15WPW10348413 Whirlpool Dishwasher Screw
16Cover, Drip
