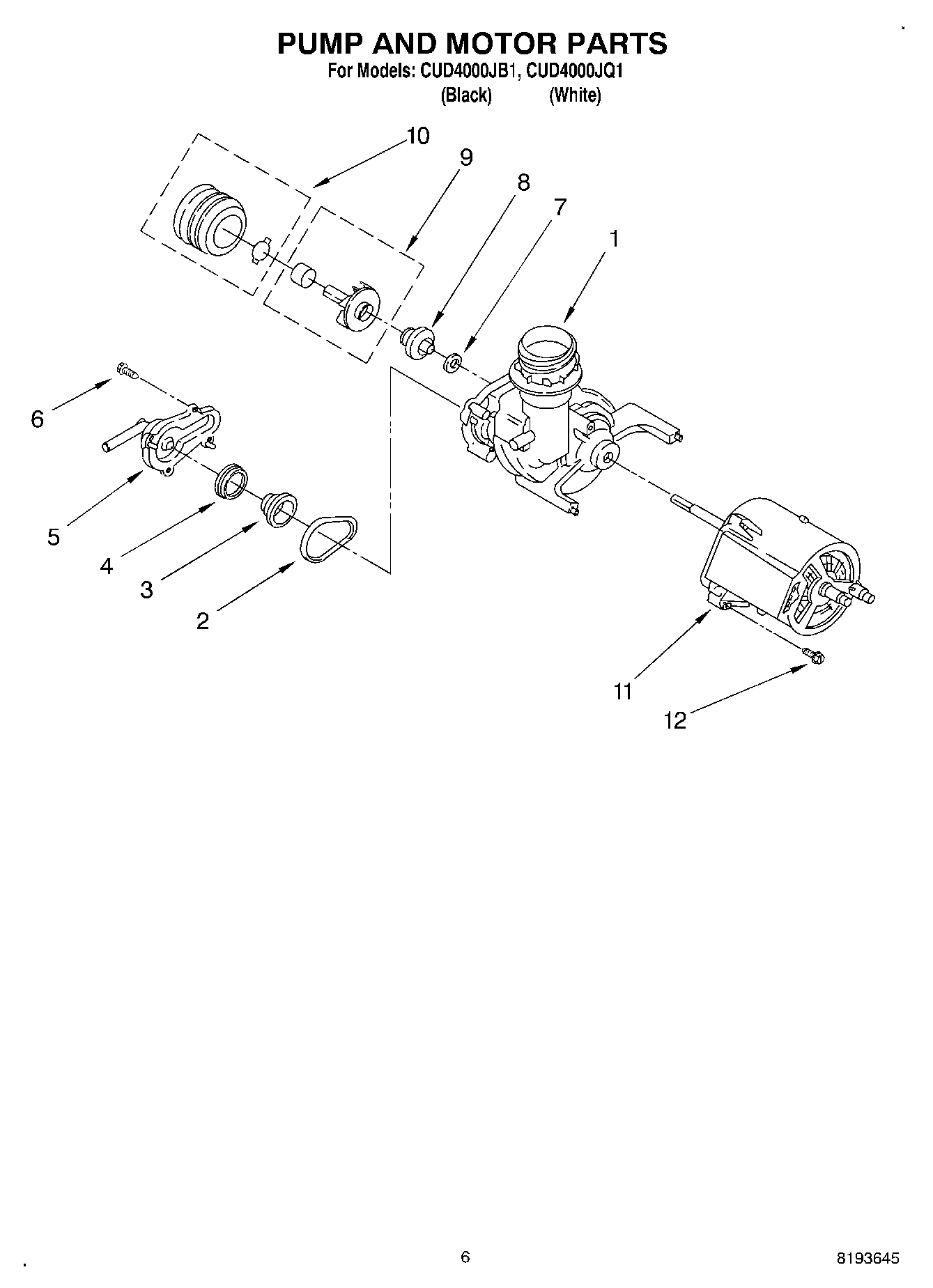

CUD4000JB1 05 – PUMP AND MOTOR

CUD4000JB1 05 – PUMP AND MOTOR

Written by

in

CUD4000JB1 05 – PUMP AND MOTOR

Products

PositionProduct
1WP3369011 Whirlpool Dishwasher Housing
2WP3369031 Whirlpool Dishwasher Seal
3Diaphragm
4Ring, Diaphragm
5Cover, Drain Valve
6WP3368921 Whirlpool Screw
7Seal Seat
8WP3385557 Whirlpool Dishwasher Head Seal
94386996A Whirlpool Dishwasher Impeller
10WP3369012 Whirlpool Dishwasher Disk Mount
11Motor
123368922 Whirlpool Dishwasher TORX Screw
