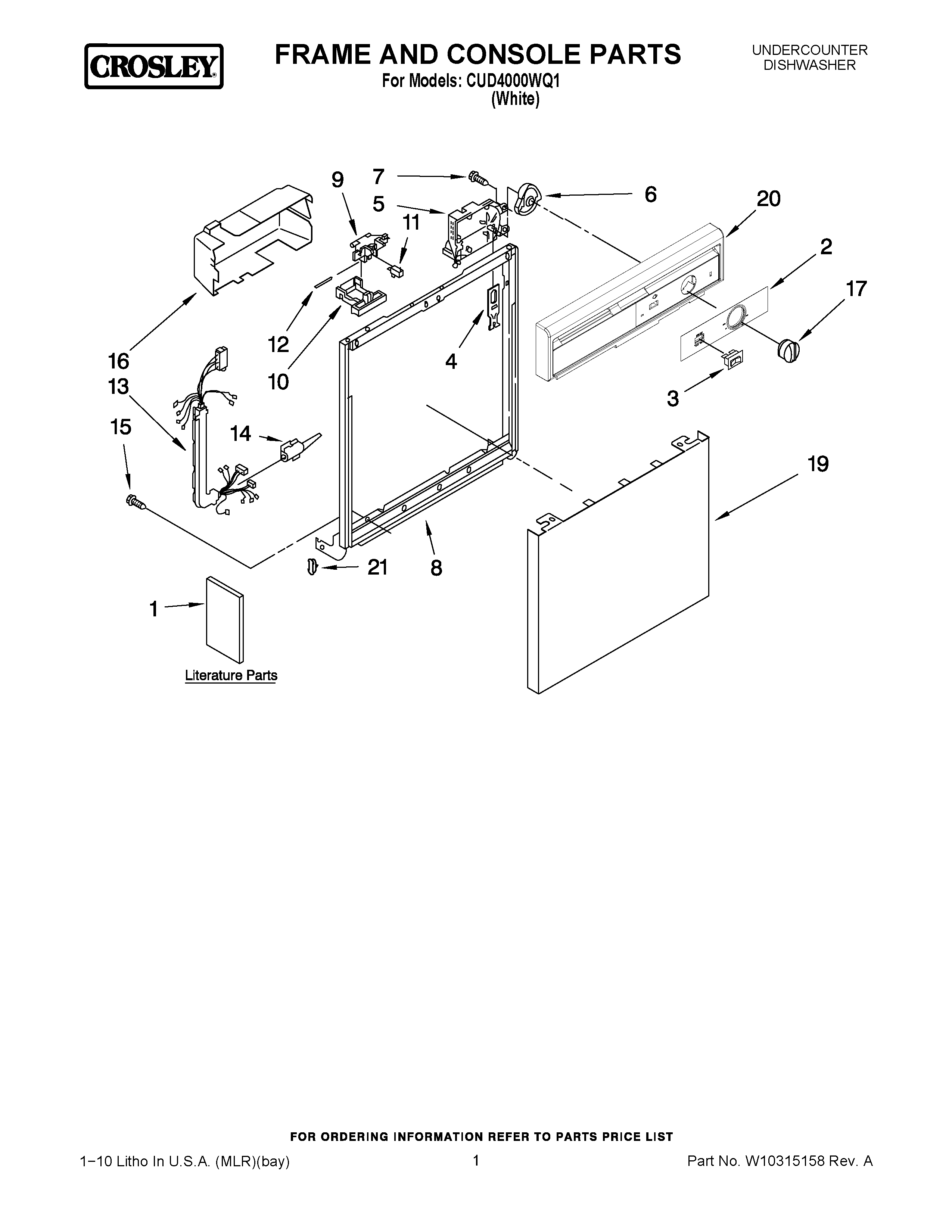

CUD4000WQ1 01 – FRAME AND CONSOLE PARTS

CUD4000WQ1 01 – FRAME AND CONSOLE PARTS

Written by

in

CUD4000WQ1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1DIAGRAM, WIRING
1INSERT-INSTALL
1GUIDE, ENERGY
1GUIDE, USE & CARE ENGLISH/FRENCH
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2INSERT, CONSOLE (WHITE)
38051730 Whirlpool Dishwasher Switch
4WP3369529 Whirlpool Dishwasher Follower
5WPW10199588 Whirlpool Dishwasher Timer
6WP8271510 Whirlpool Dishwasher Cam
7WP304231 Whirlpool Dishwasher Screw
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
11WPW10134019 Whirlpool Dishwasher Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16COVER TIMER
178275308 Whirlpool Dishwasher Timer Knob
19Panel Front (White Model)
20CONSOLE (INCLUDES ITEM 2) (WHITE)
21WP3373234 Whirlpool Dishwasher Bearing
