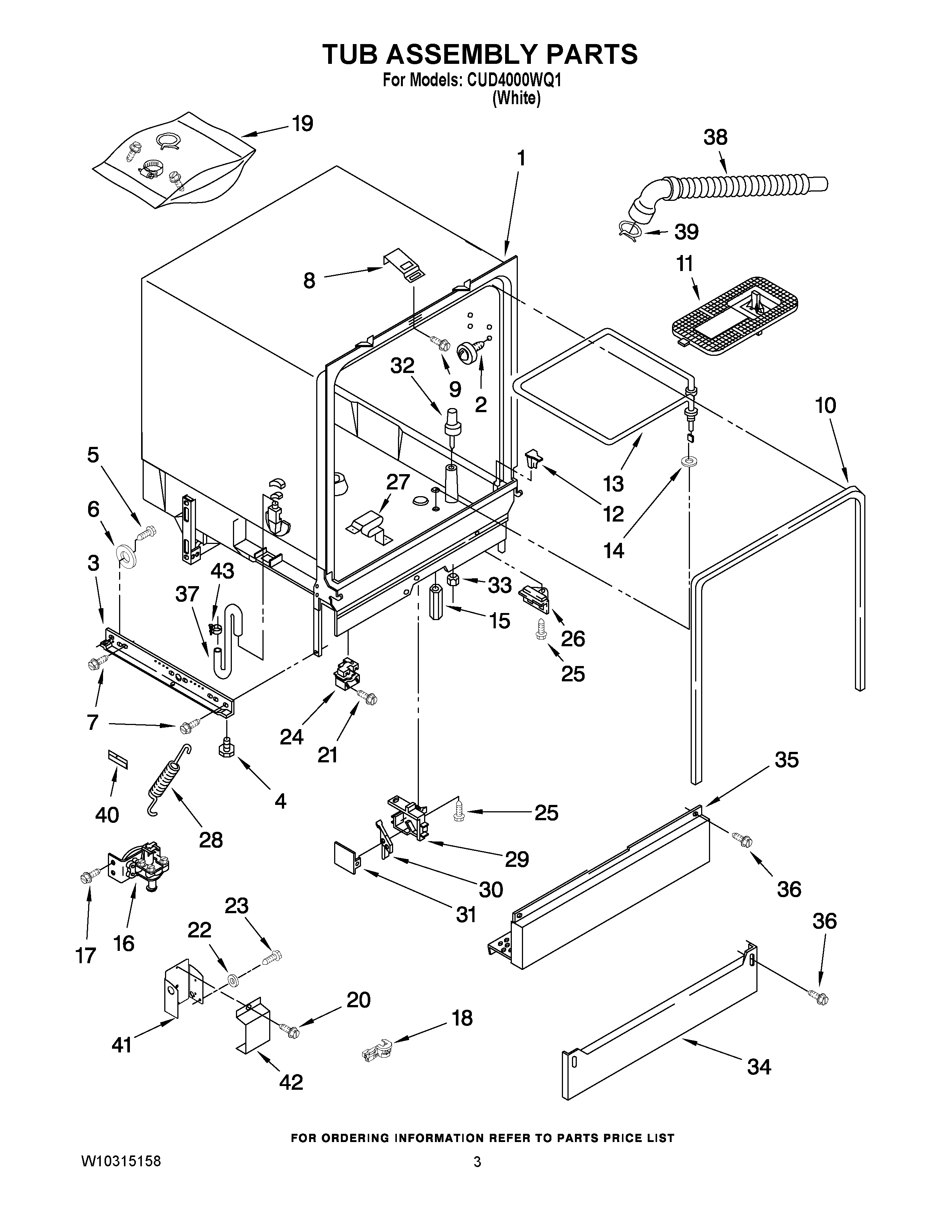

CUD4000WQ1 03 – TUB ASSEMBLY PARTS

Products

PositionProduct
1Tub Assembly
2WP8528831 Whirlpool Dishwasher Mounting
3Runner (2)
48193716 Whirlpool Leveling Leg
5Screw (2)
6WP302819 Whirlpool Dishwasher Wheel
7SCREW
8Plate, Latch
9WP3374720 Whirlpool Dishwasher Screw
10WPW10509257 Whirlpool Door Gasket
11WP3369322 Whirlpool Cover Assembly
12DEFLECTOR-DISHWASHER
13WPW10082894 Whirlpool Dishwasher Heater
14WP717273 Whirlpool Dishwasher Rubber Washer
15WPW10477552 Whirlpool Dishwasher Terminal Nut
16W10844024 Whirlpool Water Inlet Valve
17WP489069 Whirlpool Compactor Screw
18W11384788 Whirlpool Dishwasher Relief Strainer
19Miscellanous Parts Bag (Includes 2 Screws & 2 Hose Clamps)
20W11693756 Whirlpool Screw Assembly
21WP3400861 Whirlpool Screw
22WP3378128 Whirlpool Dishwasher Washer
23WP3400014 Whirlpool Dishwasher Screw
24W10102260 Whirlpool Dishwasher Motor Relay
25WP304231 Whirlpool Dishwasher Screw
26WP3368928 Whirlpool Dishwasher Fuse
273379740 Whirlpool Dishwasher Heater Support
28WP3374343 Whirlpool Dishwasher Spring
29Housing, Float Switch
30Switch, Float
318318219 Whirlpool Dishwasher Cover Housing
32WP8519552 Whirlpool Dishwasher Float
33Nut
34WP3379921 Whirlpool Dishwasher Toe Panel
35Access Panel (White)
36WP302868 Whirlpool Screw
37Hose, Inlet
38WP3374077 Whirlpool Dishwasher Drain Hose
39WP356138 Whirlpool Hose Clamp
40Friction Pad (Velcro)
41Terminal Box
42300068 Whirlpool Dishwasher Cover Assembly
43WP596669 Whirlpool Hose Clamp
