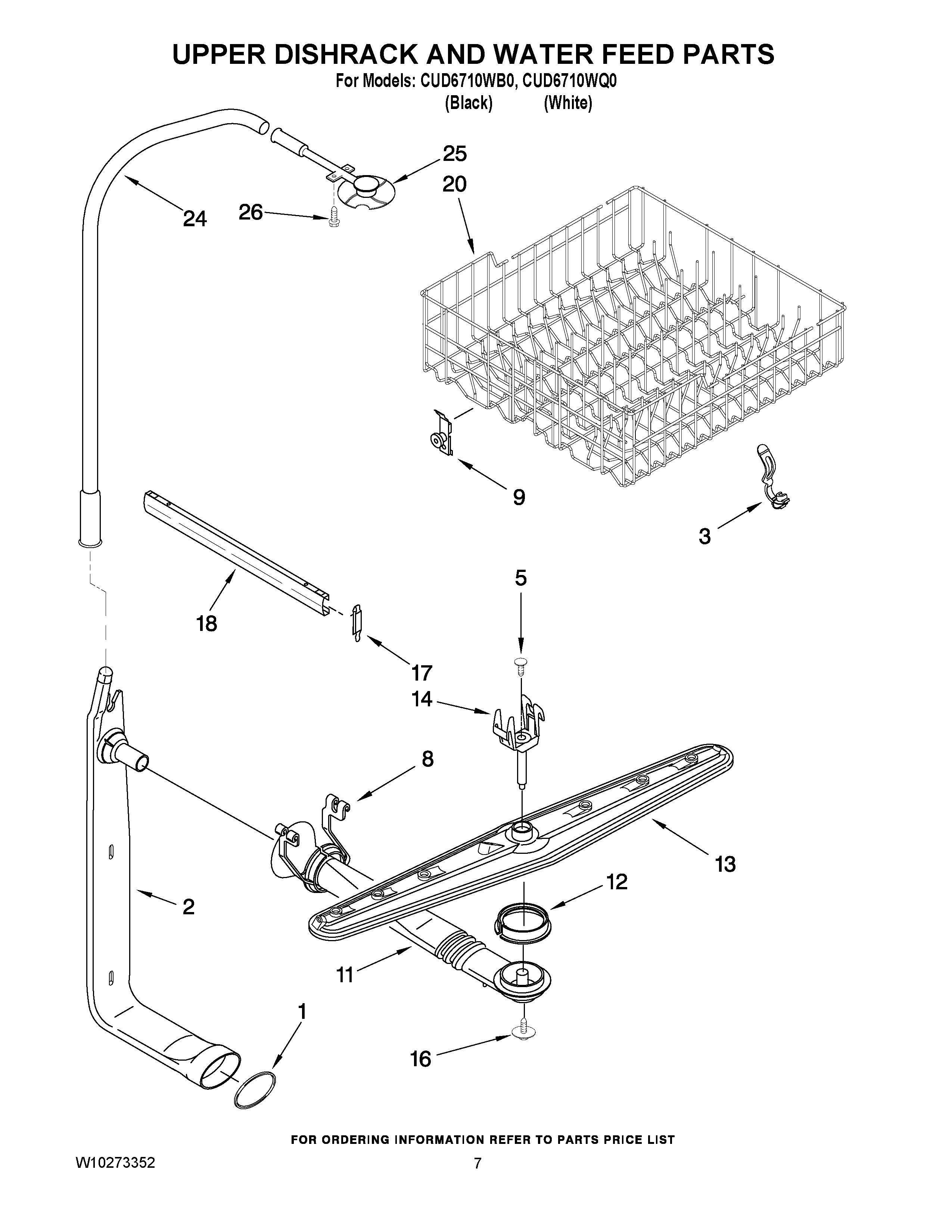

CUD6710WB0 05 – UPPER DISHRACK AND WATER FEED PARTS

Products

Position	Product
1	Seal, Tube
2	661651 Whirlpool Dishwasher Tube
3	CLIP, NO FLIP
5	WP3400919 Whirlpool Dishwasher Screw Cover
8	WP3385160 Whirlpool Dishwasher Holder
9	WPW10204131 Whirlpool Dishwasher Dishrack Adjuster
11	WPW10258149 Whirlpool Dishwasher Manifold
12	WP3376846 Whirlpool Seal
13	WP8519604 Whirlpool Dishwasher Spray Arm
14	WP3385159 Whirlpool Dishwasher Mount
16	WPW10349488 Whirlpool Screw
17	WP8565925 Whirlpool Slide Rail Stop
18	WP3385089 Whirlpool Track
20	DISHRACK
24	Tube (3rd Level)
25	WP3379369 Whirlpool Dishwasher Wash Assembly
26	W10165274 Whirlpool Dishwasher Screw
