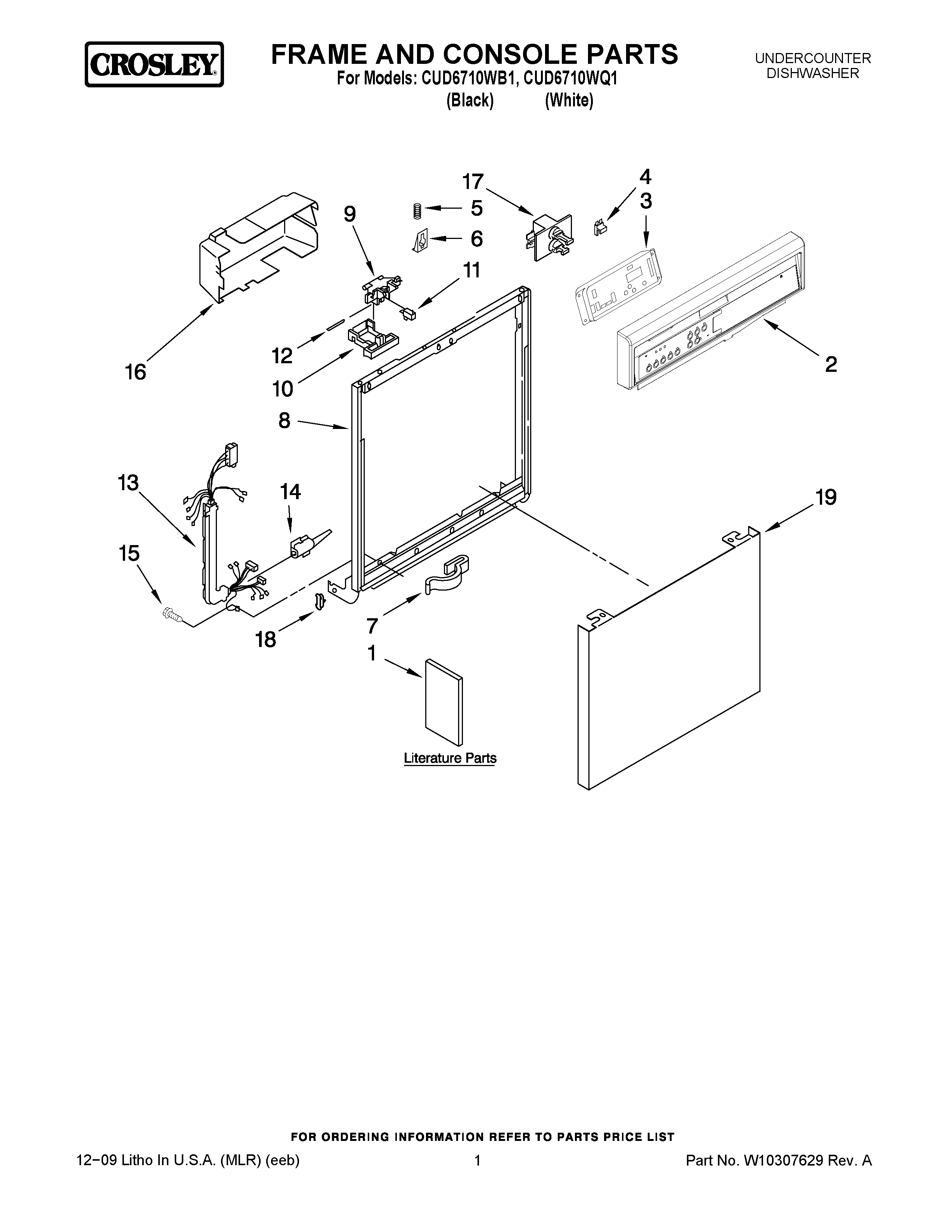

CUD6710WB1 01 – FRAME AND CONSOLE PARTS

CUD6710WB1 01 – FRAME AND CONSOLE PARTS

Written by

in

CUD6710WB1 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1GUIDE, USE & CARE
1TECH SHEET
1GUIDE, ENERGY
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (WHITE)
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (BLACK)
3CONTROL ELECTRONIC
4675813 Whirlpool Thermal Fuse Kit
6675782 Whirlpool Dishwasher Catch
7WP3400935 Whirlpool Dishwasher Clip
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch White
10Lever, Latch
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
18WP3373234 Whirlpool Dishwasher Bearing
19PANEL, FRONT (BLACK)
19PANEL, FRONT (WHITE)
