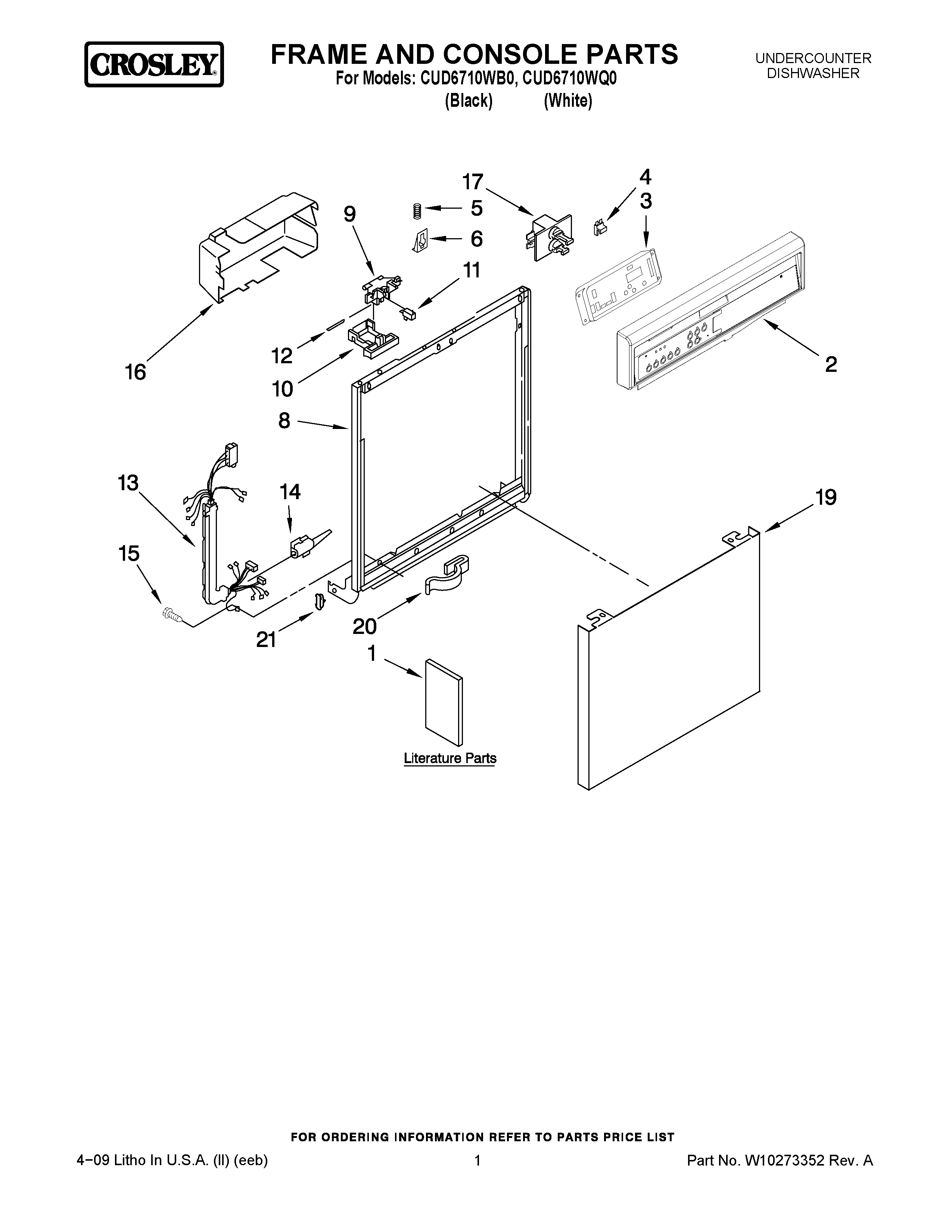

CUD6710WQ0 01 – FRAME AND CONSOLE PARTS

Products

PositionProduct
1WPL 677967
1GUIDE, USE & CARE
1GUIDE, ENERGY
1DIAGRAM, WIRING
1INSTRUCTIONS, INSTALLATION (SUPPLEMENT) (LOCATION YOUR WATER SUPPLY)
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (BLACK)
2CONSOLE (INCLUDES INSERT & ACTIVE OVERLAY) (WHITE)
3Control, Electronic
4675813 Whirlpool Thermal Fuse Kit
6675782 Whirlpool Dishwasher Catch
8WP9743028 Whirlpool Dishwasher Frame
9WP3380854 Whirlpool Door Latch Bolt
10Lever, Latch
10Lever, Latch White
11Shield, Switch
12Pin, Switch (2)
13Harness and Protector
143376405 Whirlpool Dishwasher Elbow
15WP3400892 Whirlpool Dishwasher Screw
16Cover, Timer
17Motor, Dual
19PANEL, FRONT (BLACK)
19PANEL, FRONT (WHITE)
20WP3400935 Whirlpool Dishwasher Clip
21WP3373234 Whirlpool Dishwasher Bearing
