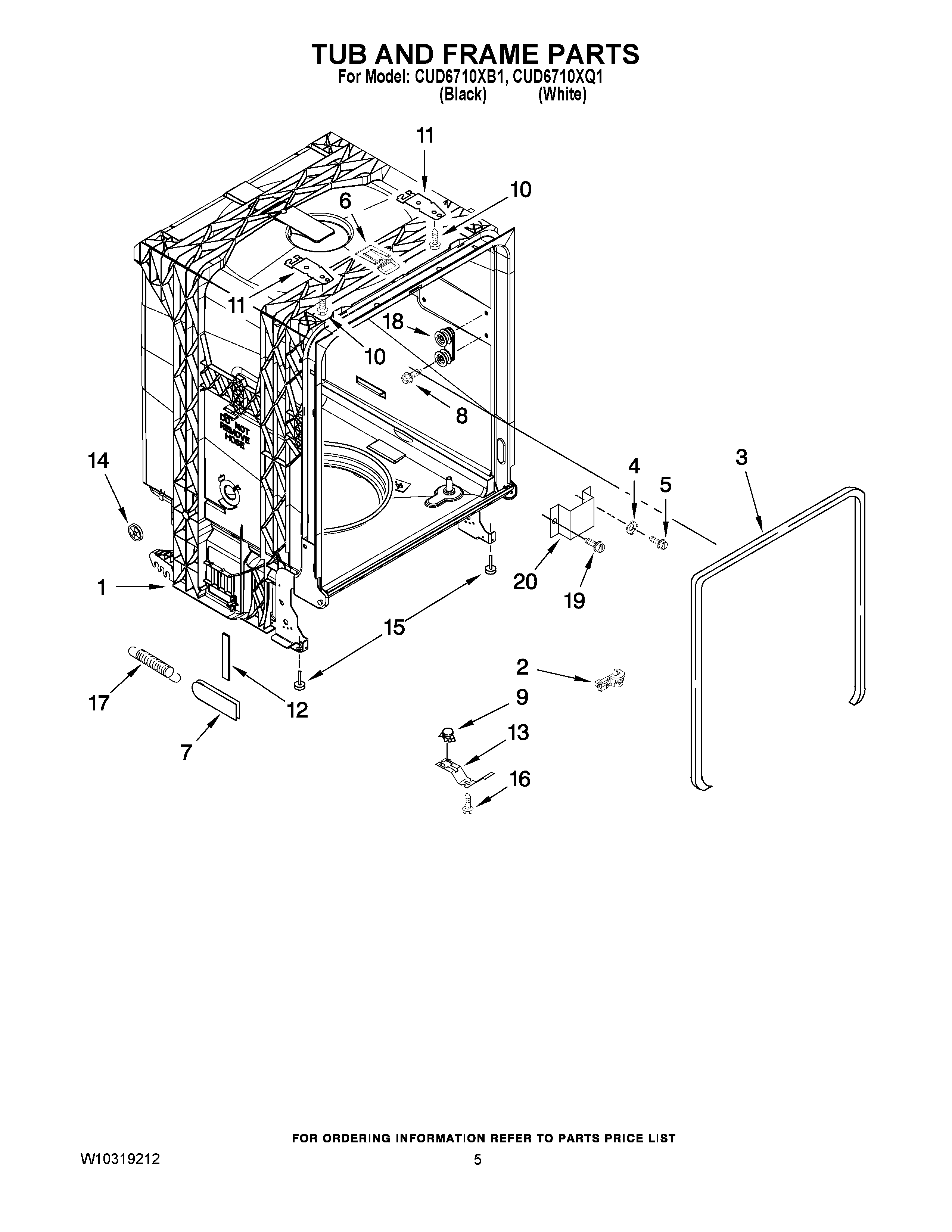

CUD6710XB1 05 – TUB AND FRAME PARTS

CUD6710XB1 05 – TUB AND FRAME PARTS

Written by

in

CUD6710XB1 05 – TUB AND FRAME PARTS

Products

PositionProduct
1W10413848 Whirlpool Dishwasher Tub
2W11384788 Whirlpool Dishwasher Relief Strainer
3W10542314 Whirlpool Dishwasher Door Gasket and Latch Strike Kit
4WP3378128 Whirlpool Dishwasher Washer
5WP3400014 Whirlpool Dishwasher Screw
6WP8580309 Whirlpool Dishwasher Strike
7WP8268990 Whirlpool Dishwasher Door Spring Bushing
8W10817436 Whirlpool Screw
9WP661566 Whirlpool High Limit Thermostat
10WP308685 Whirlpool Microwave Screw
11WP8269145 Whirlpool Dishwasher Mounting Bracket
12WP8268961 Whirlpool Friction Pad
13W10539489 Whirlpool Dishwasher Bracket-Stat
14WP8269831 Whirlpool Dishwasher Wheel
158193716 Whirlpool Leveling Leg
16WP304231 Whirlpool Dishwasher Screw
17WPW10337934 Whirlpool Spring Assembly
18WP8270016 Whirlpool Dishwasher Tub Wheel
19WP3400892 Whirlpool Dishwasher Screw
20WP8268991 Whirlpool Dishwasher Cover Assembly
