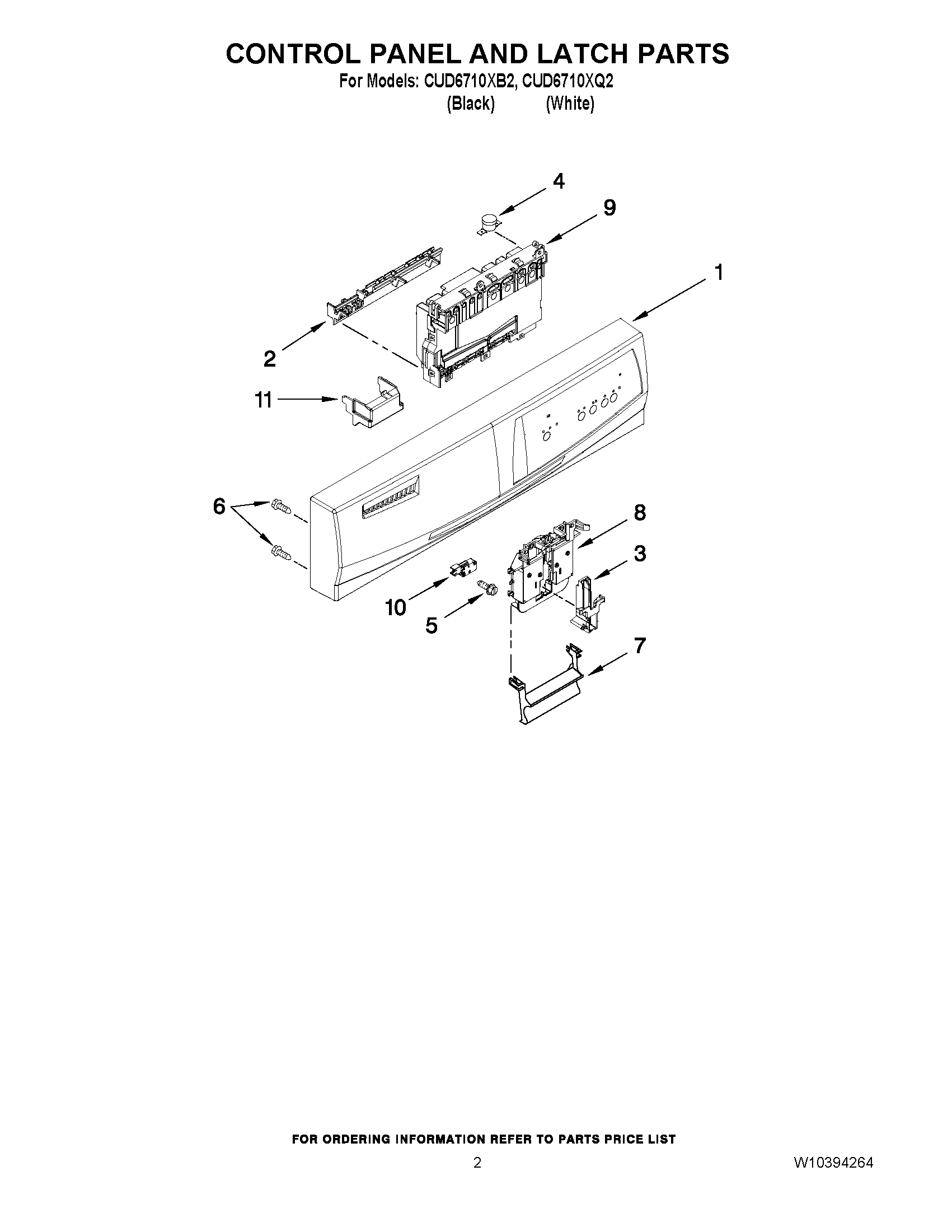

CUD6710XB2 02 – CONTROL PANEL AND LATCH PARTS

Products

Position	Product
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
1	CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
2	WPW10372484 Whirlpool Dishwasher Brace
3	WP8524471 Whirlpool Dishwasher Actuator
4	W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
5	WP3400412 Whirlpool Dishwasher Screw
6	WPW10348413 Whirlpool Dishwasher Screw
7	WP8269323 Whirlpool Dishwasher Handle
8	BOLT-LATCH
9	CONTROL, ELECTRONIC
10	WPW10274880 Whirlpool Switch
11	W10325295 Whirlpool Connector
