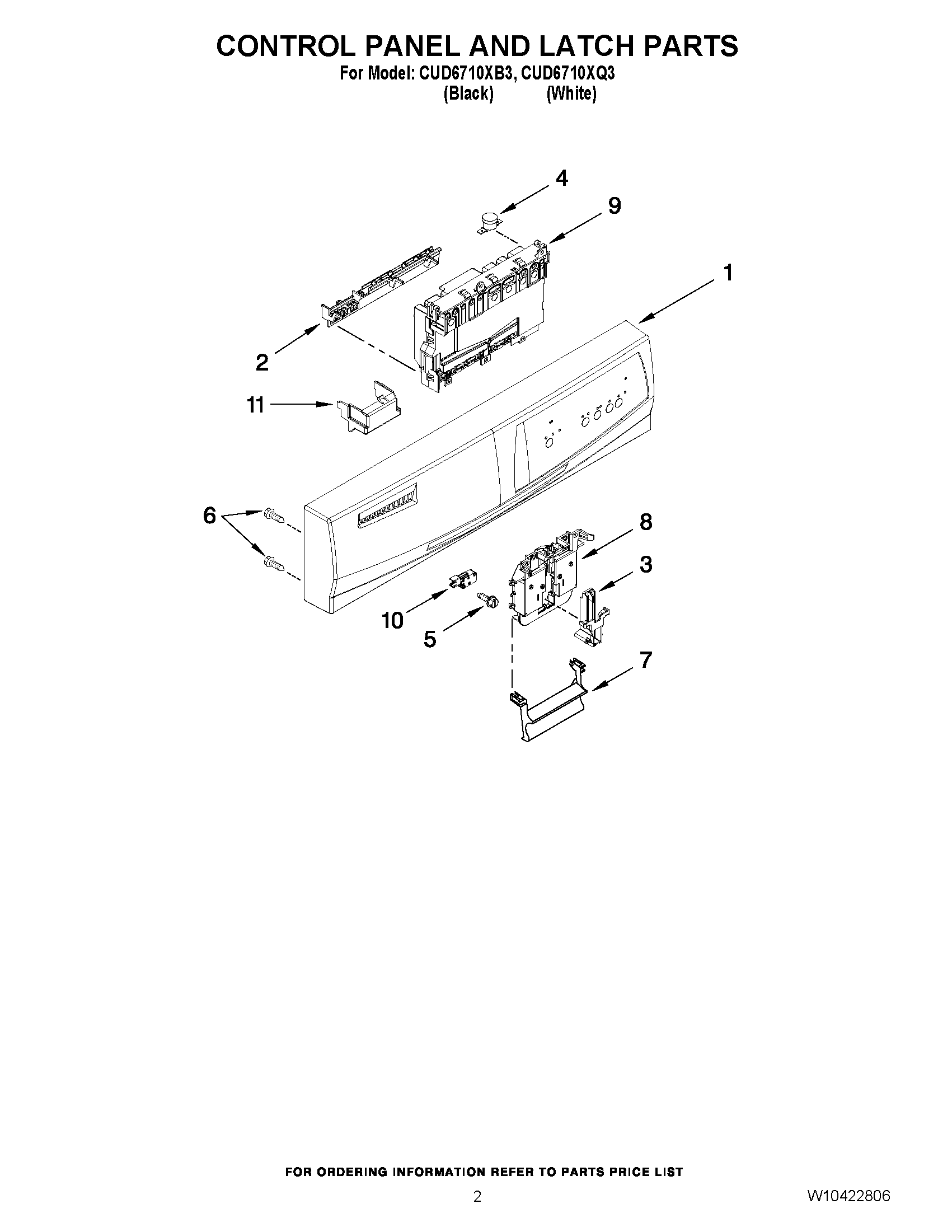

CUD6710XB3 02 – CONTROL PANEL AND LATCH PARTS

CUD6710XB3 02 – CONTROL PANEL AND LATCH PARTS

Written by

in

CUD6710XB3 02 – CONTROL PANEL AND LATCH PARTS

Products

PositionProduct
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (WHITE)
1CONSOLE ASM. (INCLUDES ACTIVE OVERLAY & INSERT) (BLACK)
2WPW10372484 Whirlpool Dishwasher Brace
3WP8524471 Whirlpool Dishwasher Actuator
4W10402110 Whirlpool Dishwasher Bi-Metal Thermal Cut-Off Fuse
5WP3400412 Whirlpool Dishwasher Screw
6WPW10348413 Whirlpool Dishwasher Screw
7WP8269323 Whirlpool Dishwasher Handle
8BOLT-LATCH
9CONTROL, ELECTRONIC
10WPW10274880 Whirlpool Switch
11W10783730 Whirlpool Dishwasher Connector
