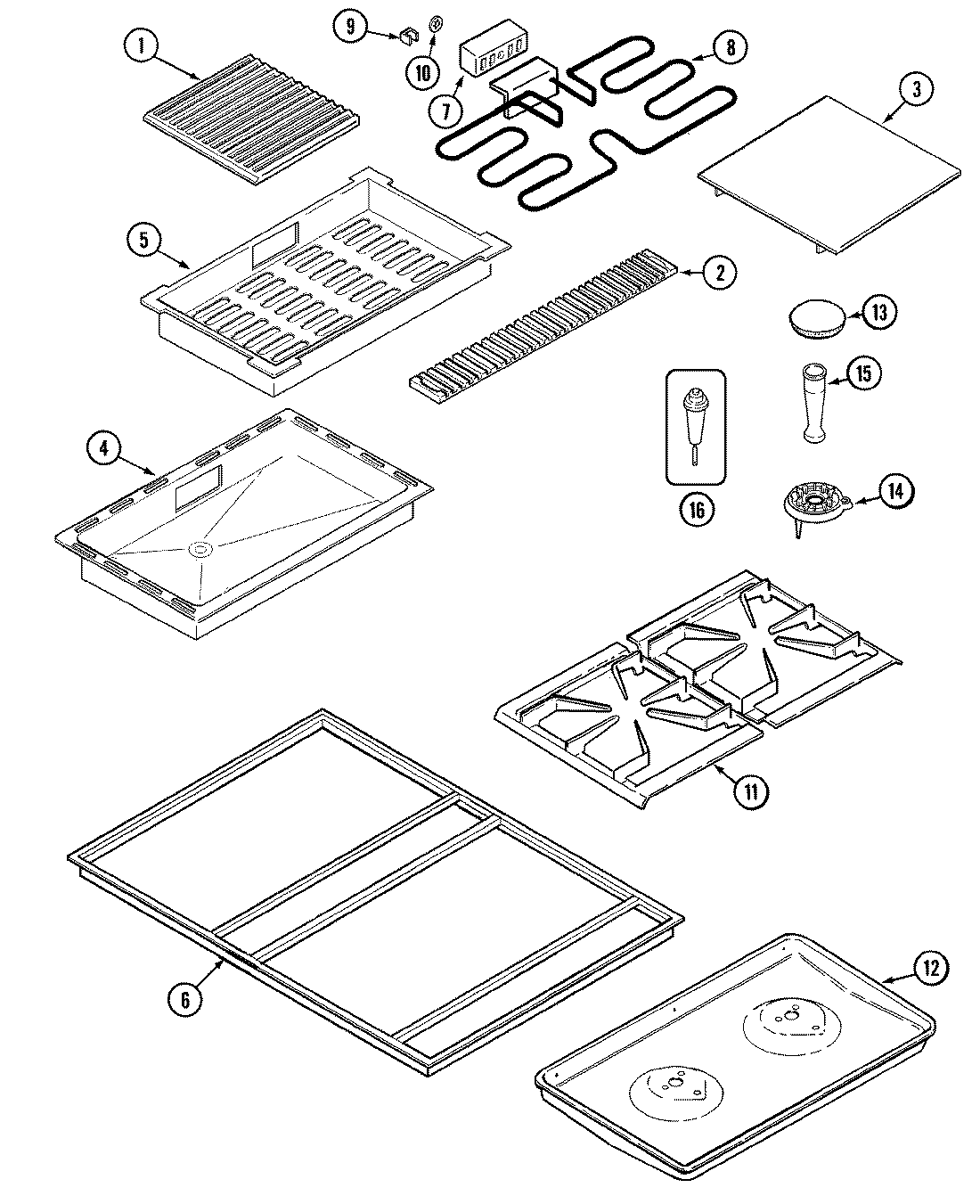

CVDX4180W 04 – TOP ASSEMBLY

Products

PositionProduct
NIMAY 74004452
1MAY Y706059
2MAY 71001673
3MAY 12200018
4MAY Y706002
5MAY Y706003
6MAY 71003210
6SCREW
7WPY708730 Whirlpool Terminal Block
8Y04100124 Whirlpool Range Grill Element
9MAY Y700450
10Y708862 Whirlpool Speed Nut
11MAY 71001006
12MAY 71002789
13MAY 71002790
13MAY 71002739
14MAY 71002743
14WP7540P028-60 Whirlpool Burner Base
15WP7538P003-60 Whirlpool Venturi
16WP7432P109-60 Whirlpool Oven Igniter
