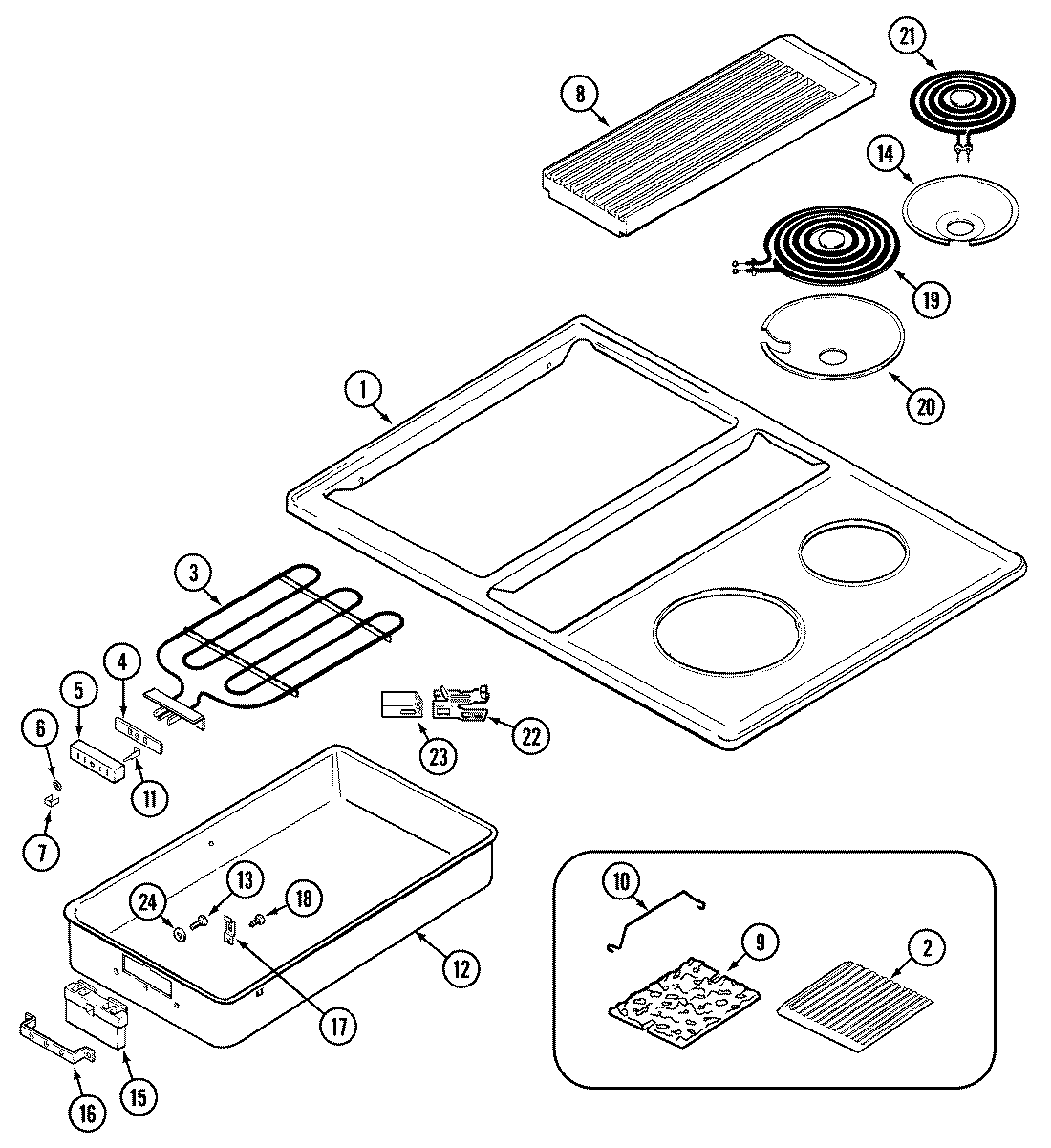

CVE4180B-C 04 – MAIN TOP

CVE4180B-C 04 – MAIN TOP

Written by

in

CVE4180B-C 04 – MAIN TOP

Products

PositionProduct
1MAY 04100291
2MAY Y04100367
3MAY 71001573
3MAY 71001580
3MAY Y712619
4MAY Y700449
5WPY708730 Whirlpool Terminal Block
6Y708862 Whirlpool Speed Nut
7MAY Y700450
8MAY 71001576
9MAY 708929
10700819 Whirlpool Oven Element Support
11Y708572 Whirlpool Spade Contact
12MAY Y712197
12MAY 701955
12MAY Y712200
12MAY Y712203
12MAY Y701489
13WP12990527 Whirlpool Microwave Screw
14715877 Whirlpool Electric Range 6" Chrome Drip Pan
15WPY702434 Whirlpool Receptacle
16MAY Y702698
17MAY Y702699
18WP489128 Whirlpool Refrigerator Screw
19WPY04100166 Whirlpool Oven 8" Surface Element
20715878 Whirlpool Range 8" Chrome Drip Pan
21WPY04100165 Whirlpool Surface Element
22MAY Y712355
23MAY Y704146
24MAY Y707664
