CVEX4100B19 03 – BURNER BOX ASSEMBLY – Aparts

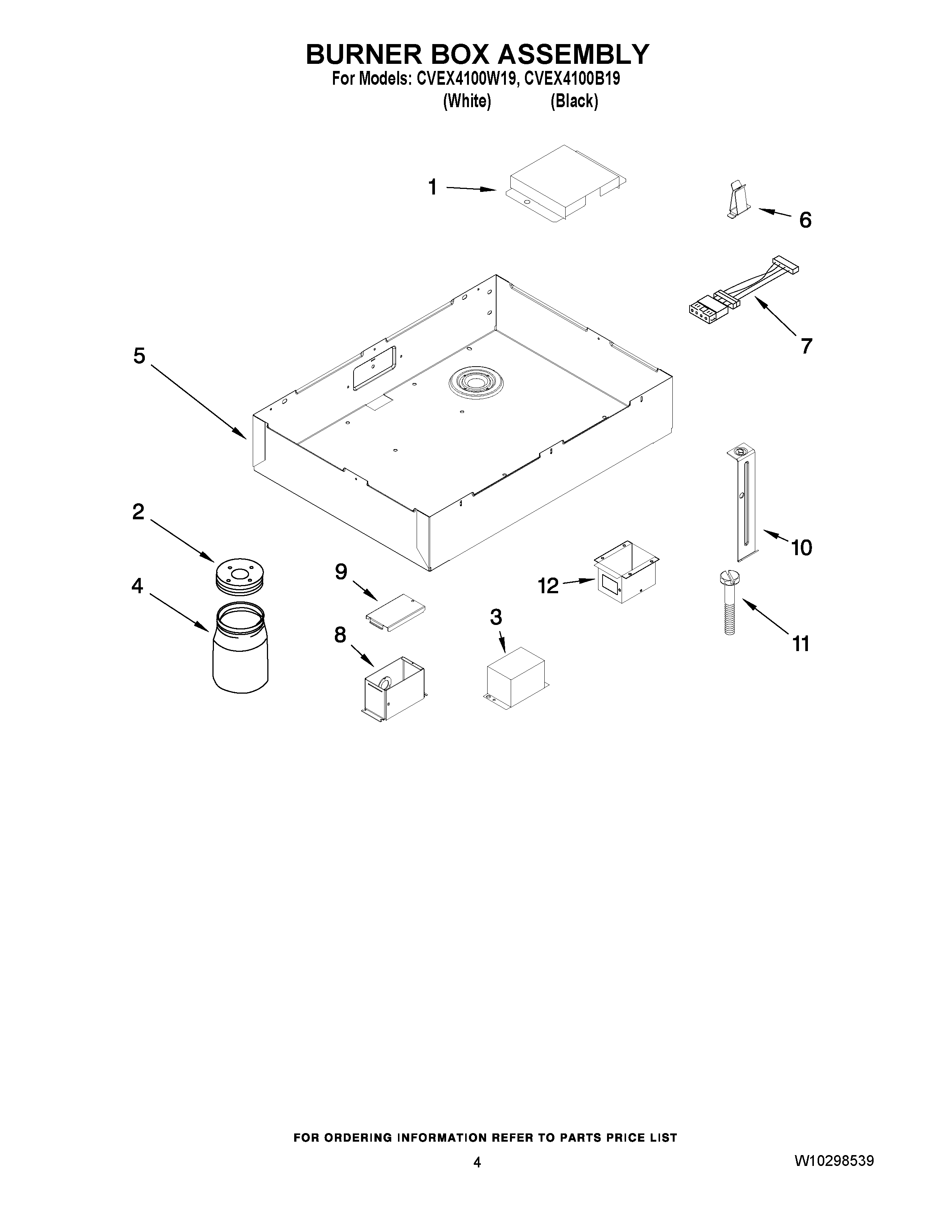

CVEX4100B19 03 – BURNER BOX ASSEMBLY

Products

Position	Product
1	MAY 4005F524-80
2	MAY 8312P123-60
3	COVER, WIRE HARNESS
4	JAR, DRAIN
5	MAY 4011F296-80
6	MAY 8038P004-60
7	RECEPTACLE (RIGHT)
8	MAY 4006W165-51
9	COVER, JUNCT. BOX
10	MAY 8020P088-60
11	SCREW, 1/4-20 X5.0
12	MAY 4005F528-51
12	MAY 4006W132-51
