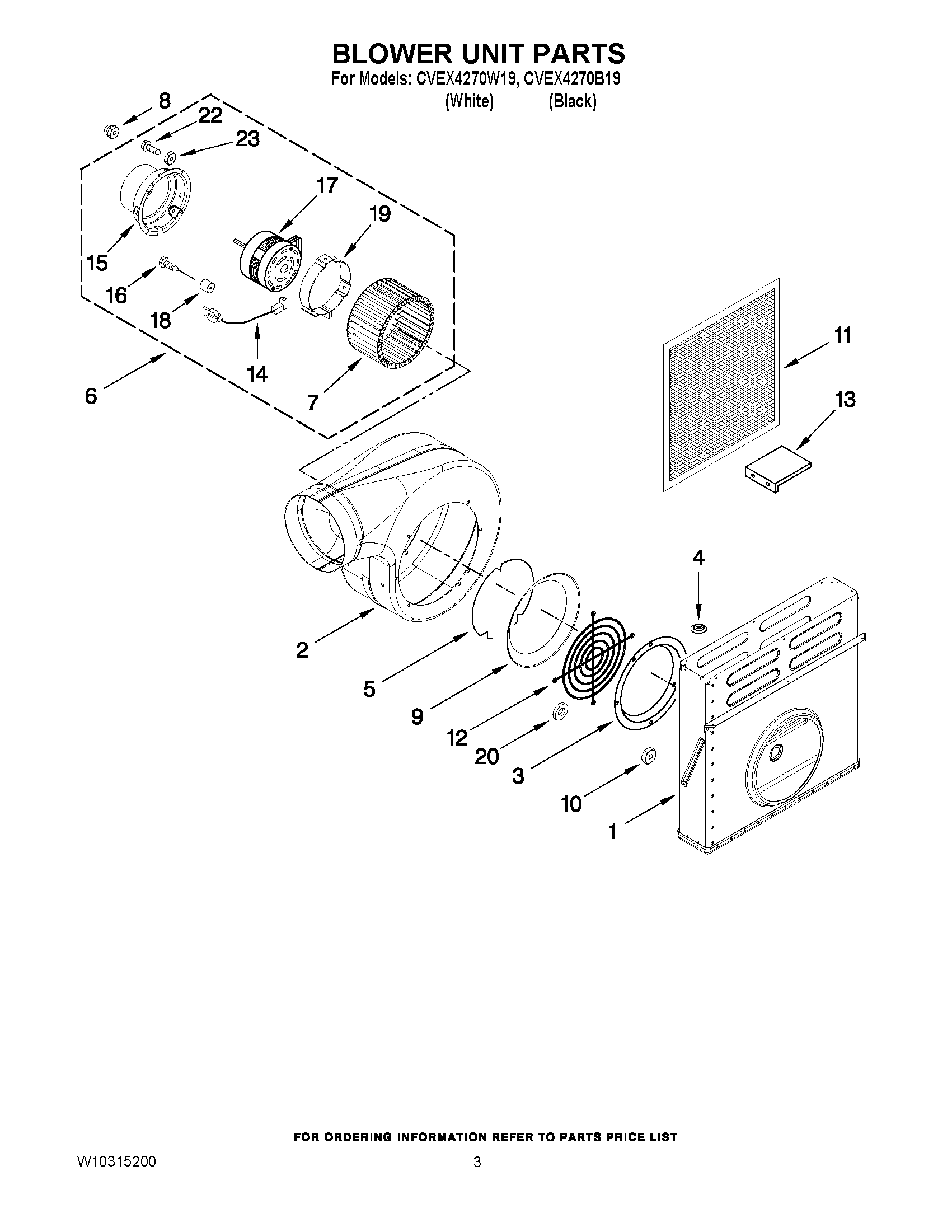

CVEX4270B19 02 – BLOWER UNIT PARTS

Products

Position	Product
1	LINER (NOT A SERVICEABLE PART)
2	MAY 2822W001-80
3	RING, INLET
4	PLUG, HOLE
5	MAY 8038P003-60
6	MOTOR, BLOWER COMPLETE ASSEMBLY
7	WHEEL, BLOWER
8	NUT, ACORN
9	RING, RESTRICTOR
10	NUT, LOCK
11	FILTER
12	GUARD, BLOWER
13	MAY 3801F427-80
14	MAY 7402P096-60
15	MAY 4005F513-80
16	WP4159193 Whirlpool Screw
17	MAY 7409P013-60
18	MAY 8038P002-60
19	BAND, MOTOR
20	WASHER
22	SCREW
23	WP7103P027-60 Whirlpool Nut
