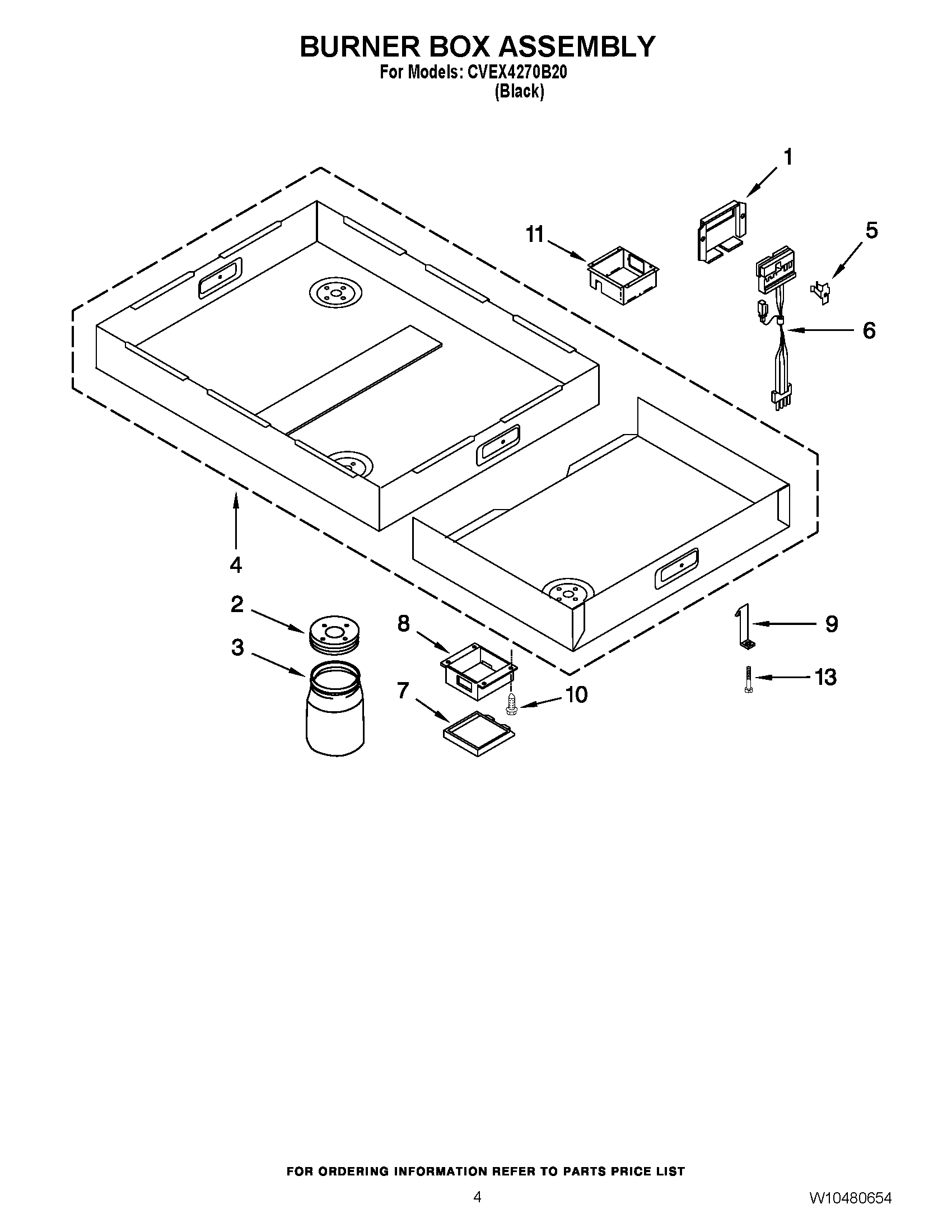

CVEX4270B20 03 – BURNER BOX ASSEMBLY

Products

PositionProduct
1MAY 4005F524-80
2MAY 8312P123-60
3JAR, DRAIN
4MAY 4001F114-80
5MAY 8038P004-60
6RECEPTACLE (RIGHT)
6MAY 7408P082-60
7MAY 4006W165-51
8COVER, JUNCT. BOX
9MAY 8020P088-60
10SCREW, 1/4-20 X5.0
11MAY 4006W131-51
13Screw, Ground
