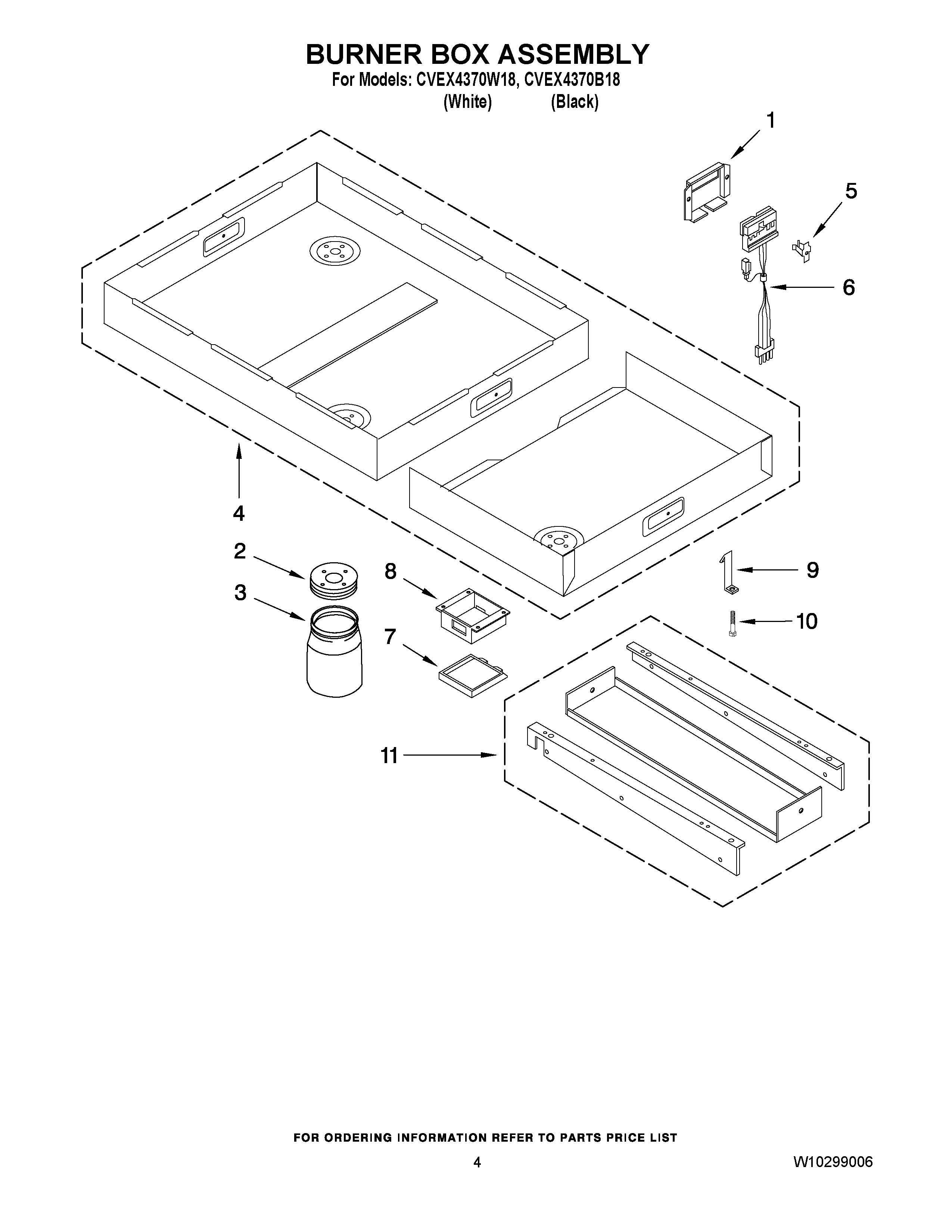

CVEX4370W18 03 – BURNER BOX ASSEMBLY
Written by
in
CVEX4370W18 03 – BURNER BOX ASSEMBLY
Products
Position
Product
1
MAY 4005F524-80
2
MAY 8312P123-60
3
JAR, DRAIN
4
MAY 4011F115-80
4
MAY 4011F114-80
5
MAY 8038P004-60
6
RECEPTACLE (RIGHT)
6
MAY 7408P082-60
6
MAY 7408P080-60
7
MAY 4006W165-51
8
COVER, JUNCT. BOX
9
MAY 8020P088-60
10
SCREW, 1/4-20 X5.0
11
MAY 4005F551-80
11
MAY 4005F552-80
11
MAY 4005F553-80
←
