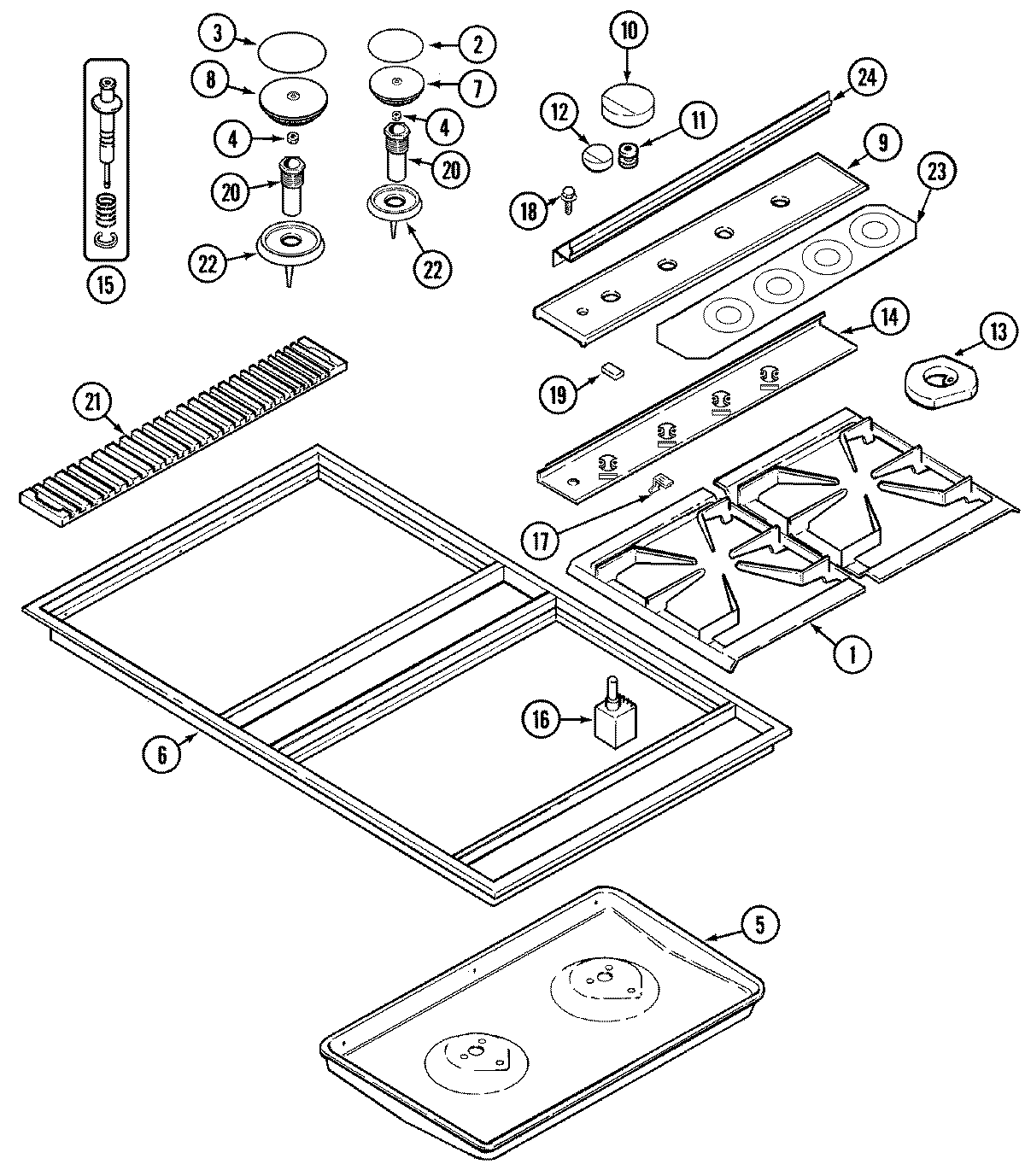

CVG2420B 03 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 71001780
NI	MAY 71002006
1	MAY 71001004
2	MAY 71001072
3	MAY 71001074
4	W10244602 Whirlpool Microwave Nut Assembly
5	MAY 71001002
5	WP90767 Whirlpool Screw
6	MAY 71001003
6	MAY 71002558
7	MAY 71001066
7	MAY 71001078
8	MAY 71001069
8	MAY 71001079
9	MAY 71001093
10	MAY 705800
11	MAY Y706103
11	MAY Y04100306
12	W11715914 Whirlpool Knob
13	MAY Y706061
14	MAY 71001162
14	MAY Y707172
14	MAY 71002559
15	MAY 71001299
15	MAY 71001695
15	MAY 71001694
16	MAY 71001303
17	MAY 71001059
17	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
18	MAY Y04100274
19	MAY 71001384
19	MAY 71001297
19	MAY 71001158
20	MAY 71001082
21	MAY Y706005
22	MAY 71001080
22	MAY 71001076
22	MAY 71001077
22	MAY 71001081
23	MAY 71002580
24	MAY 71002566
