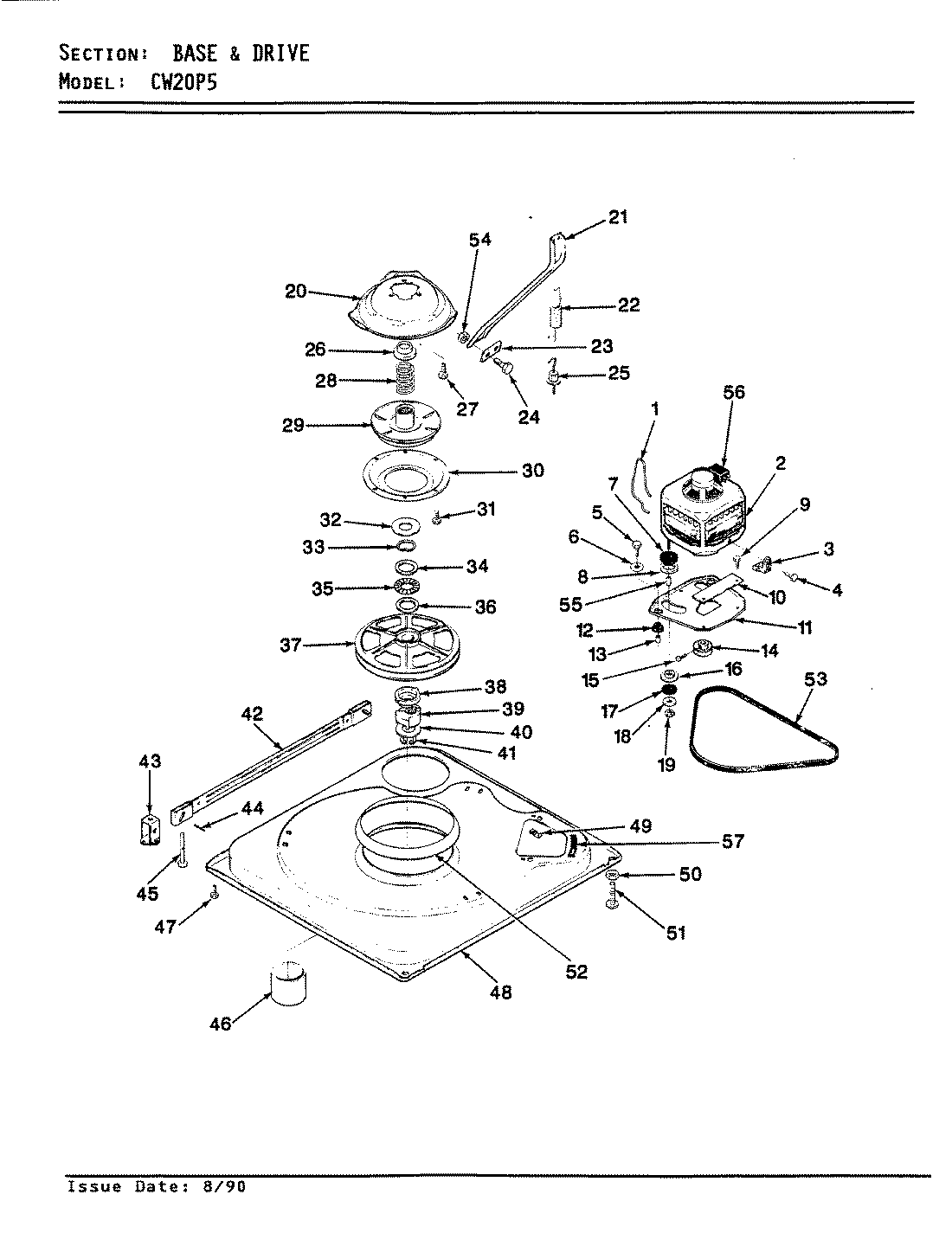

CW20P5W 02 – BASE & DRIVE (REV. E)

Products

Position	Product
1	MAY 35-0235
2	MAY LA-2002
2	MAY 35-2030
3	MAY 33-9945
4	MAY 25-7418
5	MAY 25-7833
6	MAY 25-7834
7	WP33-9946 Whirlpool Isolator
8	MAY 33-9944
9	MAY 25-3083
10	MAY 33-9947
11	MAY 35-2021
12	MAY 33-9941
13	MAY 25-7831
14	W10143344 Whirlpool Pulley Assembly
15	MAY 25-7117
16	MAY 33-9943
17	WP33-9967 Whirlpool Washer Assembly
18	MAY 25-7047
19	WPY707702 Whirlpool Locknut
20	MAY 35-2015
21	MAY 35-2531
22	MAY 35-2682
22	MAY 35-2681
26	MAY 35-2017
27	MAY 25-7895
28	MAY 35-2112
29	MAY 35-2113
30	MAY 35-2018
31	MAY 25-7359
32	MAY 35-2016
33	MAY 25-7909
34	MAY 35-2318
35	MAY 35-2078
36	MAY 35-2081
37	MAY 35-2683
39	MAY 35-2439
40	MAY 35-2082
41	WP25-7854 Whirlpool Clip
42	MAY 35-2049
43	MAY 35-2046
44	MAY 35-2052
45	MAY 35-2039
45	MAY 35-2050
46	MAY 35-2007
47	WP489483 Whirlpool Screw
48	MAY 35-2815
49	MAY 25-7838
50	MAY 25-7915
51	MAY 35-0772
51	MAY 35-0837
52	MAY 35-2357
53	MAY 35-2320
54	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
55	MAY 25-7830
56	MAY 33-9765
56	MAY 25-7413
57	MAY 35-2065
