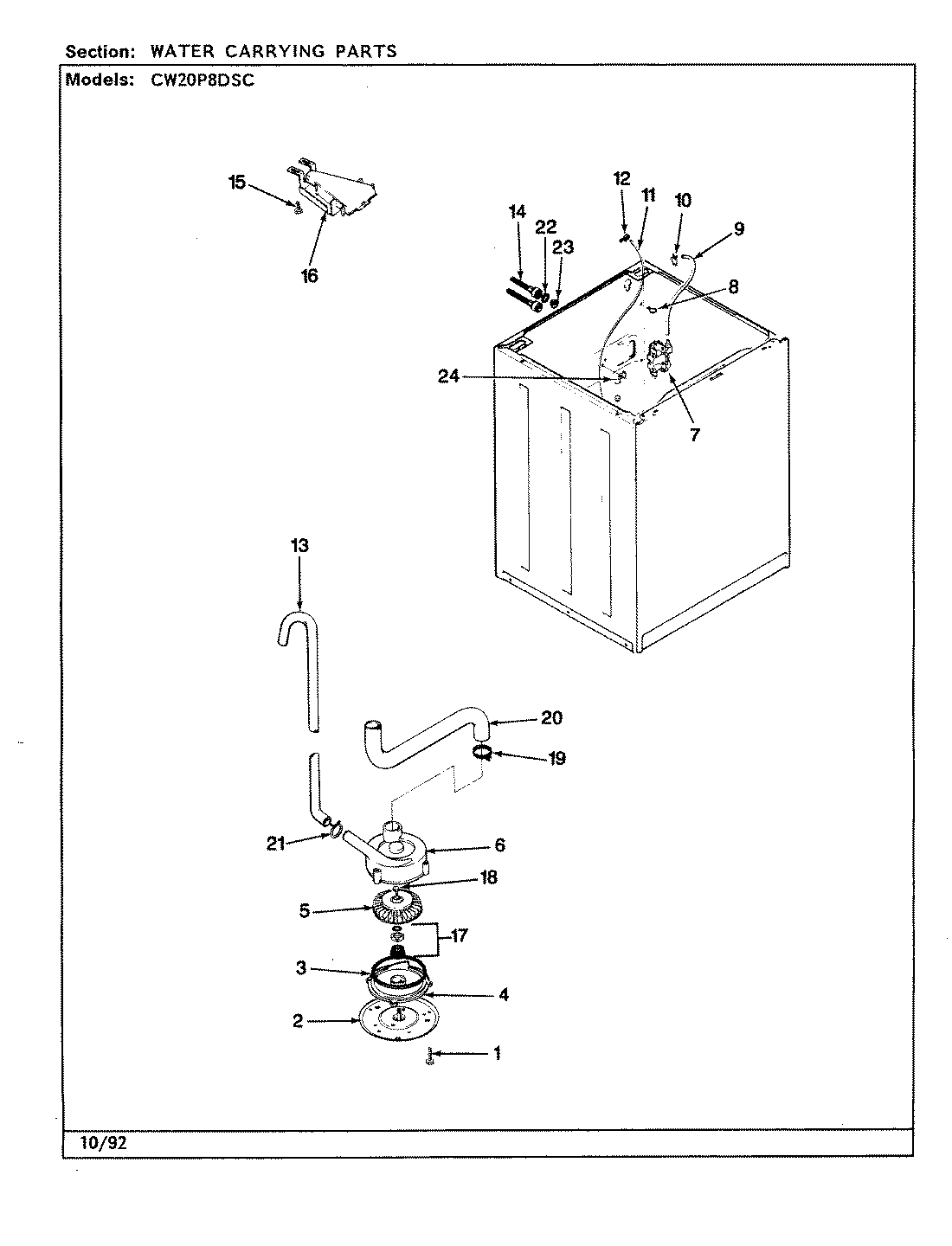

CW20P8DSC 06 – WATER CARRYING (CW20P8DSC)(REV. A-D)

CW20P8DSC 06 – WATER CARRYING (CW20P8DSC)(REV. A-D)

Written by

in

CW20P8DSC 06 – WATER CARRYING (CW20P8DSC)(REV. A-D)

Products

PositionProduct
1MAY 25-7405
2MAY 33-6035
3MAY 33-6032
4MAY 35-2058
5WP35-6465 Whirlpool Drain Pump
6MAY 35-2056
6MAY 35-2099
6MAY 35-2344
7MAY 35-2376
7WP25-7220 Whirlpool Cabinet Clip
912002749 Whirlpool Flume Hose Kit
11MAY 35-2261
11MAY 35-2322
12MAY 33-6099
13MAY 33-9537
13MAY 35-2804
14MAY 35-0873
14FILL HOSE 5' W/WASHER
15WP90767 Whirlpool Screw
16MAY 35-2051
17MAY 35-0707
18MAY 25-7894
19MAY 25-6069
19WP285655 Whirlpool Hose Clamp
20MAY 35-2982
20WP21001915 Whirlpool Hose Tub
22MAY 25-7048
23MAY 33-7313
24WP596669 Whirlpool Hose Clamp
