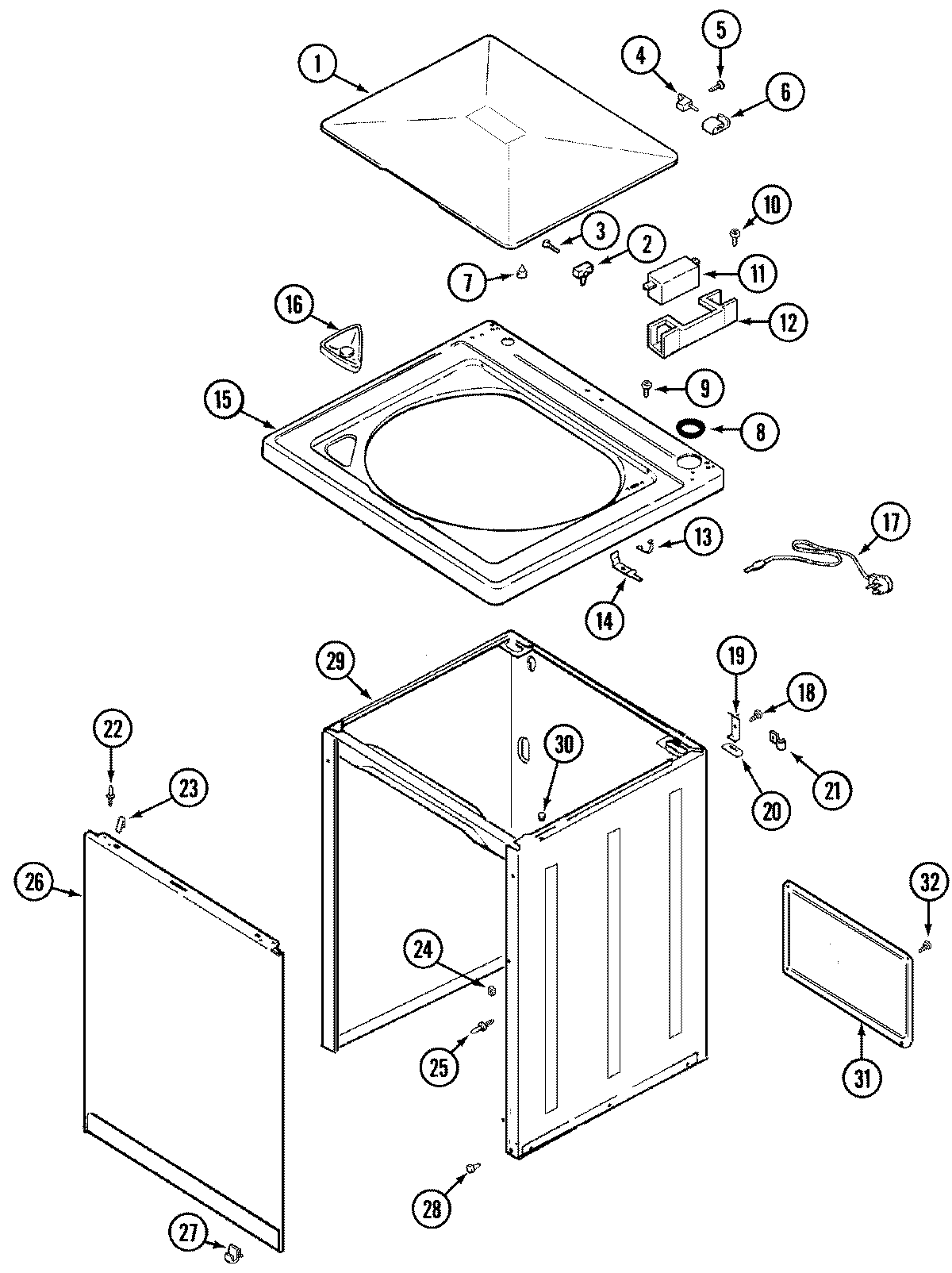

CW20T8V 04 – TOP ASSEMBLY (CW20T8V)

Products

Position	Product
1	MAY 35-2026
2	MAY 25-7436
2	WP43-0057 Whirlpool Lid Switch Actuator
3	MAY 25-7438
4	WP35-2045 Whirlpool Hinge Pin
5	WP25-7893 Whirlpool Screw
6	HINGE-LID
7	MAY 35-0581
8	MAY 35-2063
9	MAY 25-7463
10	MAY 21001136
10	MAY 25-7437
11	MAY 21001137
11	MAY 21001148
11	MAY 35-3382
11	MAY 35-2904
12	WP21001135 Whirlpool Housing
12	MAY 35-2795
13	MAY 25-7878
14	MAY 35-3076
14	MAY 21001134
15	MAY 35-2739
16	MAY 21001167
16	MAY 35-2731
17	MAY 35-0680
18	SCREW
19	35-2846 Whirlpool Hinge
20	MAY 35-4128
21	WP596669 Whirlpool Hose Clamp
22	MAY 35-4129
23	WP25-7220 Whirlpool Cabinet Clip
24	MAY 53-0200
24	MAY 25-0224
25	MAY 53-0643
26	MAY 35-2084
27	WP53-0120 Whirlpool Clip
29	MAY 35-2106
30	MAY 33-2653
31	MAY 35-2108
32	MAY 25-7733
