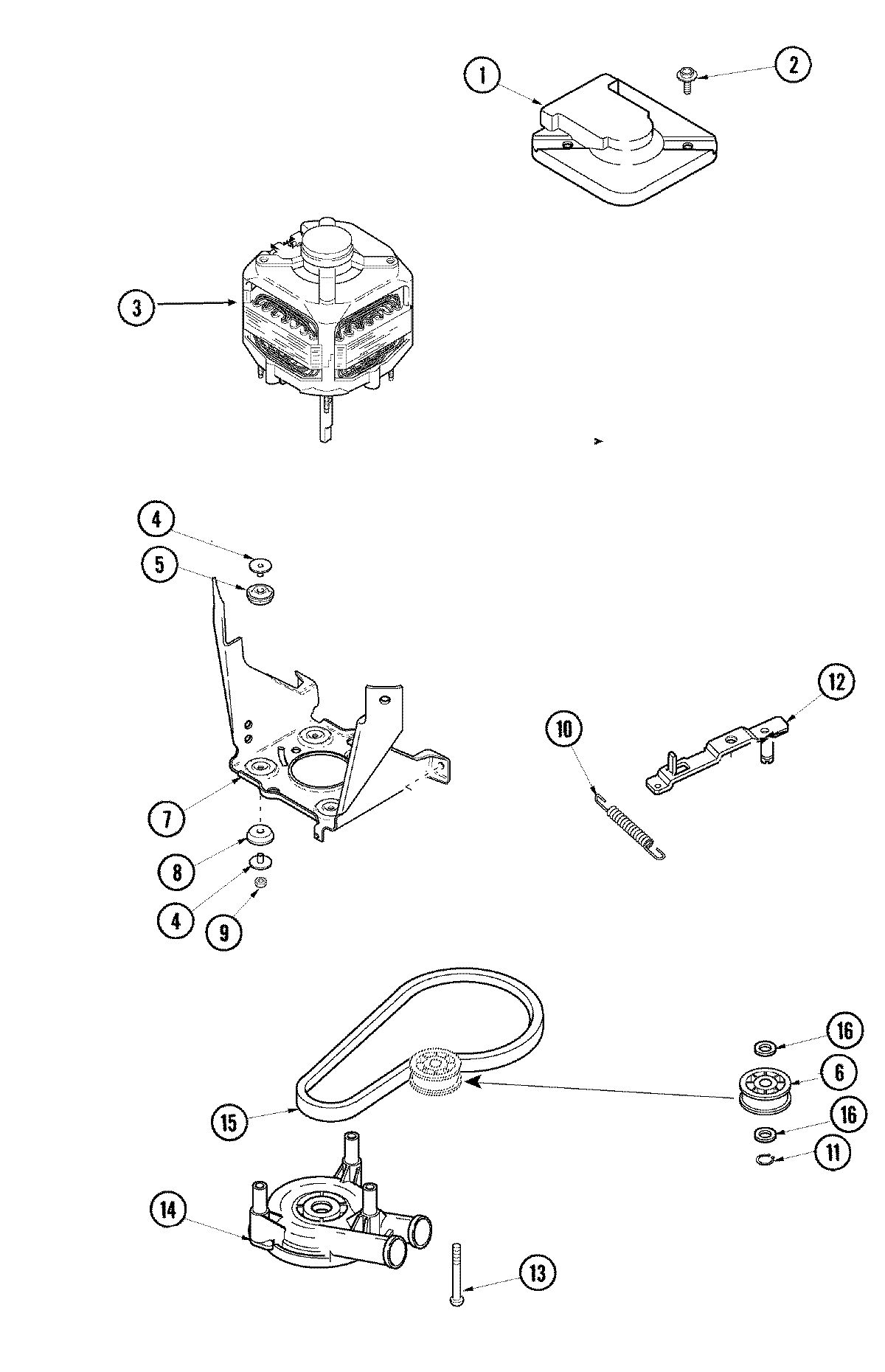

CW9500W 04 – MOTOR, PUMP AND IDLER ASSEMBLY

Products

PositionProduct
1MAY 40112301
2WP3390631 Whirlpool Screw
3MAY 27001055
4MAY 40053701
5MAY 40053801
6MAY 40045001
6MAY 40038901
6WPW10139757 Whirlpool Nut
7MAY 40015502
8MAY 40054301
9MAY 40095101
10MAY 40061401
11MAY 23748
12MAY 27001028
13MAY 40063701
14KIT ASSY PUMP-COMP-(VIB-WELDED
15WP27001006 Whirlpool Drive Belt
16MAY 52549
