CWE4100ACE10 01 – OVEN PARTS
Written by
in

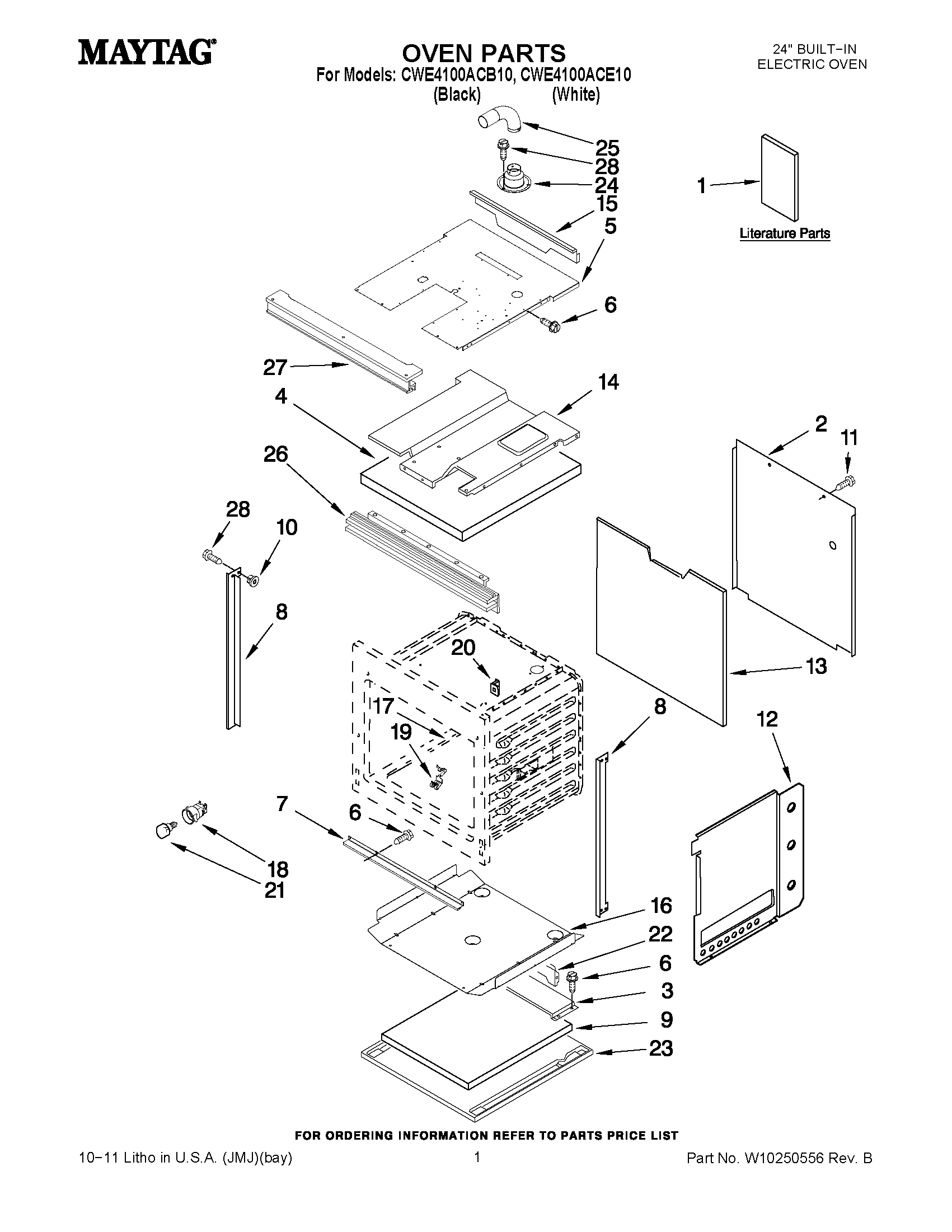

CWE4100ACE10 01 – OVEN PARTS
Products
Position
Product
NI
MAY 7002P160-60
1
TIPS, SAFE COOKING (ENGLISH)
1
MAY W10203506
1
USE & CARE GUIDE
1
MAY W10211157
2
MAY 4002F121-51
3
MAY 3601F005-61
4
MAY 7002P236-60
5
MAY W10214296
6
MAY 7101P356-60
7
EXTRUSION, BOTTOM
7
MAY 7754P004-60
8
MAY 7750P122-60
8
MAY 7750P121-60
8
MAY 7750P118-60
8
MAY 7750P117-60
9
MAY 7002P006-60
10
NUT, SNAP (BLACK)
10
NUT, SNAP (ROUND-WHT)
12
MAY 2618F149-51
12
MAY 2618F150-51
13
MAY 3804F096-51
14
MAY 3804F118-51
15
MAY 3604F101-80
16
MAY 3804F104-51
17
MAY 2205F003-19
18
MAY 7408P035-60
19
WP7112P004-60 Whirlpool Thermal Clip
20
MAY 7112P020-60
21
RANGE ONLY 40W 120V APPL BULB
22
MAY 3807F137-80
23
MAY 4003F049-80
24
MAY 7506P403-60
25
MAY 8026P070-60
26
MAY 7756P123-60
26
MAY 7756P071-60
27
MAY 7756P117-60
27
EXTRUSION, TOP FRT
28
Screw (2) (Black)
←
