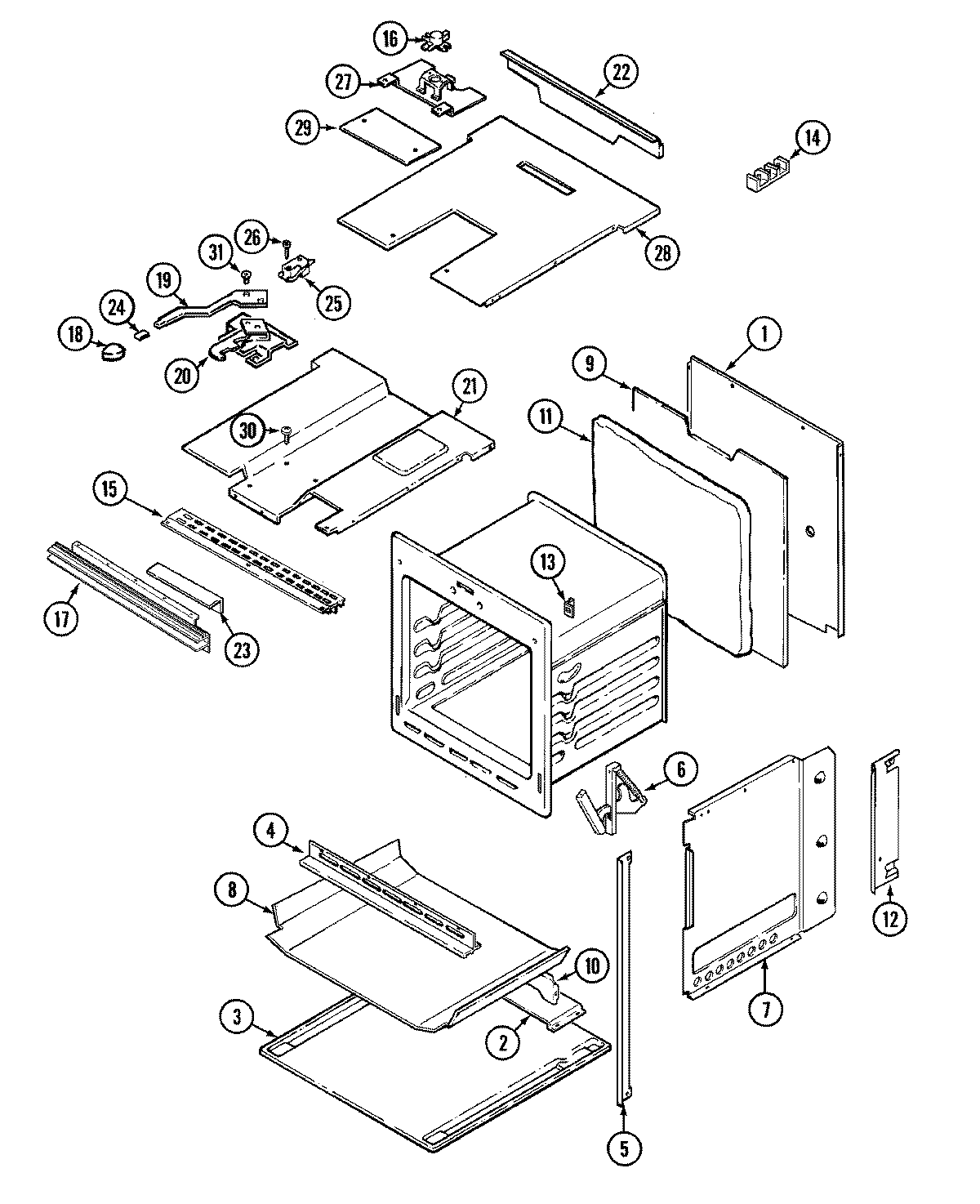

CWE4800ACB 01 – BODY (CWE4800ACB/ACE)

Products

Position	Product
NI	WP98008545 Whirlpool Screw
1	MAY 4002F121-51
2	BAFFLE BASE
3	MAY 4003F011-80
4	MAY 74001846
4	MAY 7706P153-60
5	MAY 74001570
5	MAY 7750P103-60
5	MAY 7750P105-60
5	MAY 74001569
6	74001984 Whirlpool Stove Door Hinge
6	MAY 7106P037-60
7	MAY 2618F114-51
7	MAY 2618F113-51
8	MAY 7002P163-60
8	MAY 3804F104-51
9	MAY 3804F096-51
10	SUPPORT, LOWER
11	MAY 7002P153-60
11	MAY 7002P154-60
12	MAY 3601F244-51
13	CLIP, OVEN FRONT
14	MAY 7401P038-60
15	EXTRUSION, TOP FRONT
17	MAY 7103P051-60
17	MAY 7756P070-60
17	NUT, SNAP (ROUND-WHT)
18	MAY 7701P132-60
19	MAY 74003005
19	MAY 5700A221-31
20	8002P072-60 Whirlpool Door Latch
21	MAY 3804F118-51
22	MAY 3604F101-80
23	MAY 3604F048-80
24	MAY 7112P112-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
25	MAY 7403P347-60
26	MAY 7101P330-60
27	MAY 3801F128-45
28	MAY 74009403
28	MAY 4005F452-51
29	MAY 4005F160-45
30	MAY 7101P356-60
31	WP4159193 Whirlpool Screw
