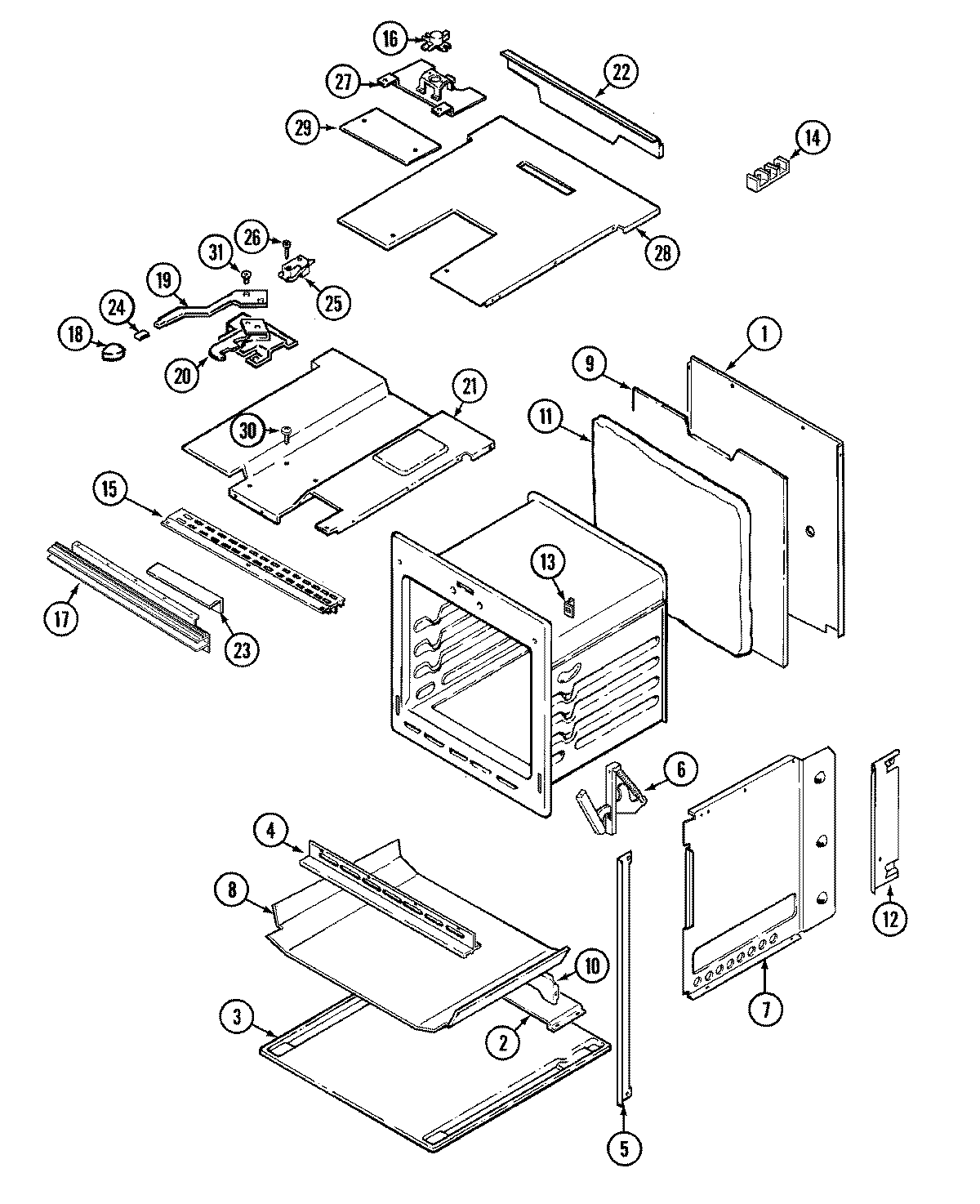

CWE4800ACE 01 – BODY (CWE4800ACB/ACE)

Products

Position	Product
1	MAY 4002F121-51
2	BAFFLE BASE
3	MAY 4003F011-80
4	MAY 74001957
4	MAY 74001418
5	MAY 74001563
5	MAY 74001415
5	MAY 74001414
5	MAY 74001564
6	74001984 Whirlpool Stove Door Hinge
6	MAY 7106P037-60
7	MAY 2618F114-51
7	MAY 2618F113-51
8	MAY 3804F104-51
8	MAY 7002P163-60
9	MAY 3804F096-51
10	SUPPORT, LOWER
11	MAY 7002P154-60
11	MAY 7002P153-60
12	MAY 3601F244-51
13	CLIP, OVEN FRONT
14	MAY 7401P038-60
15	MAY 74001420
17	MAY 74003958
17	MAY 74001419
17	NUT, SNAP (ROUND-WHT)
17	MAY 7103P051-60
18	MAY 7701P133-60
19	MAY 5700A221-31
19	MAY 74002973
20	8002P072-60 Whirlpool Door Latch
21	MAY 3804F118-51
22	MAY 3604F101-80
23	MAY 3604F048-80
24	MAY 7112P112-60
24	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
25	MAY 7403P347-60
26	MAY 7101P330-60
27	MAY 3801F128-45
28	MAY 74009403
28	MAY 4005F452-51
29	MAY 4005F160-45
30	MAY 7101P356-60
31	WP4159193 Whirlpool Screw
32	WP98008544 Whirlpool Screw Assembly
