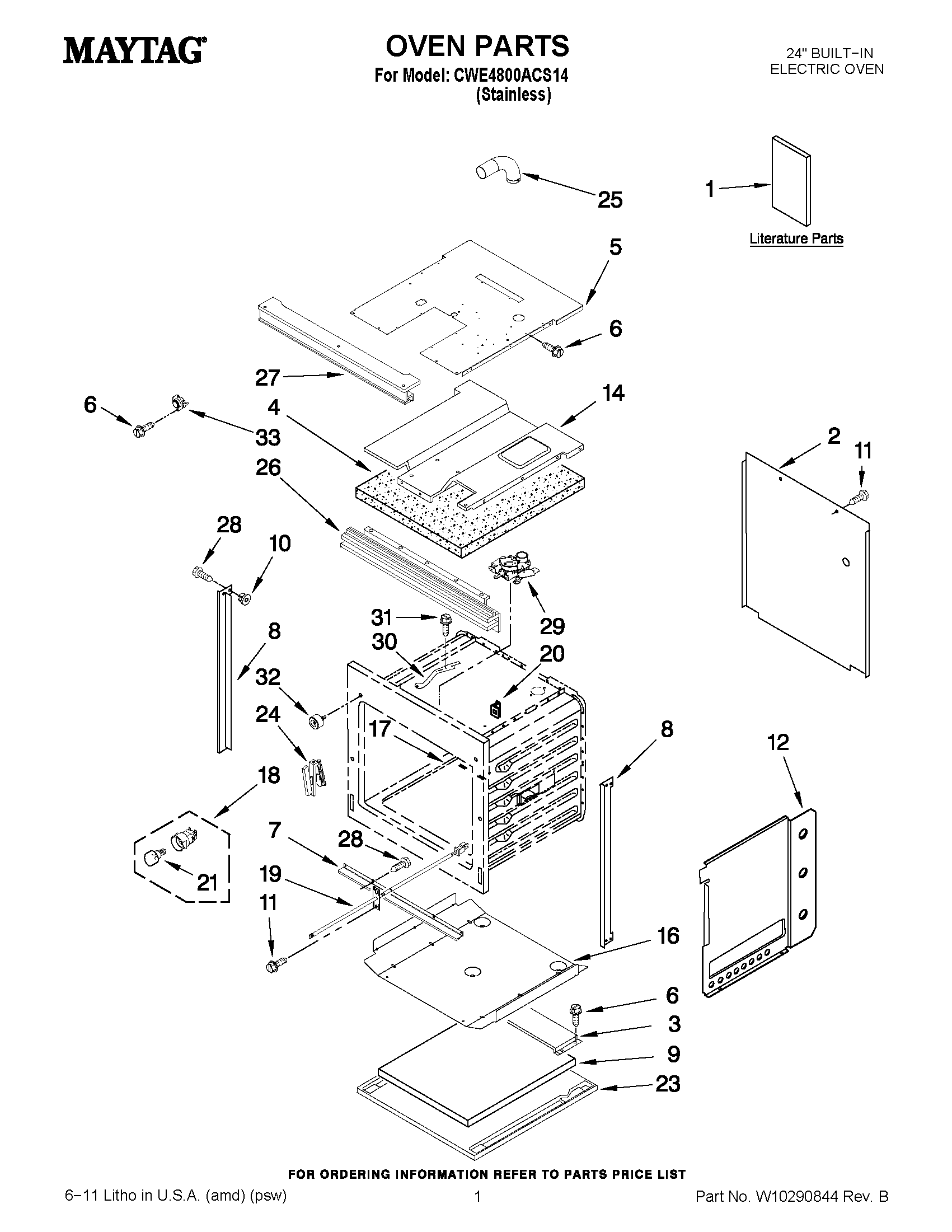

CWE4800ACS14 01 – OVEN PARTS

CWE4800ACS14 01 – OVEN PARTS

Written by

in

CWE4800ACS14 01 – OVEN PARTS

Products

PositionProduct
1MAY W10196374
1TIPS, SAFE COOKING (ENGLISH)
1TIPS, SAFE COOKING (FRENCH)
1MAY W10203502
1MAY W10203506
2MAY 4002F121-51
3MAY 3601F005-61
4MAY 7002P153-60
5MAY W10214296
6MAY 7101P356-60
7EXTRUSION, BOTTOM
8MAY 7750P145-60
8MAY 7750P144-60
9MAY 7002P163-60
10NUT, SNAP (ROUND-WHT)
12MAY 2618F149-51
12MAY 2618F150-51
14MAY 3804F118-51
16MAY 3804F104-51
17MAY 2205F003-19
18MAY 7407P181-60
19SENSOR, OVEN
20MAY 7112P020-60
21RANGE ONLY 40W 120V APPL BULB
23MAY 4003F049-80
24HINGE, DOOR
25MAY 8026P070-60
26MAY W10218753
27EXTRUSION, TOP FRONT
28Screw (2) (Black)
29MAY 8002P072-60
30MAY 8009P055-60
31WP4159193 Whirlpool Screw
32ASSEMBLY, BUMPER
