CWE5100ACB10 01 – OVEN PARTS – Aparts

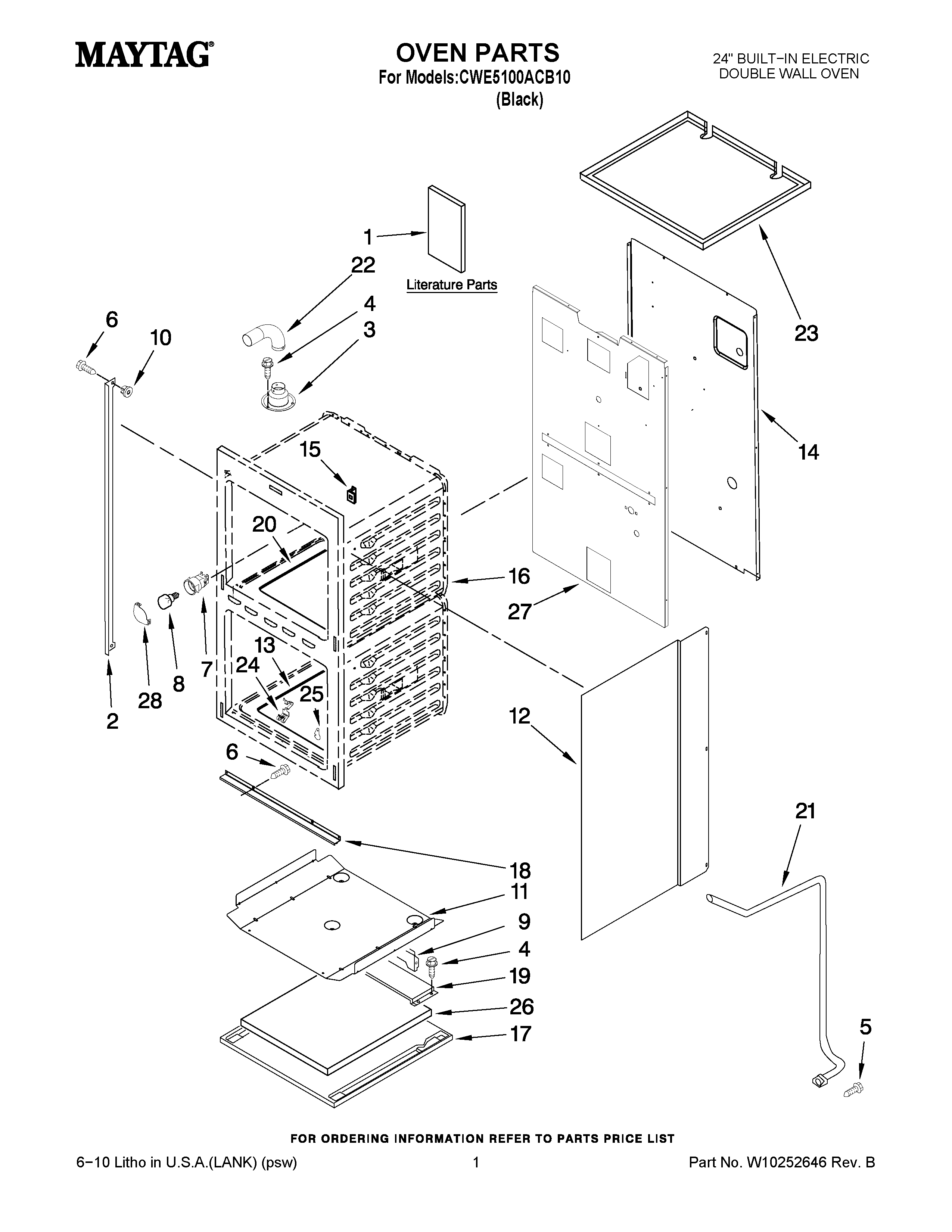

CWE5100ACB10 01 – OVEN PARTS

Products

Position	Product
NI	MAY 7002P171-60
NI	MAY 7002P160-60
1	TIPS, SAFE COOKING (ENGLISH)
1	MAY W10203506
1	MAY W10211157
1	USE & CARE GUIDE
2	MAY 7750P115-60
2	MAY 7750P116-60
3	MAY 7506P403-60
4	MAY 7101P356-60
6	Screw (2) (Black)
7	MAY 7408P035-60
8	MAY W10132113
9	MAY 3807F135-80
10	NUT, SNAP (ROUND-WHT)
10	MAY 7103P051-60
11	MAY 3804F104-51
12	MAY 2618F154-51
12	MAY 2618F153-51
13	MAY 2205F004-19
14	MAY 4002F143-51
15	MAY 7112P020-60
16	LINER (NOT A SERVICEABLE PART)
17	MAY 4003F049-80
18	EXTRUSION, BOTTOM
19	MAY 3601F005-61
20	MAY 2205F003-19
21	MAY 8026P014-60
22	MAY 8026P070-60
23	MAY 3804F054-51
24	WP7112P004-60 Whirlpool Thermal Clip
25	MAY 4005F011-35
26	MAY 7002P006-60
27	MAY 3804F286-51
28	MAY 3604F037-44
