CWE5800ACB25 01 – OVEN PARTS – Aparts

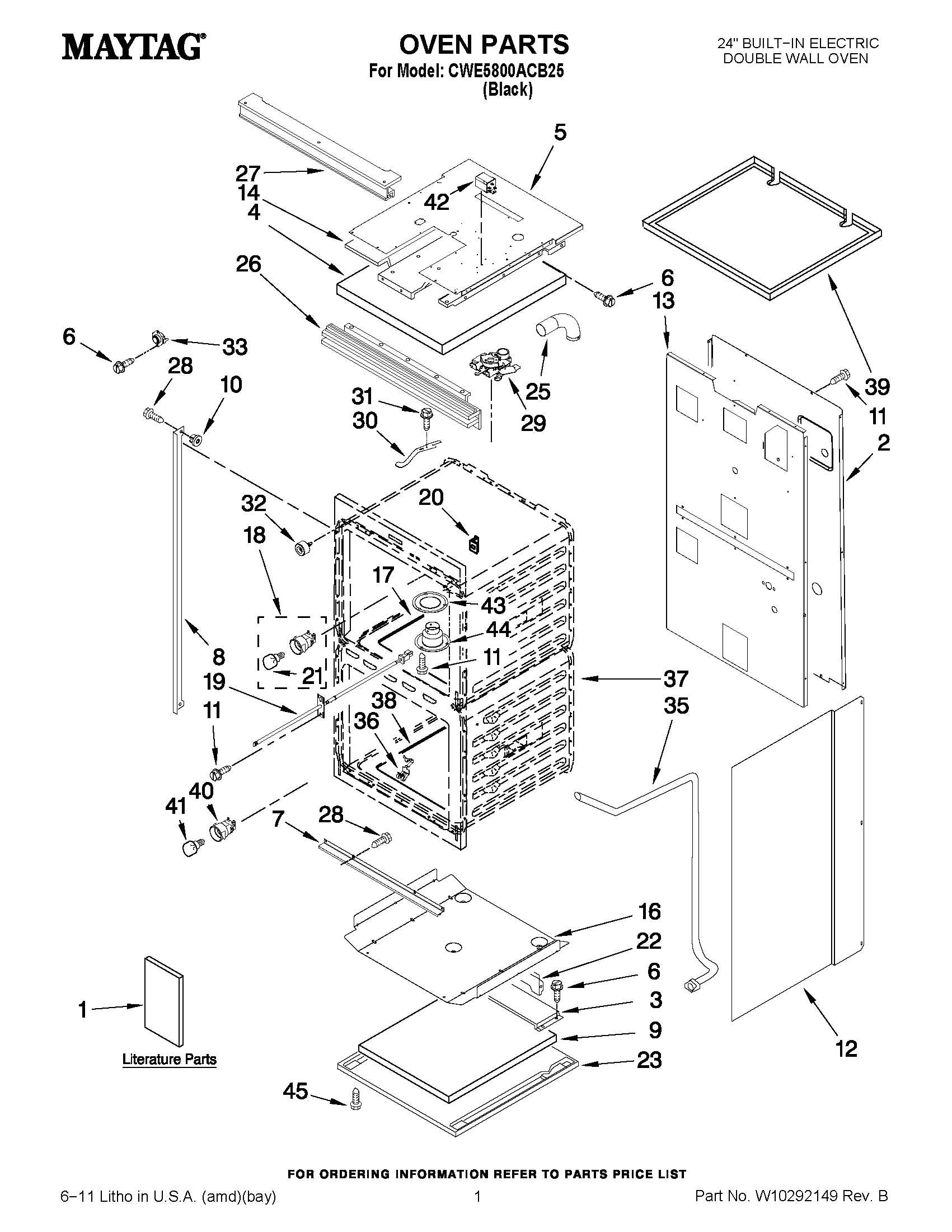

CWE5800ACB25 01 – OVEN PARTS

Products

Position	Product
1	MAY W10196374
1	TIPS, SAFE COOKING (ENGLISH)
1	TIPS, SAFE COOKING (FRENCH)
1	MAY W10203502
1	MAY W10203506
2	MAY 4002F143-51
3	MAY 3601F005-61
4	MAY 7002P157-60
5	MAY W10214296
6	MAY 7101P356-60
7	EXTRUSION, BOTTOM
8	MAY 7750P149-60
8	MAY 7750P148-60
9	MAY 7002P163-60
10	NUT, SNAP (ROUND-WHT)
12	MAY 2618F153-51
12	MAY 2618F154-51
13	MAY 3804F286-51
14	MAY 3804F118-51
16	MAY 3804F104-51
17	MAY 2205F003-19
18	MAY 7407P181-60
19	SENSOR, OVEN
20	MAY 7112P020-60
21	RANGE ONLY 40W 120V APPL BULB
22	MAY 3807F135-80
23	MAY 4003F049-80
25	MAY 8026P070-60
26	MAY W10218753
27	EXTRUSION, TOP FRONT
28	Screw (2) (Black)
29	MAY 8002P072-60
30	MAY 8009P055-60
31	WP4159193 Whirlpool Screw
32	ASSEMBLY, BUMPER
35	MAY 8026P014-60
36	WP7112P004-60 Whirlpool Thermal Clip
37	LINER (NOT A SERVICEABLE PART)
38	MAY 2205F004-19
39	MAY 3804F054-51
40	MAY 7408P035-60
41	MAY W10132113
42	RELAY
43	MAY 7201P016-60
44	MAY 7505P321-60
45	SCREW (10ABX1.0-ZN)
