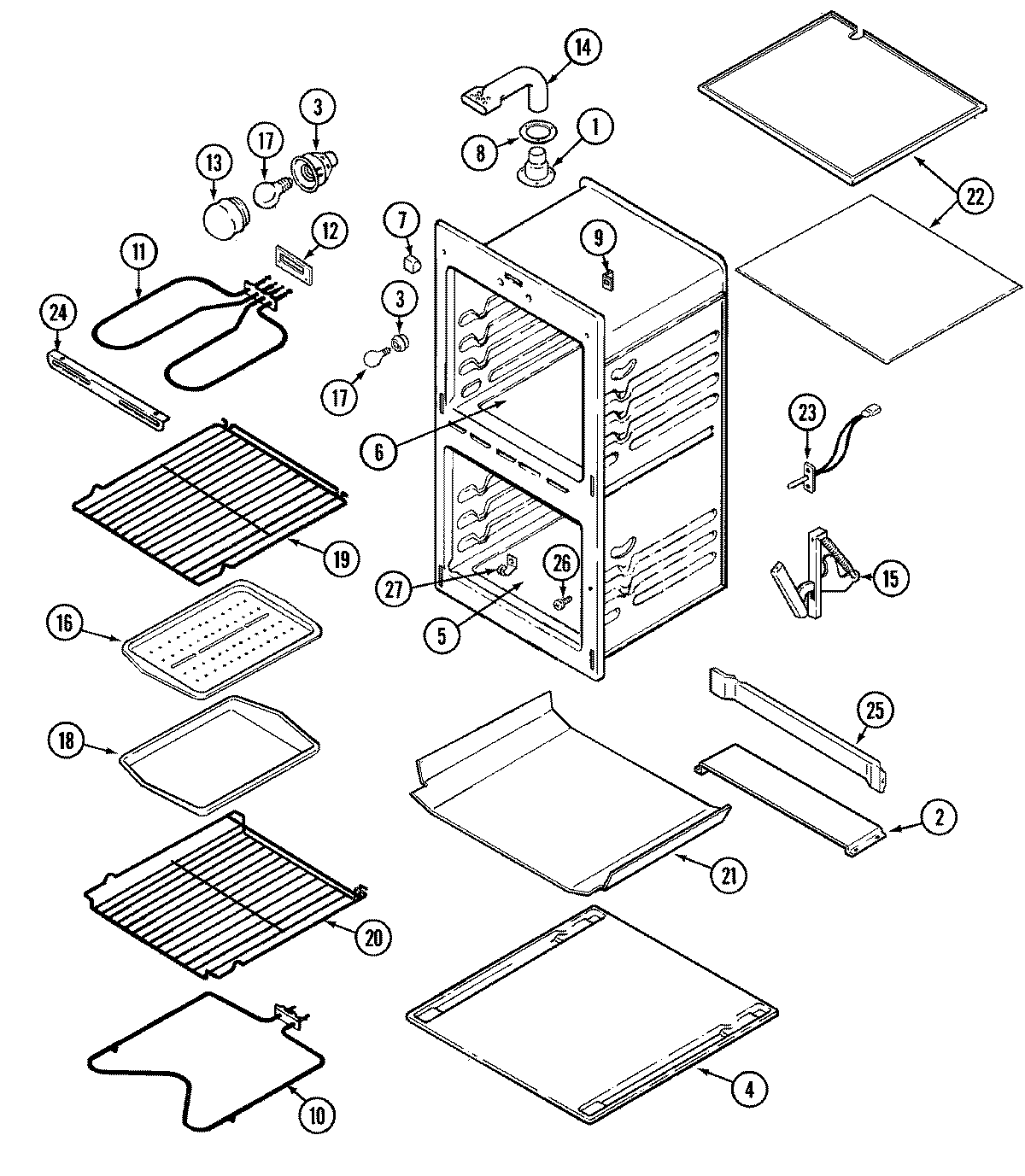

CWE5800ACE 06 – OVEN (CWE5800ACB/ACE)

Products

Position	Product
1	MAY 7505P226-60
2	MAY 3601F005-80
3	WP7407P182-60 Whirlpool Lamp
3	MAY 7101P084-60
3	MAY 7408P035-60
4	MAY 4003F011-80
4	SCREW (10ABX1.0-ZN)
5	MAY 2205F004-19
6	MAY 2205F003-19
7	MAY 8003P009-60
8	MAY 7201P016-60
9	MAY 7112P020-60
9	MAY 7101P356-60
10	WPY04000066 Whirlpool Oven Bake Element
10	MAY 7406P075-60
11	MAY 7101P065-60
11	MAY 7406P090-60
12	MAY 7201P003-60
13	WP9781049 Whirlpool Light Lens
14	MAY 8026P022-60
15	MAY 7106P042-60
15	74001984 Whirlpool Stove Door Hinge
15	MAY 74001882
15	MAY 7106P037-60
16	MAY Y3413F01619
17	RANGE ONLY 40W 120V APPL BULB
18	MAY Y3401F02019
18	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
19	MAY 7801P005-60
20	MAY 7801P007-60
21	MAY 3804F104-51
22	MAY 7002P163-60
22	MAY 3804F054-51
23	MAY 7430P010-60
24	MAY 3807F176-19
25	MAY 3807F135-80
26	WP4159193 Whirlpool Screw
27	WP7112P004-60 Whirlpool Thermal Clip
