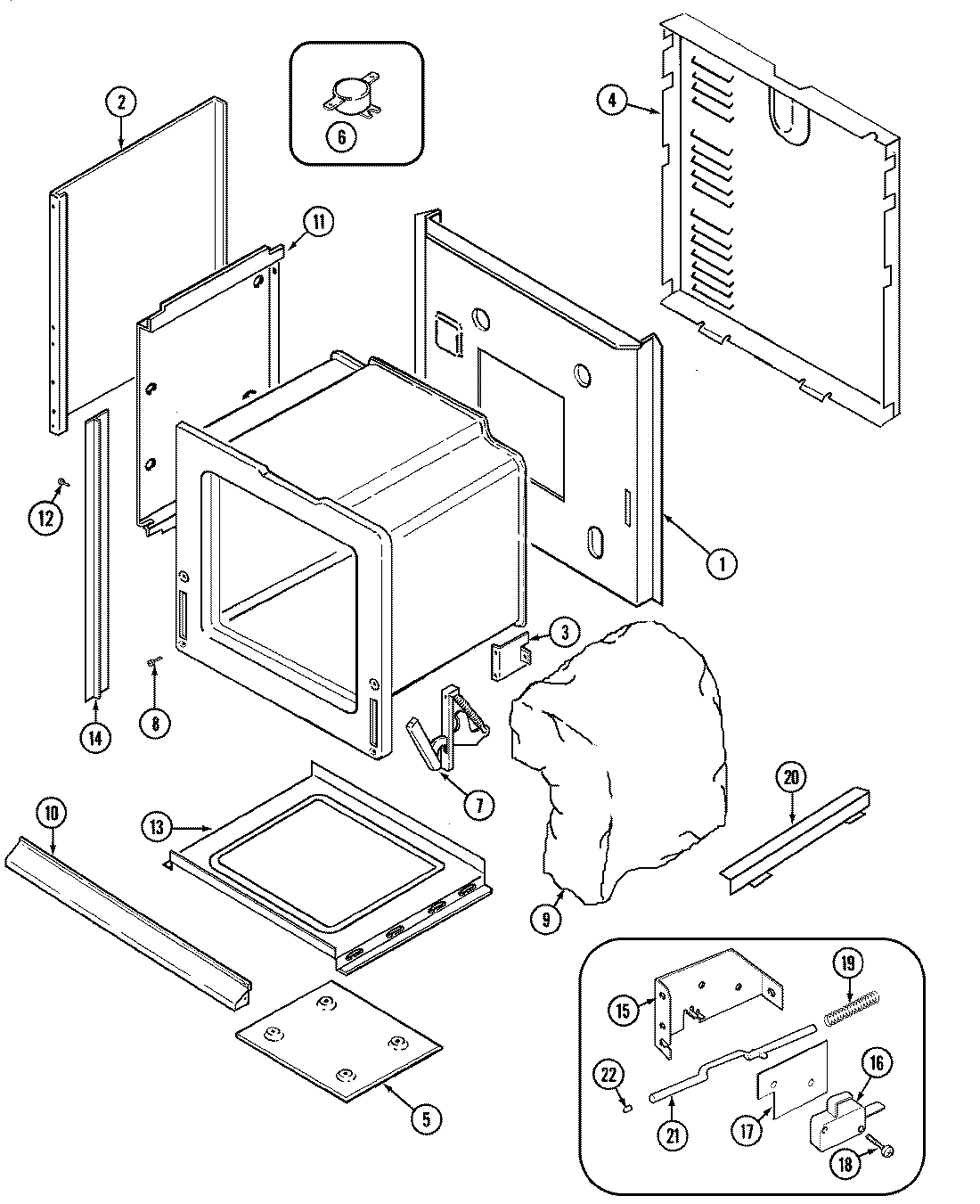

CWE9000BCM 01 – BODY (CWE9000BCM)

CWE9000BCM 01 – BODY (CWE9000BCM)

Products

PositionProduct
1MAY 74001581
2MAY 2618F082-51
3SUPPORT,OVEN REAR
4MAY 4005F434-51
5MAY 74003035
5MAY 3604F189-51
6WP7403P316-60 Whirlpool High Switch
6MAY 7101P313-60
7MAY 7106P057-60
7MAY 74003249
8SCREW (10-24X5/16-NI)
9MAY 74003036
9MAY 74001800
9MAY 74001799
10MAY 74002689
11MAY 74001436
12MAY 74002755
12MAY 74002700
12MAY 74002502
13MAY 74001742
14MAY 74003315
14MAY 74002695
14MAY 74002694
14WP74009541 Whirlpool Screw Assembly
14MAY 74003316
15BRACKET, SWITCH ACTUATOR
16MAY 74001628
17MAY 74001872
18MAY 7101P330-60
20MAY 74001627
21MAY 74001630
22MAY 74001631
