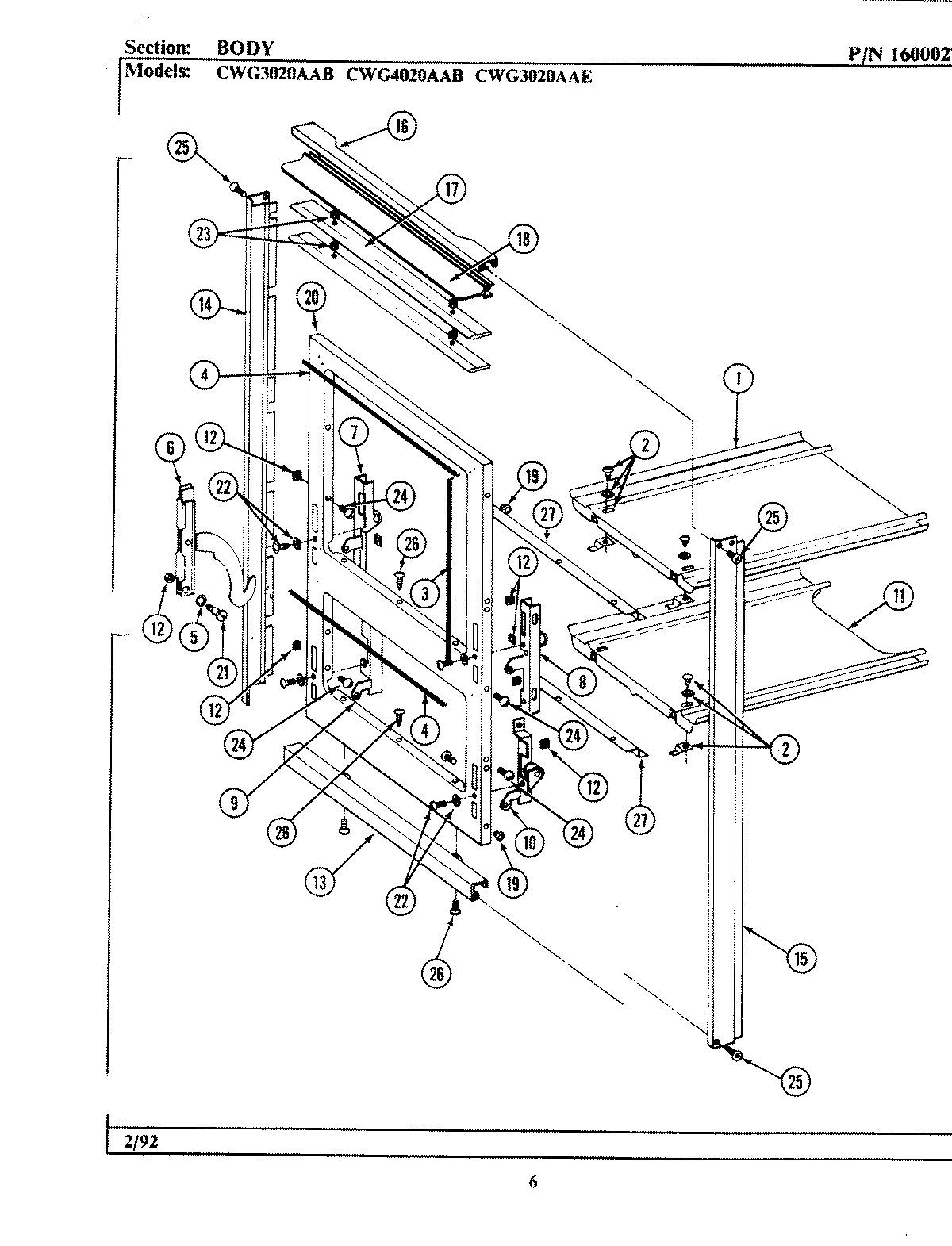

| 1 | MAY 5720A005-23 |
| 2 | MAY 1430315 |
| 3 | MAY 7212P015-60 |
| 4 | WP7212P006-60 Whirlpool Door Seal |
| 5 | MAY 7109P023-60 |
| 6 | MAY 3418A045-35 |
| 7 | MAY 3807A292-34 |
| 8 | MAY 3807A293-34 |
| 9 | MAY 3807A258-34 |
| 10 | MAY 3807A259-34 |
| 11 | SEE NOTE GROUND WIRE, GREEN |
| 12 | MAY 7103P071-60 |
| 13 | MAY 7754P001-60 |
| 14 | MAY 7750P005-60 |
| 15 | MAY 7750P006-60 |
| 16 | MAY 7752P001-60 |
| 17 | MAY 7756P028-60 |
| 18 | MAY 7756P046-60 |
| 19 | MAY 7103P080-60 |
| 20 | MAY 2201F053-23 |
| 21 | MAY 7101P135-60 |
| 22 | MAY 7101P188-60 |
| 23 | MAY 8010P029-60 |
| 24 | WP7101P072-60 Whirlpool Screw |
| 25 | MAY 7101P157-60 |
| 26 | MAY 7101P061-60 |
| 27 | MAY 3807F255-23 |
