CWG3600AAB 04 – OVEN/BODY – Aparts

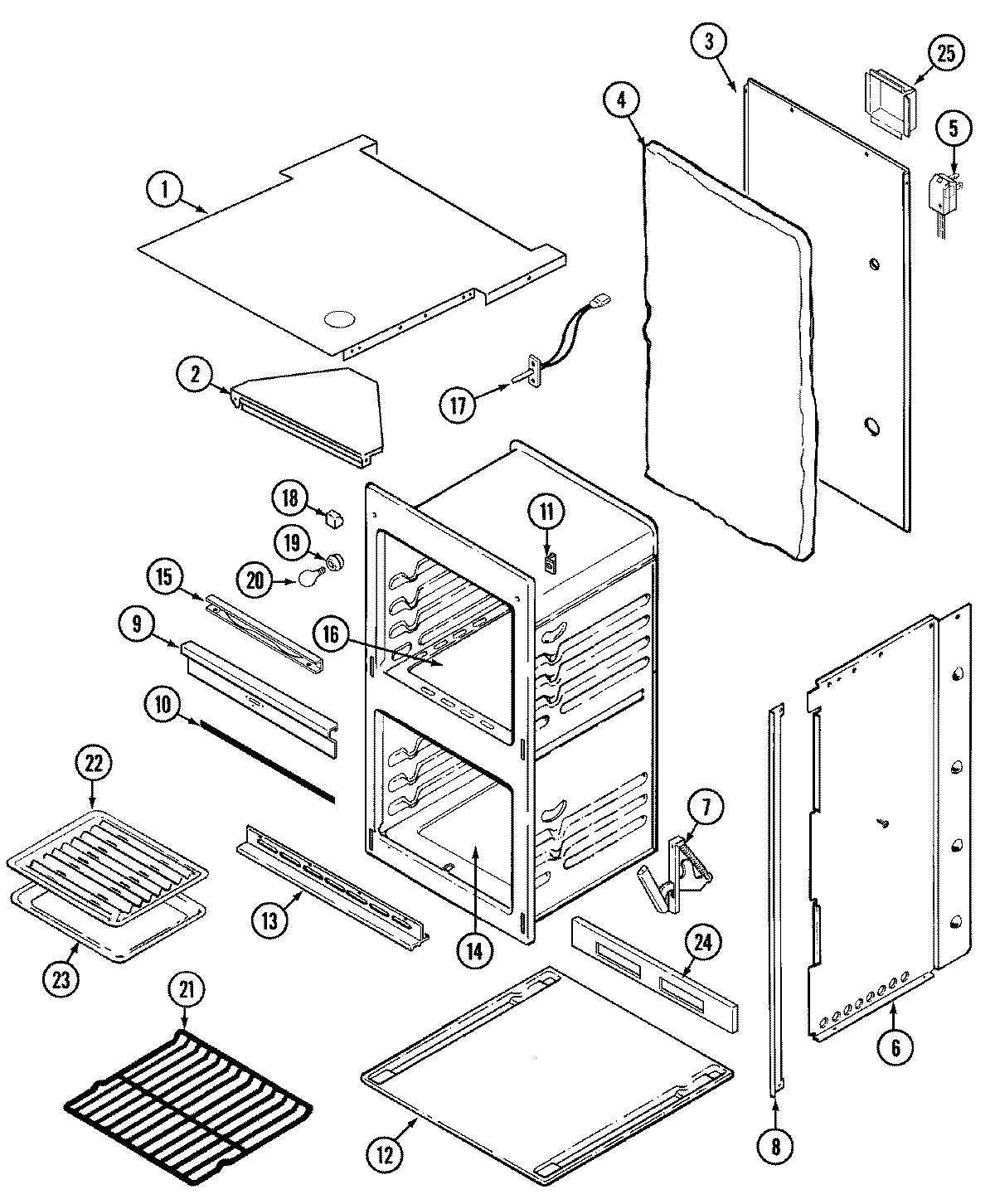

CWG3600AAB 04 – OVEN/BODY

Products

Position	Product
NI	MAY 4005F011-35
NI	MAY 7111P007-60
1	MAY 7401P037-60
1	MAY 8008P004-60
1	MAY 4005F152-51
2	MAY 4006W077-19
3	MAY 74001988
4	MAY 74001850
4	MAY 74001883
5	MAY 74001926
5	MAY 74002963
6	MAY 2618F116-51
6	MAY 2618F115-51
7	MAY 74001882
7	WP4159193 Whirlpool Screw
7	74004059 Whirlpool Door Hinge
7	74001856 Whirlpool Hinge Assembly
8	SCREW
8	MAY 74001903
8	MAY 74001902
8	NUT, SNAP (ROUND-WHT)
9	MAY 3601F109-45
9	MAY 7103P100-60
10	MAY 7212P014-60
11	MAY 7112P020-60
12	MAY 74001925
12	SCREW (10ABX1.0-ZN)
13	MAY 74001846
13	WP98008545 Whirlpool Screw
14	MAY 2205F005-19
15	MAY 3807F029-80
15	MAY 7101P058-60
15	MAY 5720A011-23
16	MAY 2205F008-19
16	MAY 74004661
17	MAY 7430P009-60
18	MAY 8003P009-60
19	MAY 7408P035-60
20	RANGE ONLY 40W 120V APPL BULB
21	W10282521 Whirlpool Rack
21	MAY 7801P005-60
22	MAY Y3413F01619
23	MAY Y3401F02019
24	MAY 3807F139-80
25	MAY 4005F088-80
25	MAY 7101P356-60
27	MAY 7103P040-60
27	MAY 7103P051-60
