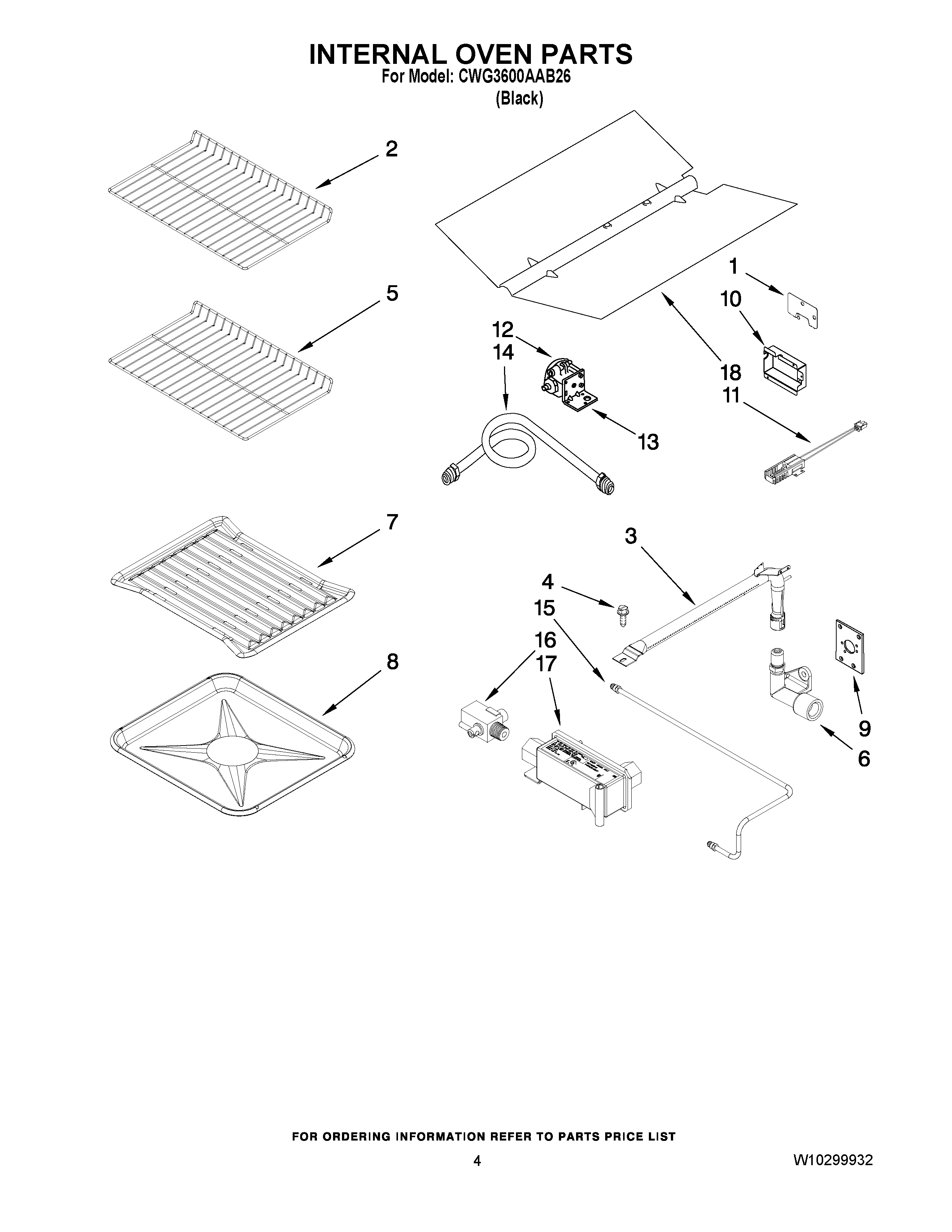

CWG3600AAB26 03 – INTERNAL OVEN PARTS

Products

Position	Product
1	SCREW (10-24X5/16-NI)
1	MAY 4005F421-45
2	MAY 7801P153-60
3	MAY 7505P294-60
5	MAY W10282521
6	MAY 7507P306-60
7	MAY 3413F018-19
8	MAY 3401F075-19
9	MAY 3807F122-34
10	MAY W10204428
10	WP7101P072-60 Whirlpool Screw
11	IGNITOR, OVEN
12	MAY 7510P081-60
13	MAY 3807F466-51
13	MAY 7101P074-60
14	MAY 7506P265-60
15	MAY 7506P300-60
16	MAY 7502P383-60
17	MAY 7101P071-60
17	MAY 7501P217-60
18	MAY 3601F215-45
