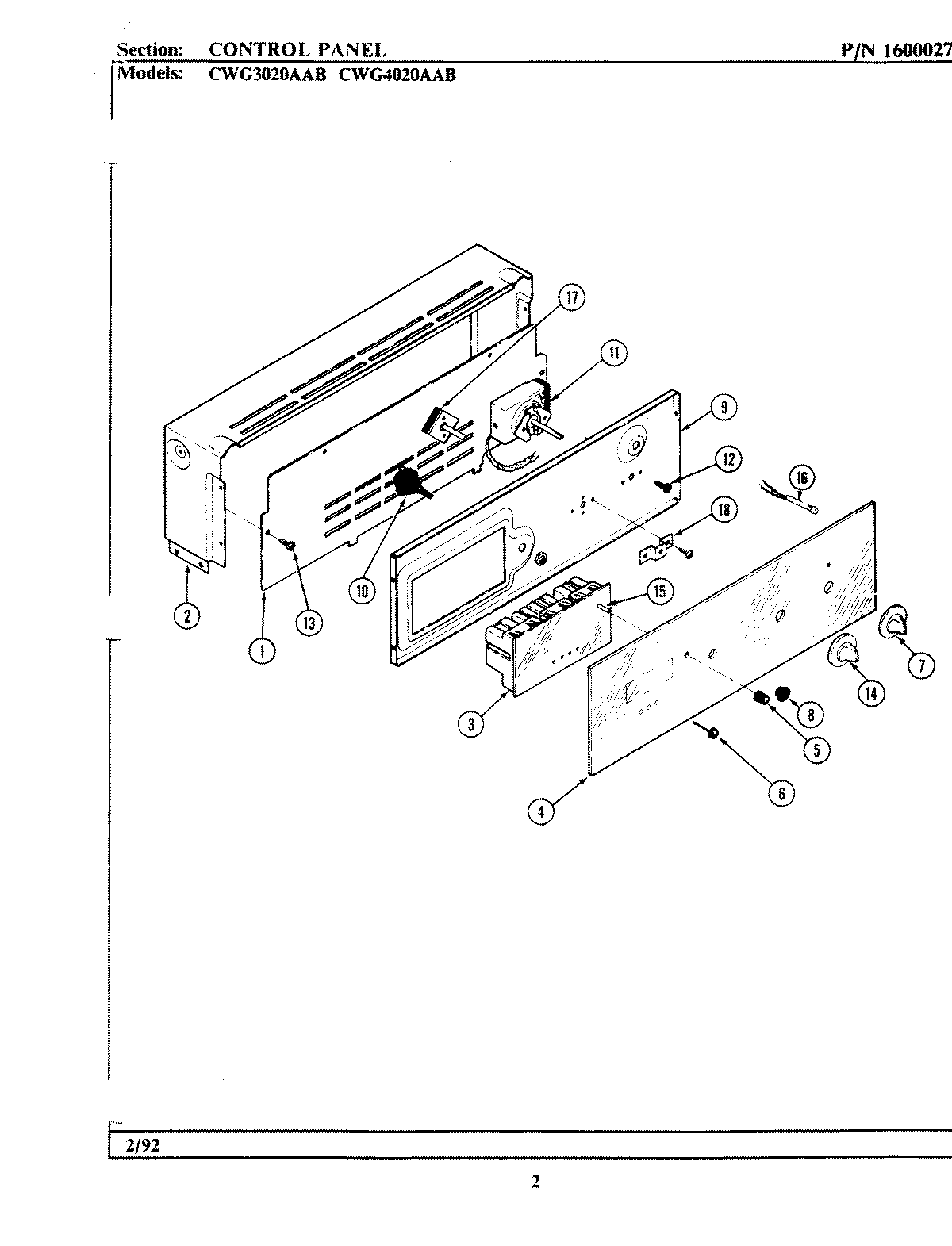

CWG4020AAB 04 – CONTROL PANEL

CWG4020AAB 04 – CONTROL PANEL

Written by

in

CWG4020AAB 04 – CONTROL PANEL

Products

Position	Product
1	MAY 4002F098-51
2	MAY 4006F057-51
3	MAY 7601P130-60K
4	MAY 7902P229-60
5	MAY 7711P172-60
6	MAY 7711P171-60
7	MAY 7731P012-60
8	MAY 7214P007-60
9	MAY 3807F367-80
10	MAY 7407P009-60
11	MAY 7404P061-60
12	MAY 7101P059-60
13	MAY 7101P061-60
14	MAY 7711P402-60
15	WP8312P015-60 Whirlpool Knob Shaft
16	MAY 5700A242-60
17	MAY 7403P034-60
18	MAY 5195A062-60
18	SEE NOTE GROUND WIRE, GREEN
