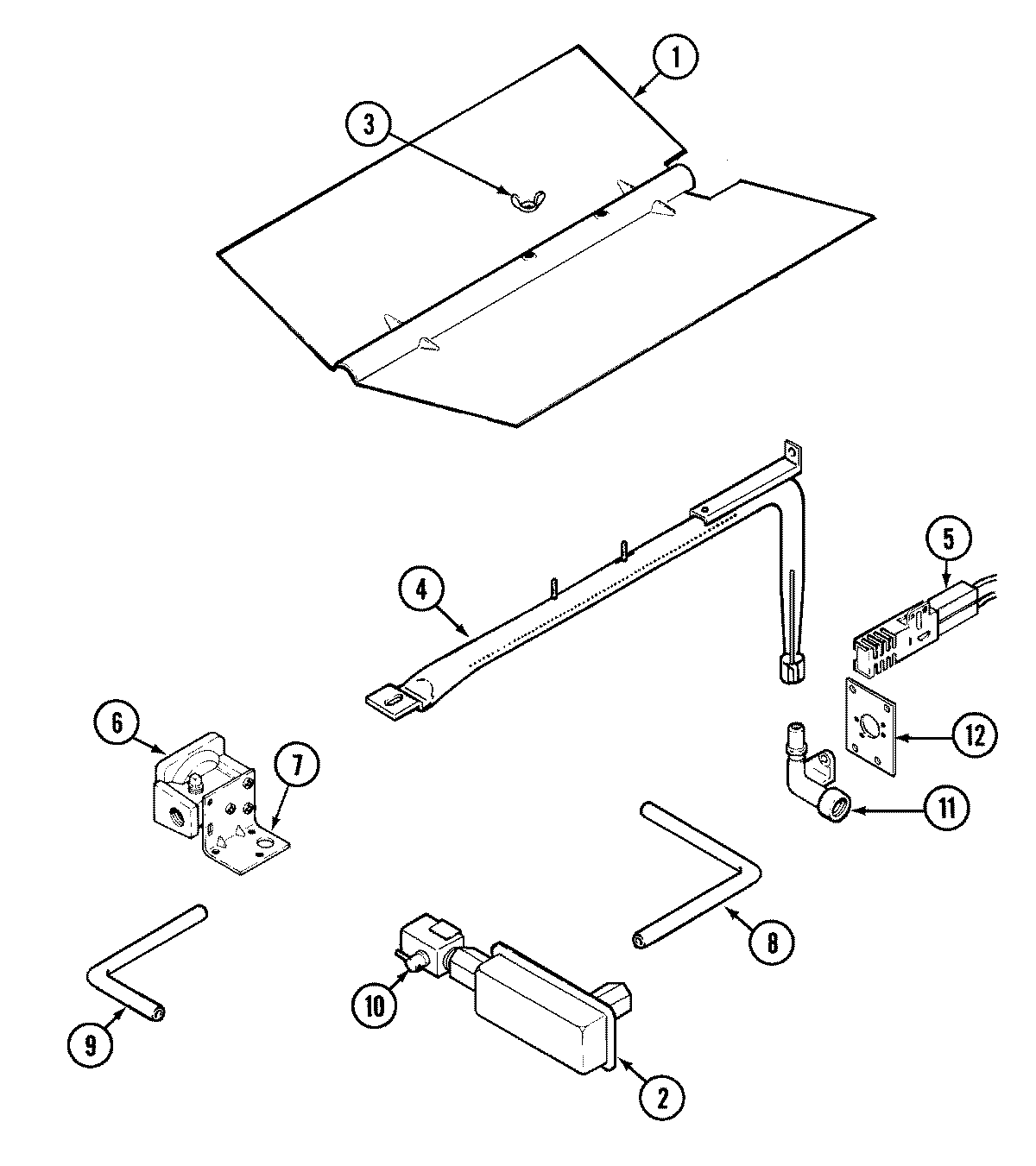

CWG4600AAB 03 – GAS CONTROLS

Products

Position	Product
NI	MAY 8019P004-60
NI	MAY 7111P007-60
1	MAY 3601F215-45
2	MAY 7501P018-60
2	W10080180 Whirlpool Nut
2	MAY 7101P071-60
2	WP7101P072-60 Whirlpool Screw
2	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
3	NUT, WING
4	MAY 3403D030-45
4	SCREW
5	MAY 4005F421-45
5	MAY 7432P076-60
5	MAY 7101P356-60
5	WP3351614 Whirlpool Screw
6	MAY 7510P036-60
6	MAY 7101P074-60
6	MAY 1555251
7	MAY 74001932
8	MAY 3414F039-44
9	MAY 3414F097-44
10	MAY 7502P002-60
11	MAY 7507P008-60
12	MAY 3807F122-34
