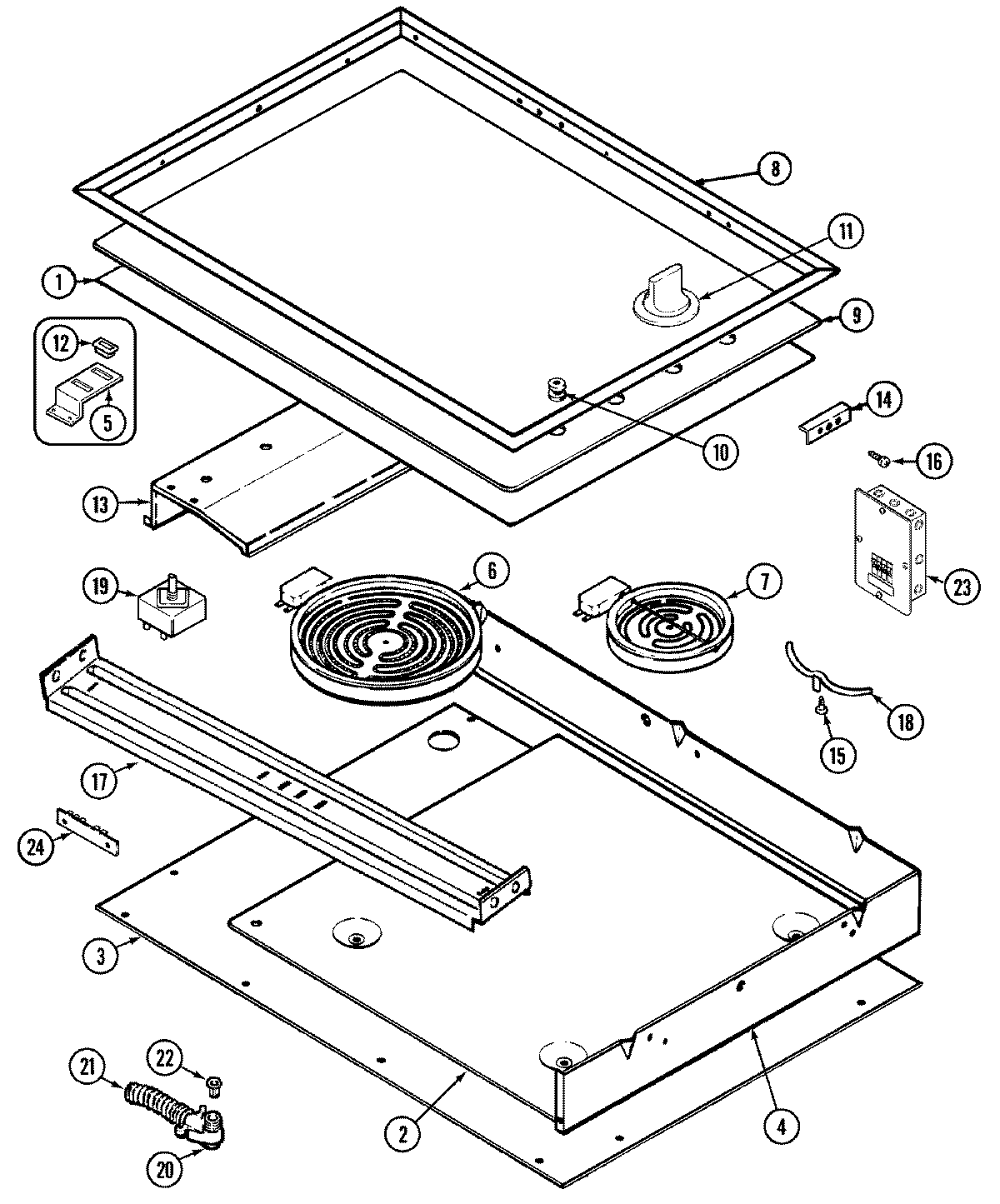

CX8670RB 01 – TOP ASSEMBLY

Products

Position	Product
NI	MAY 8308P002-60
NI	MAY 8112P102-60
NI	WA906B Whirlpool Cooktop Glass Scraper
1	MAY 74001490
2	MAY 3601F173-51
2	MAY 7101P059-60
3	MAY 74001491
4	MAY 74001430
5	MAY 3801F313-45
6	W10823707 Whirlpool Range Radiant Surface Element 8"
6	MAY 12500040
7	W10823704 Whirlpool Range Cooktop Radiant Surface Element 6"
7	MAY 12500041
8	MAY 7746P023-60
9	MAY 74002202
9	MAY 74001497
10	MAY 8008P033-60
11	WP7737P026-60 Whirlpool Knob Switch
12	MAY 74001242
12	MAY 74001241
13	MAY 7118P004-60
13	MAY 7103P071-60
13	MAY 3605F175-45
14	MAY 3804F092-45
14	MAY 74002256
15	SCREW
16	MAY 7101P058-60
17	WP98008545 Whirlpool Screw
17	MAY 74001513
18	MAY 8004P015-60
19	MAY 7403P320-60
19	MAY 7403P322-60
19	SCREW
19	SEAL, GASKET INF. SW.
20	MAY 7417P004-60
21	MAY 3801F072-45
21	MAY 3414F035-44
22	MAY 8018P001-60
22	MAY 8008P017-60
22	MAY 5130A014-60
23	MAY 8028P005-60
24	MAY 7401P015-60
